Preparation For Overhaul
Preparation for OverhaulGENERAL DESCRIPTION
Before disassembling and assembling the transmission, follow the following procedures to prepare.
PROCEDURE

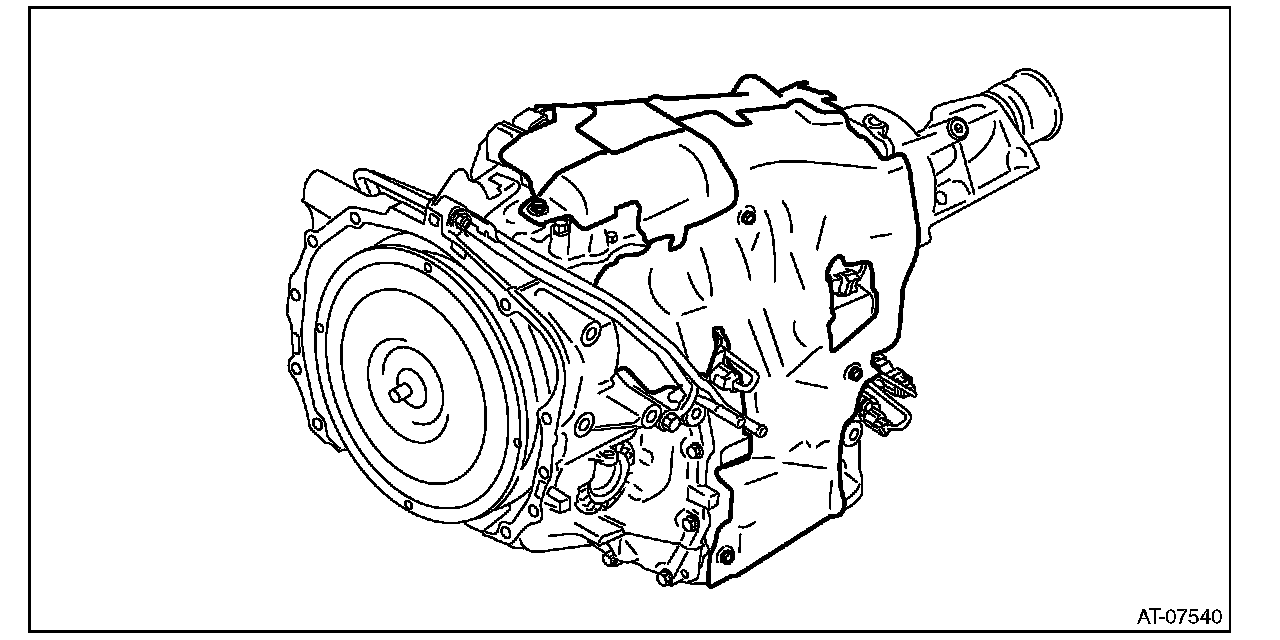

1) Clean the transmission exterior.

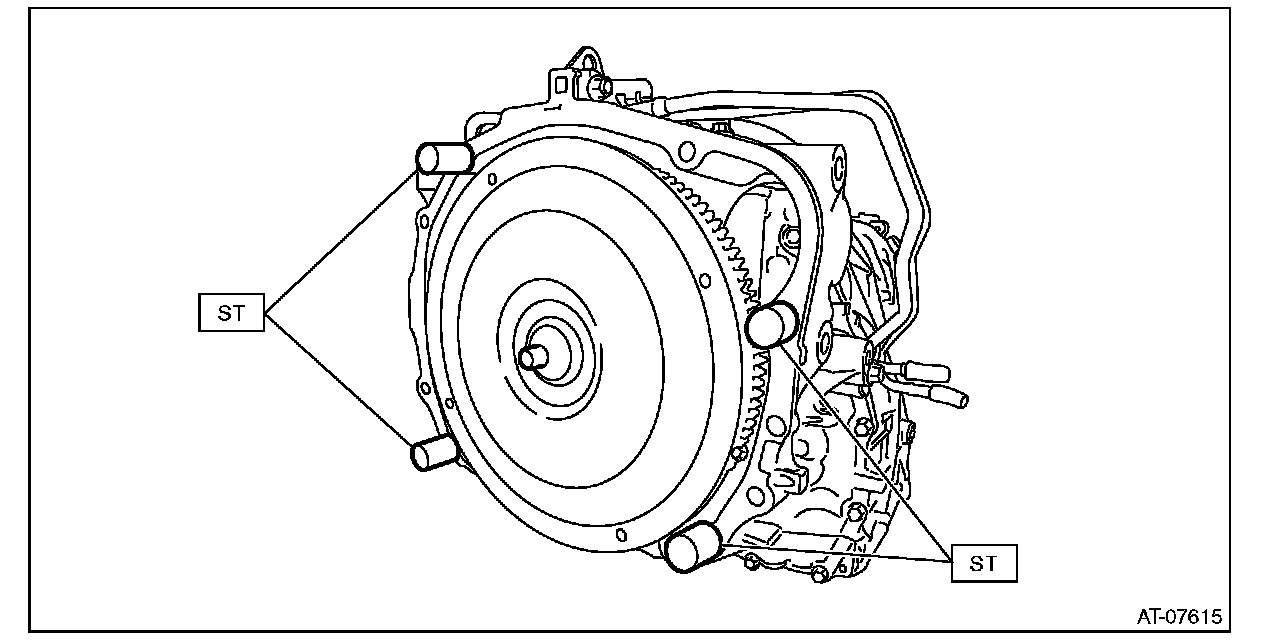

2) Attach the ST on the transmission.
ST 18632AA000 STAND ASSY
3) Remove the torque converter assembly.
4) Remove the transmission case cover on the transmission upper side.
NOTE:
Install using the following tightening torque.
Tightening torque:
8 Nm (0.8 kgf-m, 5.9 ft-lb)
5) Place the transmission assembly on end.

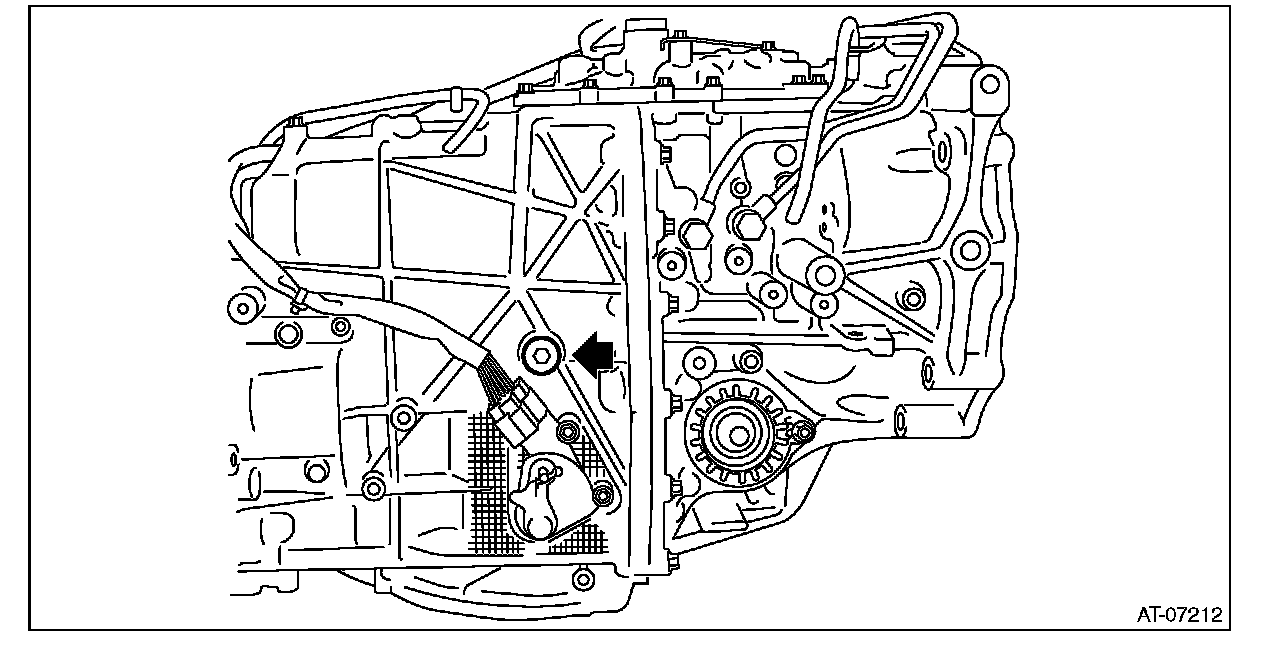

6) When completely overhauling the transmission, refill approx. 10 L (2.6 US qt, 8.8 Imp qt) of CVTF through the transmission right side plug, and install the plug. Finally, install the transmission case cover.
CAUTION:
Always use specified CVTF. Using other fluid will cause malfunction.
NOTE:
Use a new gasket.
Tightening torque:
50 Nm (5.1 kgf-m, 36.9 ft-lb)
