AWD Transfer System: Construction

WARNING: This page is about a different car, the 2013 Subaru Forester, 2012 Subaru Forester, 2011 Subaru Forester, and 2010 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

The transfer clutch drum and rear drive shaft are joined to each other by welding. The rear drive shaft is provided with oil passages for transfer clutch control.

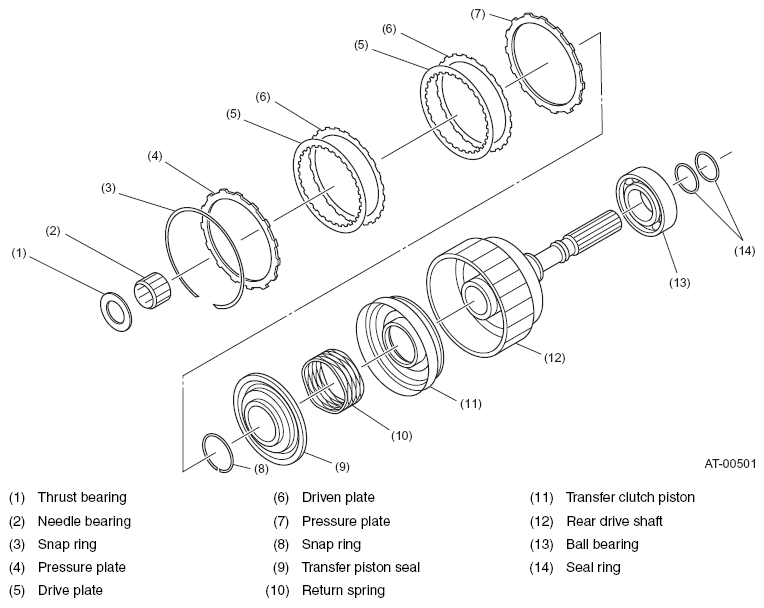

Fig 1: Disassembled View Of AWD Transfer System
G08260923Courtesy of SUBARU OF AMERICA, INC.
