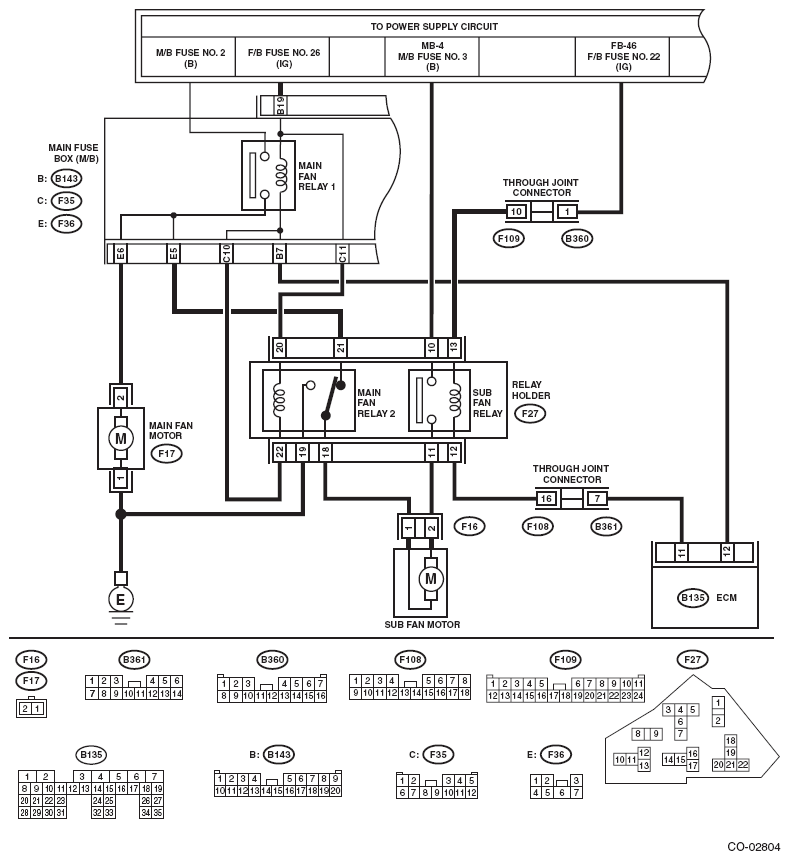

Radiator Fan System: Wiring Diagram
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Fan System < Refer to
SYSTEM WIRING DIAGRAM. >
