CVTF Cooler Pipe And Hose

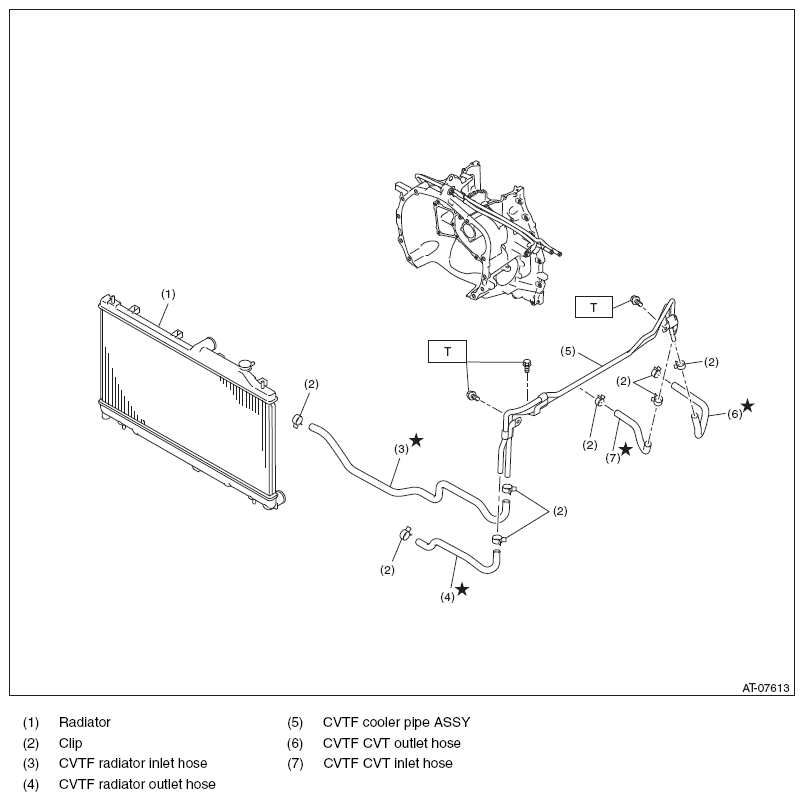

Fig 1: CVTF Cooler Pipe And Hose Replacement Components With Torque Specifications
G08578533Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
