Conditions For Abs Sequence Control

NOTE: The control operation starts at point A.

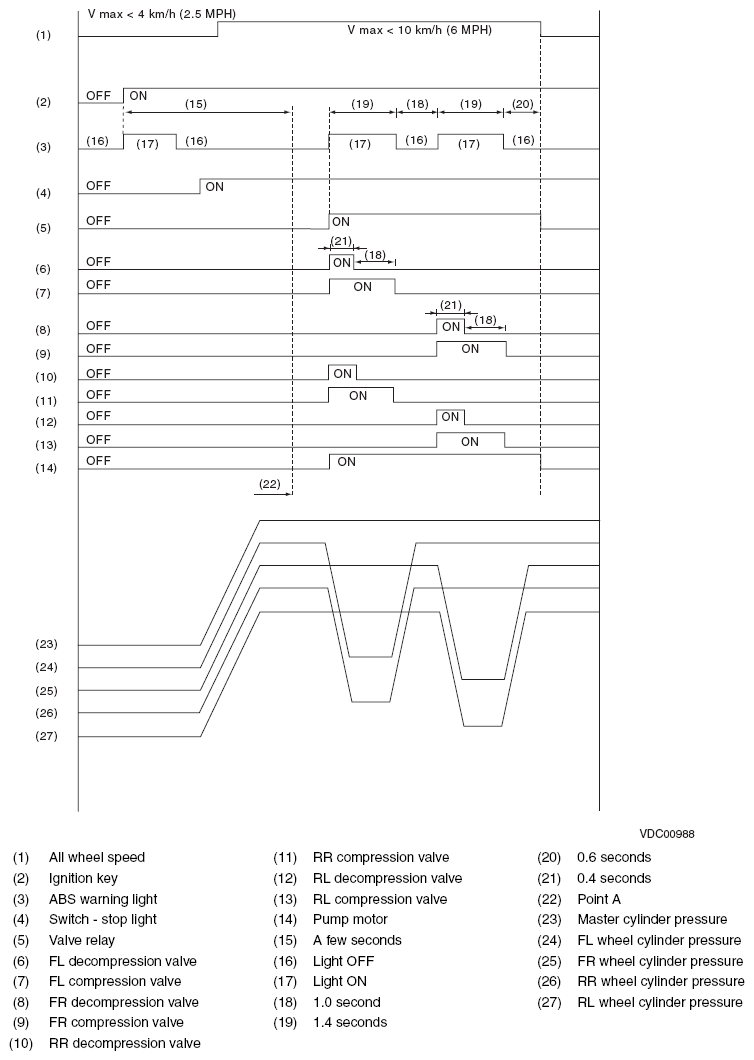

Fig 1: ABS Sequence Control Operation Waveforms
G08551441Courtesy of SUBARU OF AMERICA, INC.
