Reduction Drive Gear: Installation

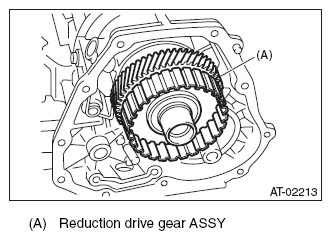

- Install the reduction drive gear assembly.
NOTE:
Press-fit it to the bottom of bearing shoulder completely.
Courtesy of SUBARU OF AMERICA, INC.
- Install the reduction driven gear. < Refer to
INSTALLATION , Reduction Driven Gear. >
- Connect the transmission case with the extension case. < Refer to
INSTALLATION , Extension Case. >
- Install the transmission assembly to the vehicle. < Refer to
INSTALLATION , Automatic Transmission Assembly. >
