Non-Turbo Model
Remove the transmission assembly from the vehicle. < Refer to
REMOVAL , Automatic Transmission Assembly. >
Use the ST to lock the crankshaft, and remove the drive plate.
ST 498497300 CRANKSHAFT STOPPER

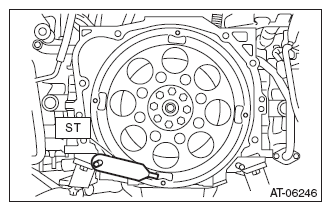

Fig 1: Locking Crankshaft Using Special Tool (Non-Turbo Model)
