Conditions For VDC Sequence Control

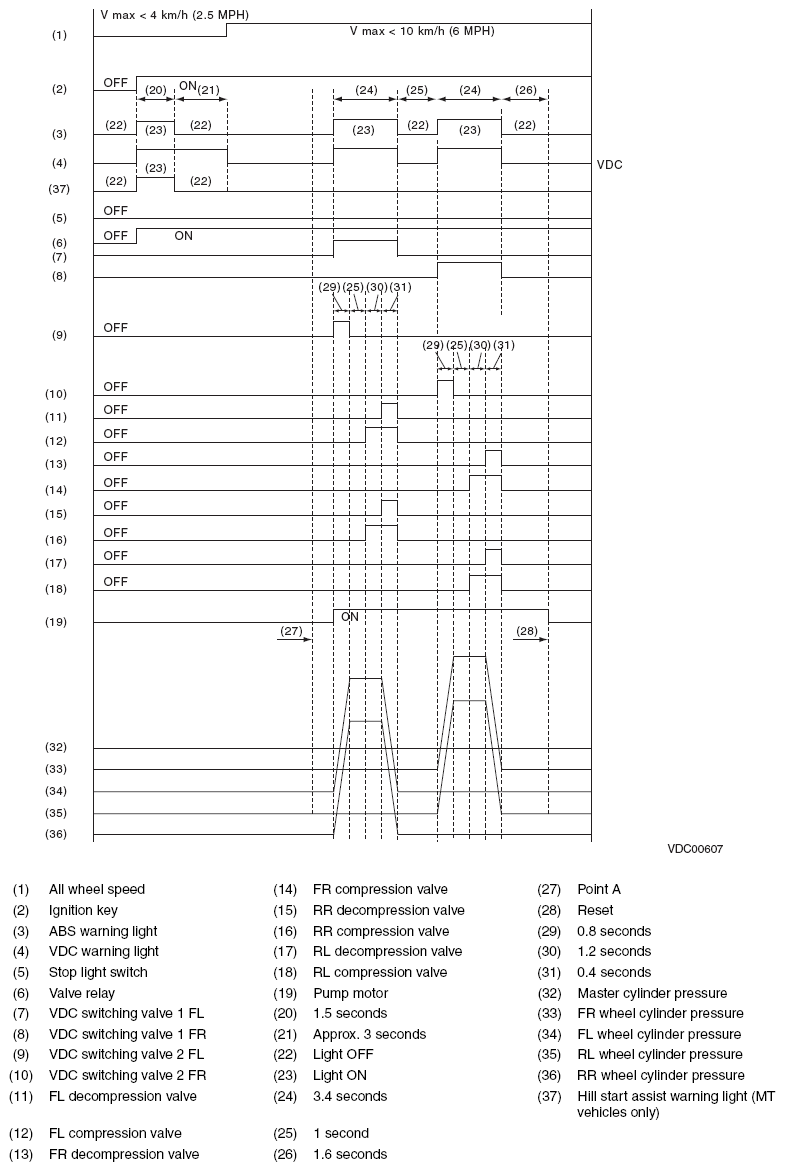

Fig 1: VDC Sequence Control Condition Pattern
G08565562Courtesy of SUBARU OF AMERICA, INC.
NOTE: The control operation starts at point A.
