Yaw Rate & G Sensor

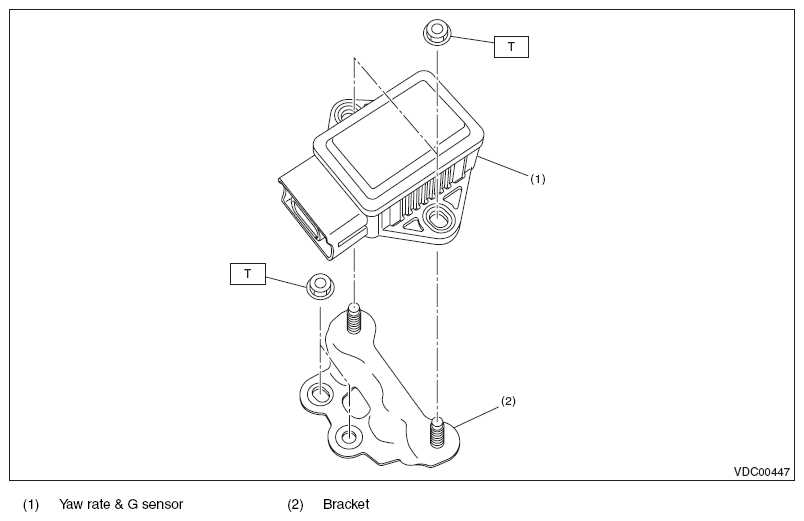

Fig 1: Identifying Yaw Rate & G Sensor And Bracket
G08565543Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
