Front ABS Wheel Speed Sensor: Removal
- Disconnect the ground cable from battery.

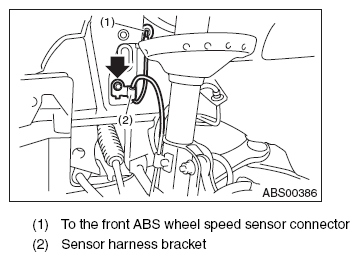

- Disconnect the ABS wheel speed sensor connector located next to the front strut mounting house in the engine compartment.
- Remove the bolts and then remove the sensor harness bracket.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the bolts which secure the sensor harness to the front strut.
- Remove the bolts, and remove the front ABS wheel speed sensor from the front housing.
CAUTION:
- Be careful not to damage the sensor.
- Do not apply excessive force to the sensor harness.
Courtesy of SUBARU OF AMERICA, INC.
