BRZ Premium, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Intake System / Exhaust System
>>
Exhaust pipe assembly (FA20)
>>
Exploded view
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded view

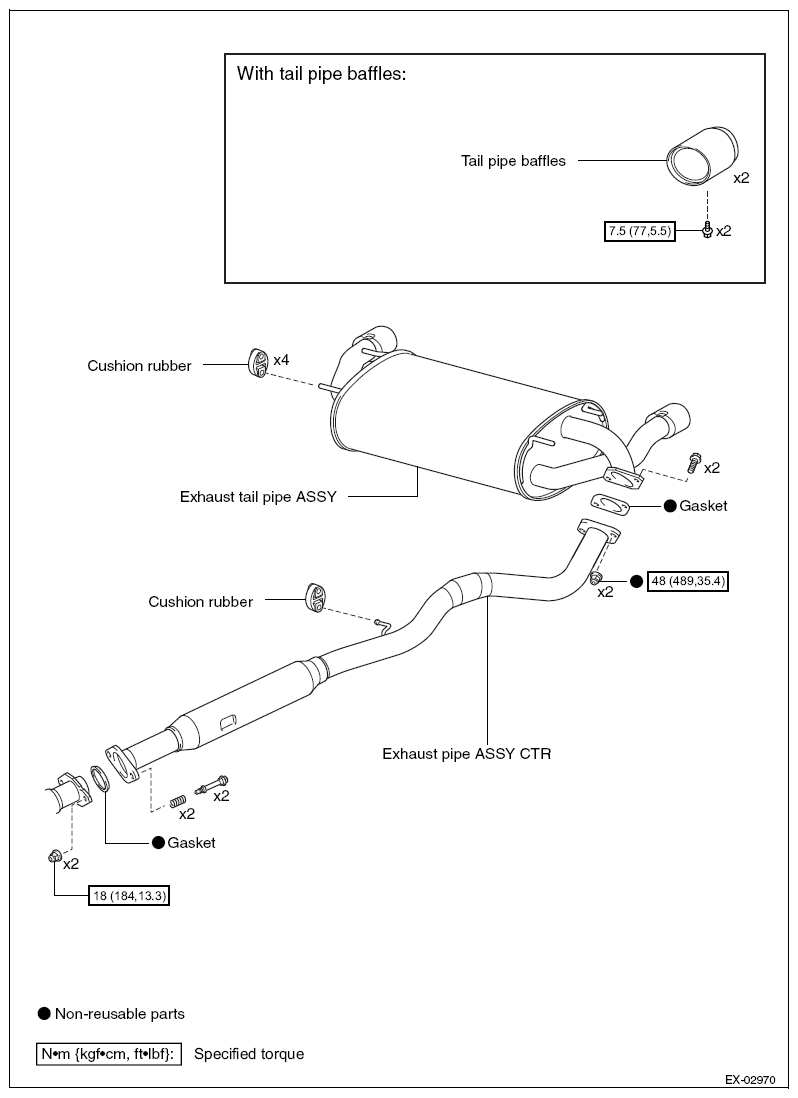

Fig 1: Exploded View Of Exhaust Pipe assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Exhaust Pipe assembly With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
