Subaru
>>
2013
>>
BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Service Information)
>>
Circuit figure
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit figure

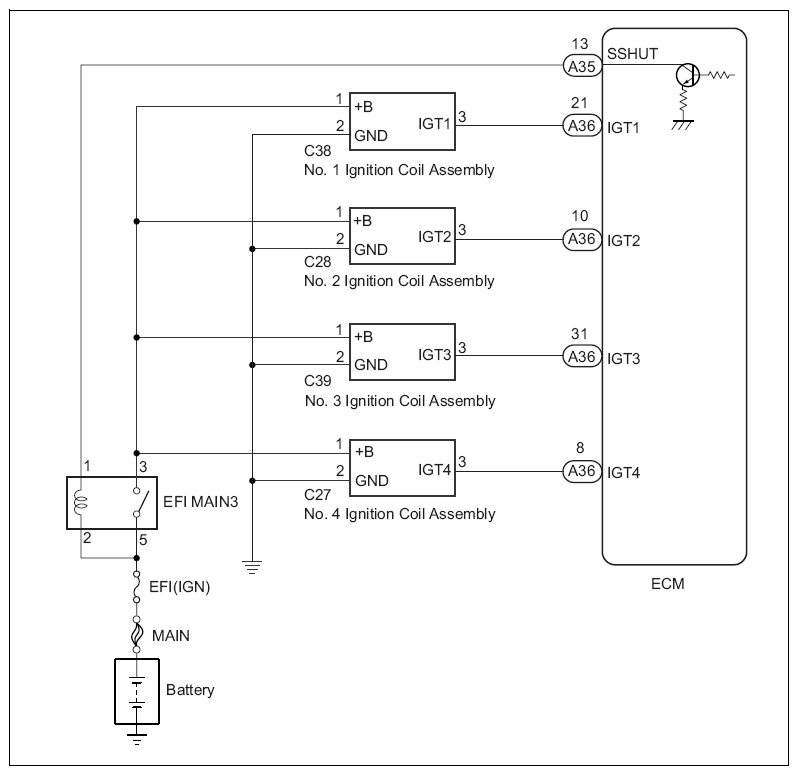

Fig 1: Ignition System - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
