Removal

Removal

CAUTION:
Do not install any power steering computer ASSY that is designed to be used with other vehicles (such as demonstration models).

1. Correct handling and precautions for operation
2. Remove the instrument panel junction block ASSY





3. Remove the power steering computer ASSY.

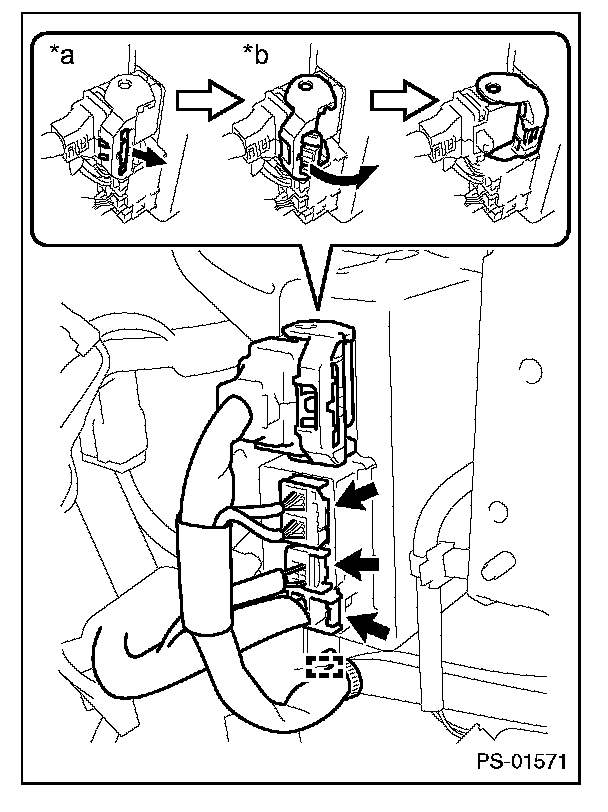

(1) Disconnect the connector from the power steering computer ASSY.

Captions in illustration





NOTE:
As shown in the figure, after pulling out the lock for the lock lever, fold down the lock lever and remove the connector.

(2) Disconnect the wiring harness clamp from the power steering computer bracket.
(3) Disconnect the three connectors from the power steering computer ASSY.





(4) Undo the two bolts, release the clamp, and take off the power steering computer ASSY.





4. Remove the power steering computer bracket.
(1) Undo the four screws and take off the power steering computer bracket.
