At Front Differential Gear Oil

CAUTION: If the differential gear oil is spilt over exhaust pipe, wipe it off with cloth to avoid emitting smoke or causing a fire.

Check that the AT front differential gear oil level is normal. If the amount of oil is insufficient, check that no leaks are found. Then, add the necessary amount of the specified AT front differential gear oil.

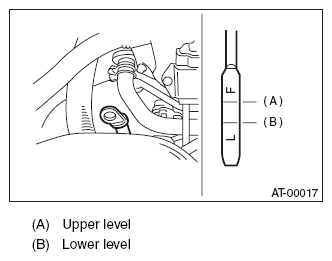

Fig 1: Checking AT Front Differential Gear Oil Level
G07911366Courtesy of SUBARU OF AMERICA, INC.
