Communication For Initializing Impossible

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DETECTING CONDITION:
Defective harness connector

TROUBLE SYMPTOM:
Communication is impossible between the TPMS & keyless entry control module and the Subaru Select Monitor.

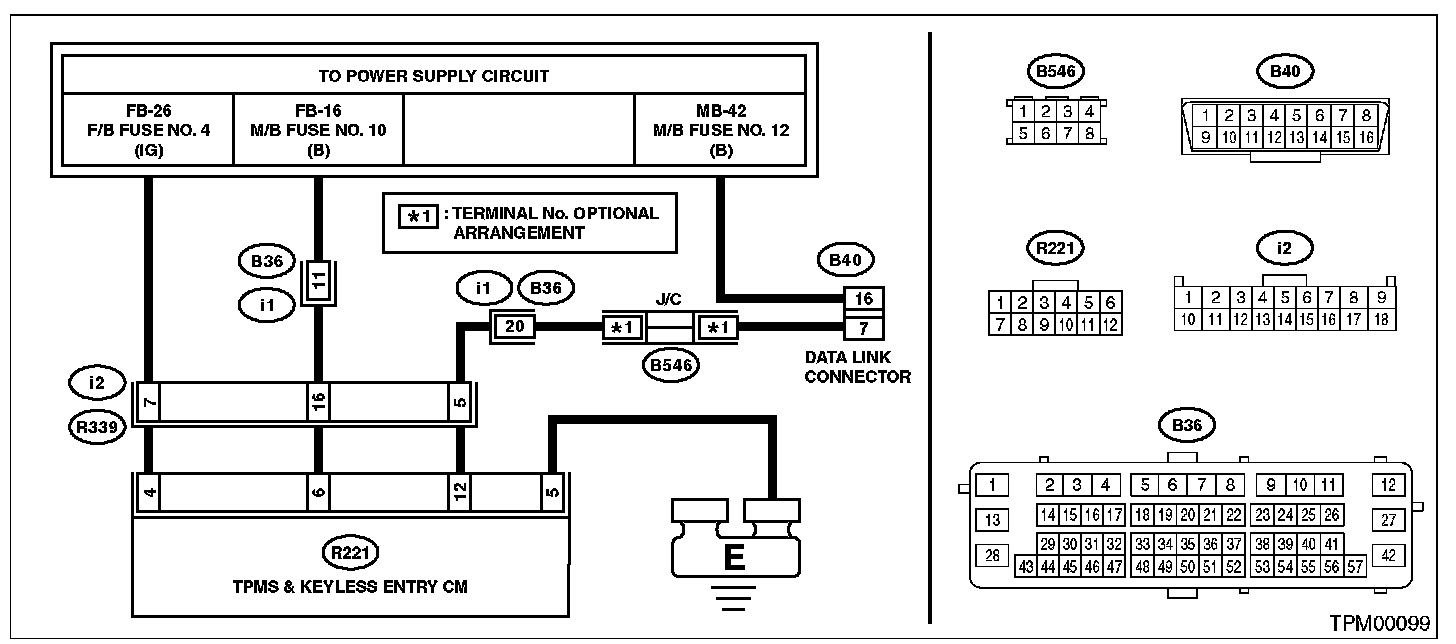

WIRING DIAGRAM:
