Transfer Case

Remove the interlock plate.
NOTE: Do not remove the interlock plate mounting bolt if the parts are assembled as a transmission assembly. Do not attempt to replace the interlock plate unless necessary. Do not reuse the bolts and gaskets once they are removed.

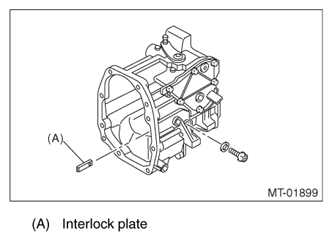

Fig 1: Identifying Interlock Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift link assembly. Refer to Shift Link Assembly .
