Transfer Case

Install the shift link assembly to the transfer case. Refer to Shift Link Assembly .
Install the interlock plate to the transfer case.
NOTE:
- Use a new bolt and gasket.
- Before installing the interlock plate, clean the screw threads.
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

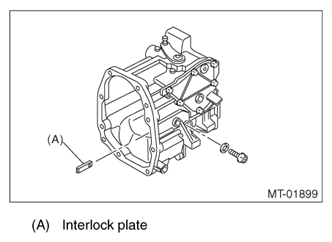

Fig 1: Identifying Interlock Plate
Courtesy of SUBARU OF AMERICA, INC.
