Front Ball Joint: Removal
- Lift up the vehicle, and then remove the front wheels.
- Remove the left and right stabilizer brackets.
Courtesy of SUBARU OF AMERICA, INC.

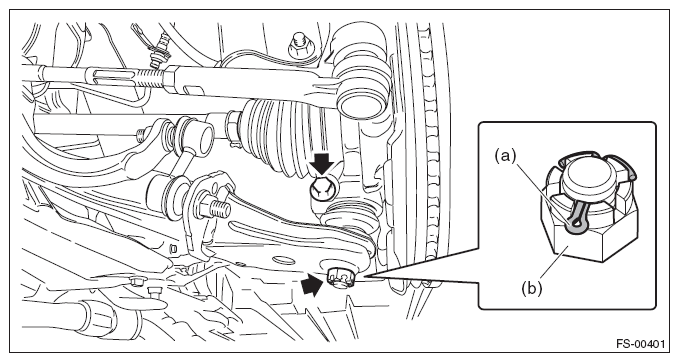

- Remove the ball joint.
- Extract the cotter pin (a) from the ball stud.
- Remove the castle nut (b).
- Extract the ball stud from the front arm.
- Remove the bolt securing the ball joint to the front axle housing.
Courtesy of SUBARU OF AMERICA, INC.
- Extract the ball joint from the front axle housing.
