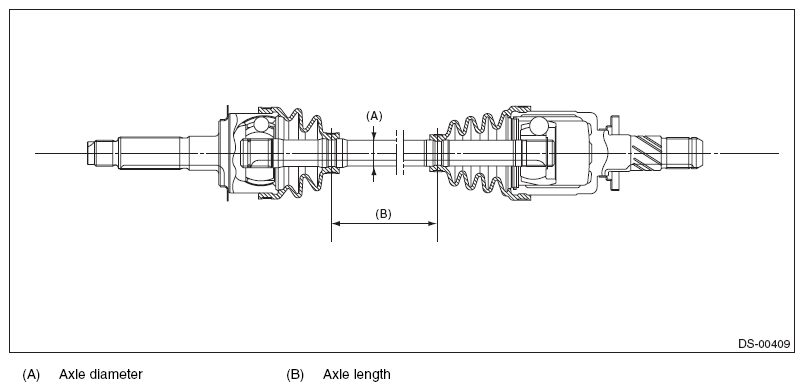

Rear Drive Shaft Assembly
| Model |
Type of drive shaft |
Axle diameter ø mm (in) |
Axle length mm (in) |
| Sedan CVT |
BJ + DOJ |
22 (0.87) |
400.6 (15.77) |
| Other than above |
EBJ + DOJ |
22 (0.87) |
394.3 (15.52) |
Courtesy of SUBARU OF AMERICA, INC.
