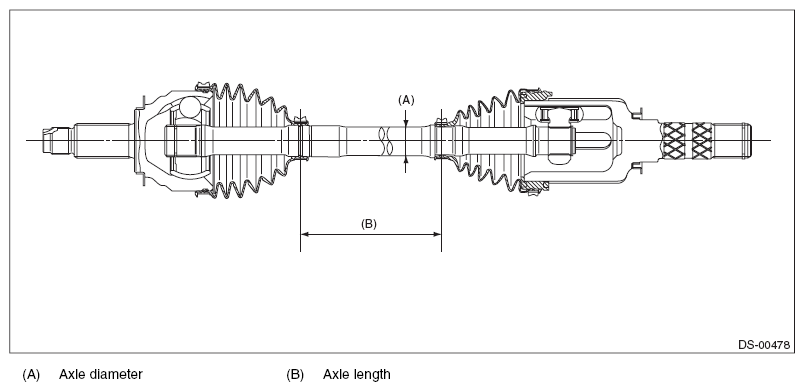

Front Drive Shaft Assembly
| Model |
Type of drive shaft |
Axle diameter ø mm (in) |
Axle length mm (in) |
| All models |
AC + AAR |
22.67 (0.89) |
352.4 (13.87) |
Courtesy of SUBARU OF AMERICA, INC.
