Front Hood Lock Assembly: Removal

  1. Open the front hood.
  2. Remove the front bumper face. Refer to FRONT BUMPER .
  3. Remove the clips and remove the air intake duct.

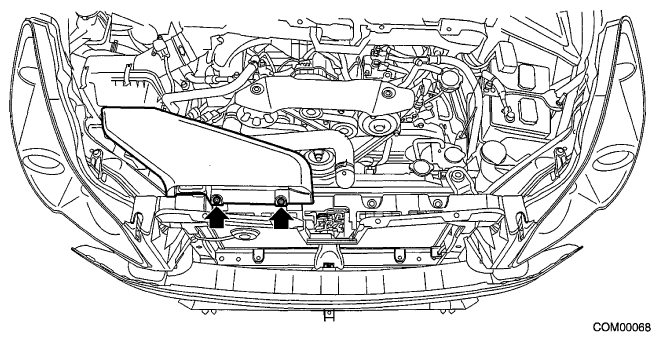

    Fig 1: Locating Air Intake Duct And Clips
    G06653164Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the clips and remove the grille bracket.

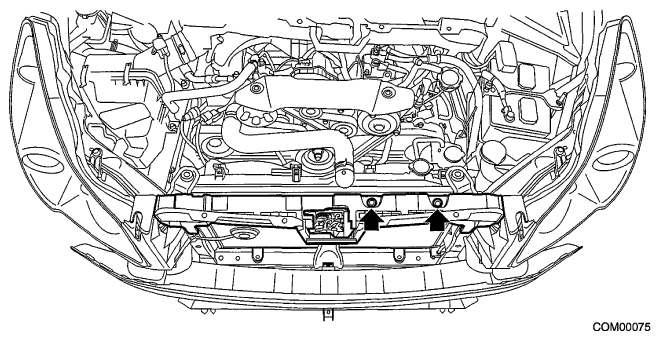

    Fig 2: Locating Grille Bracket And Clips
    G06653673Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the front hood lock assembly.
    1. Remove the bolt.

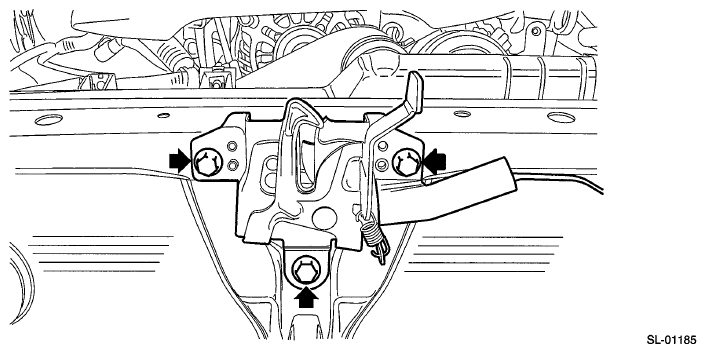

      Fig 3: Locating Front Hood Lock Assembly Bolts
      G06653917Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the release cable, and detach the front hood lock assembly.

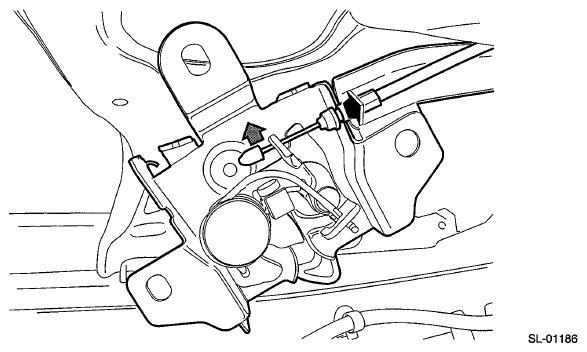

      Fig 4: Detaching Front Hood Lock Assembly
      G06653918Courtesy of SUBARU OF AMERICA, INC.
