Body Integrated Unit: Removal
- Disconnect the ground cable from battery.
- Remove the instrument panel lower cover. Refer to INSTRUMENT PANEL LOWER COVER
.
- Remove the body integrated unit.
CAUTION:
Be careful to keep water and other foreign materials away from body integrated unit.

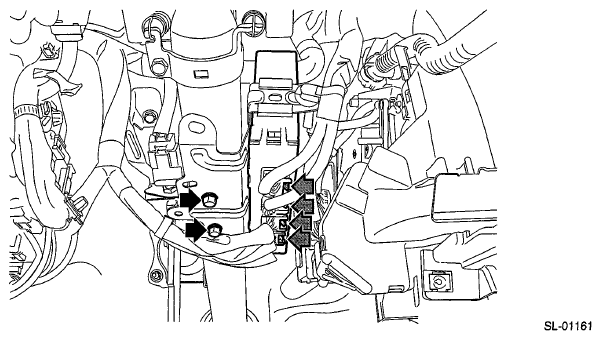

- Remove the harness clip and connector.
- Remove the bolts, and remove the body integrated unit.
Courtesy of SUBARU OF AMERICA, INC.
