Section 26 (Vehicle Dynamics Control (VDC) Diagnostics): Electrical Component Location: Location

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

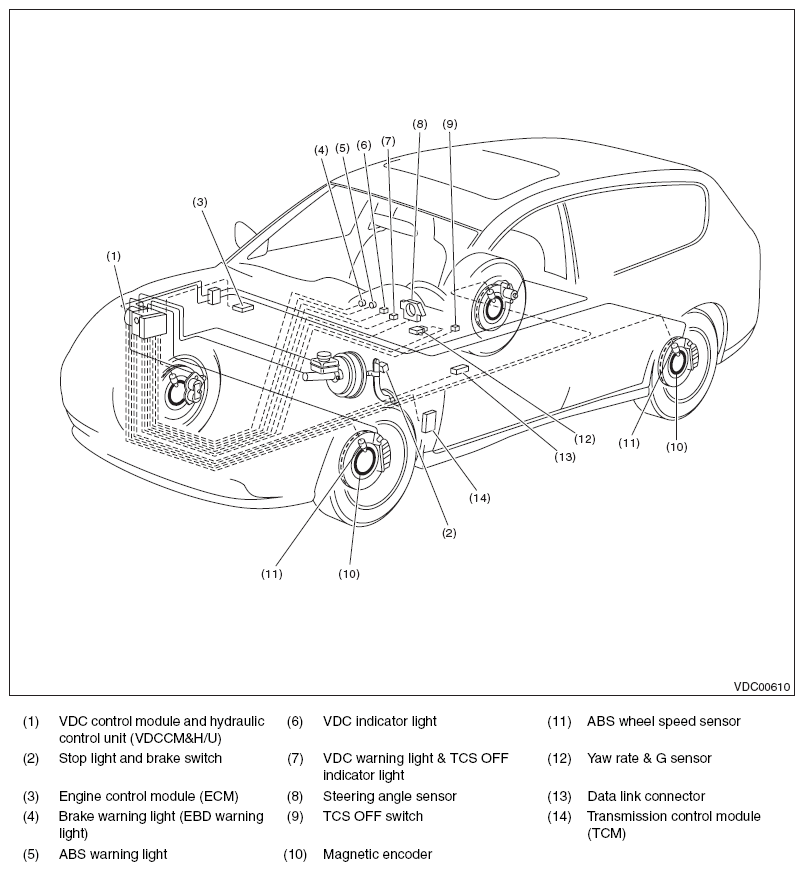

Fig 1: Identifying Electrical Component Location
G07917303Courtesy of SUBARU OF AMERICA, INC.

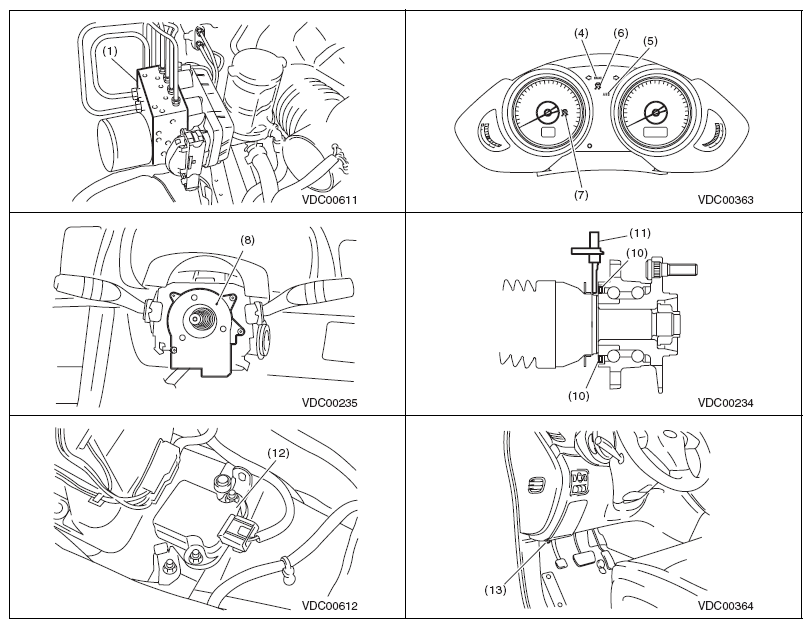

Fig 2: Identifying Electrical Component Location Layout
G07917304Courtesy of SUBARU OF AMERICA, INC.
