Water Pump

WARNING: This page is about a different variant/trim than selected.

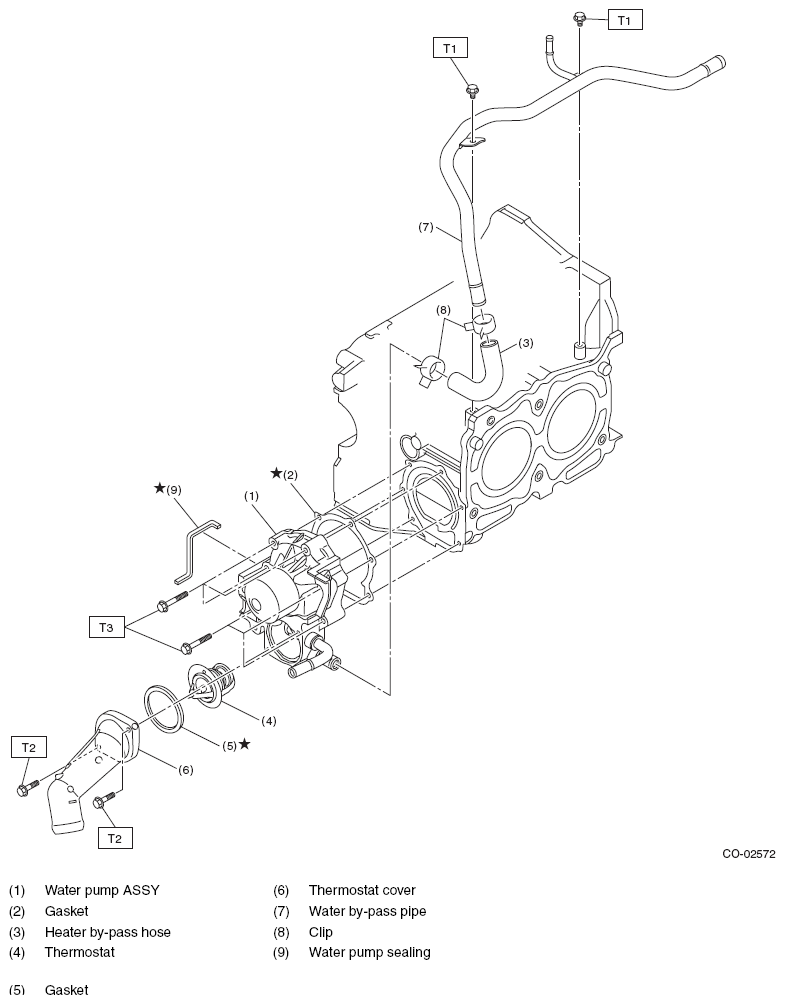

Fig 1: Exploded View Of Water Pump Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 9 (0.9, 6.6)

T3: First 12 (1.2, 8.9)

Second 12 (1.2, 8.9)
