Main Relay: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G07681745Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the main relay from the relay block on the back side of the glove box.

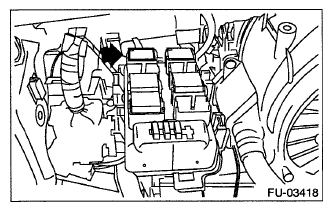

    Fig 2: Locating Main Relay Of Relay Block
    G07681746Courtesy of SUBARU OF AMERICA, INC.
