Vehicle Dynamics Control System (WRX-STI)
>>
VDC Sequence Control
>>
Operation
>>
Conditions For VDC Sequence Control
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Conditions For VDC Sequence Control

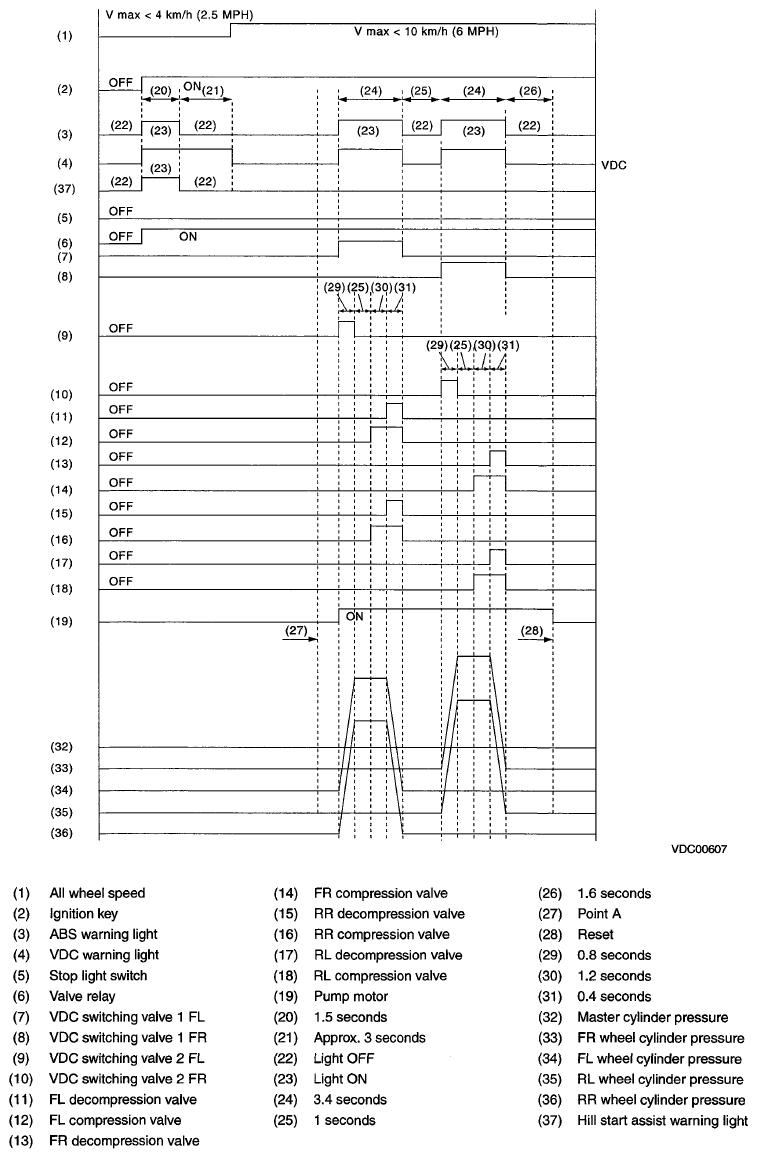

Fig 1: VDC Sequence Control Timing Chart
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
The control operation starts at point A.
Courtesy of SUBARU OF AMERICA, INC.
