Procedures

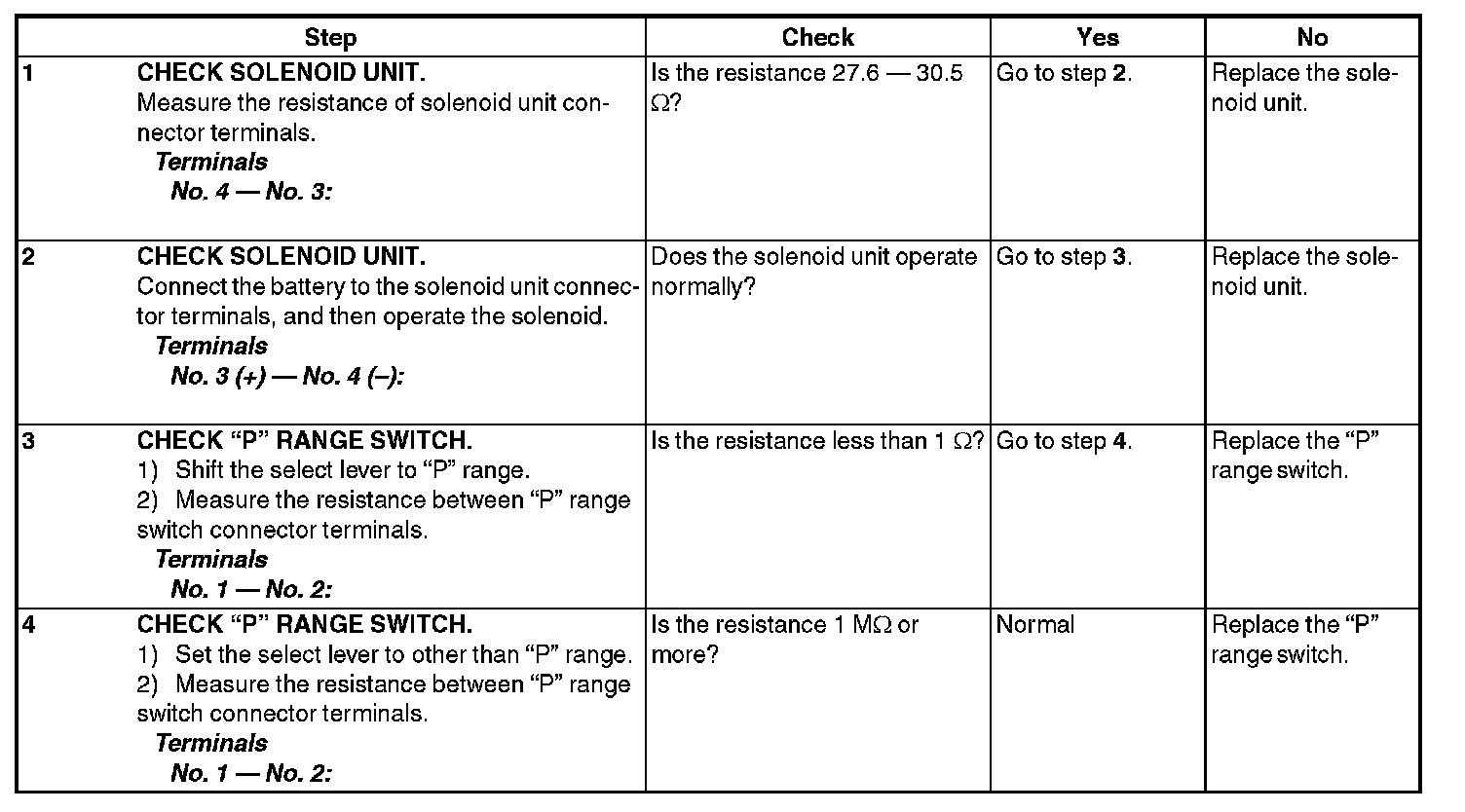

INSPECTION





Body Integrated Unit

NOTE

Refer to "Body Integrated Unit" for removal and installation procedure.
