Flex Plate

Drive Plate

Tighten the drive plate mounting bolt 30 Nm (3.1 kgf-m, 22.1 ft-lb)

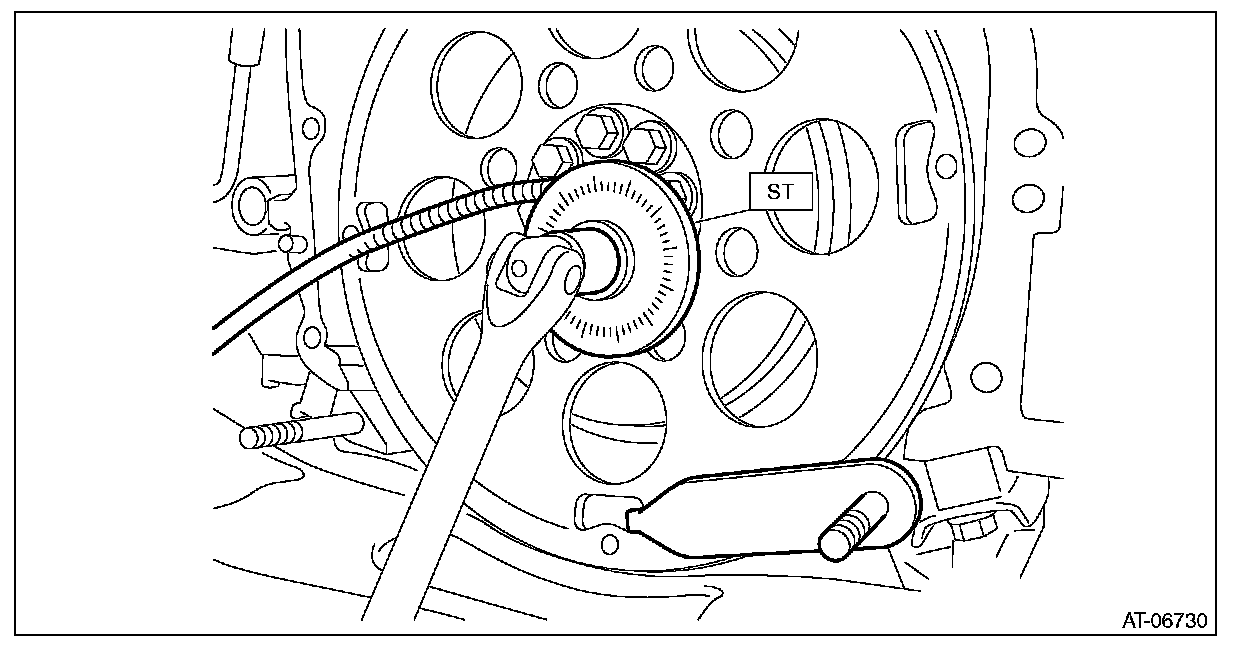

Tighten the drive plate mounting bolts to the specified angle 30° - 35°
