Seat Belt Systems

General Description

COMPONENT

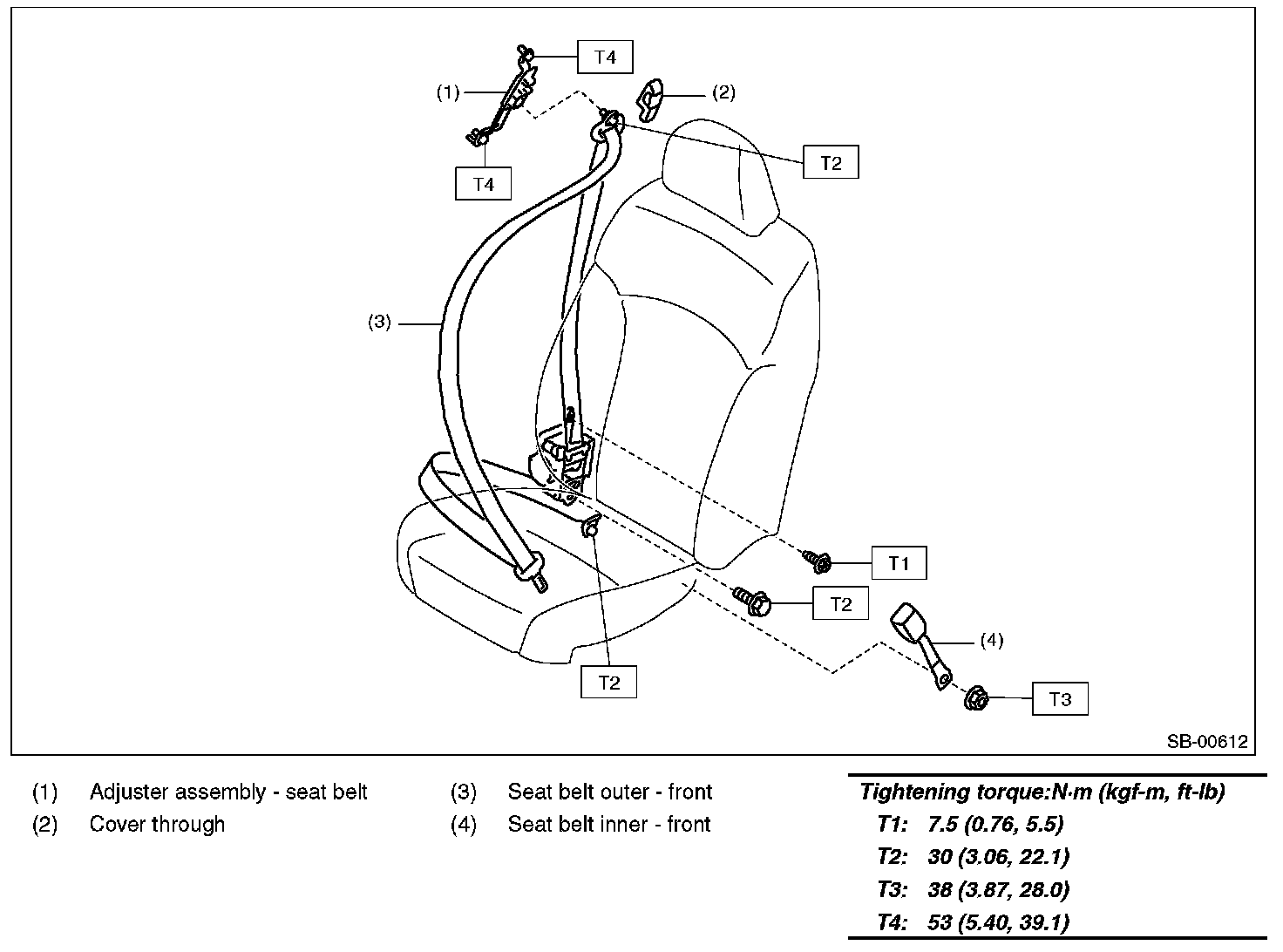

1. FRONT SEAT BELT

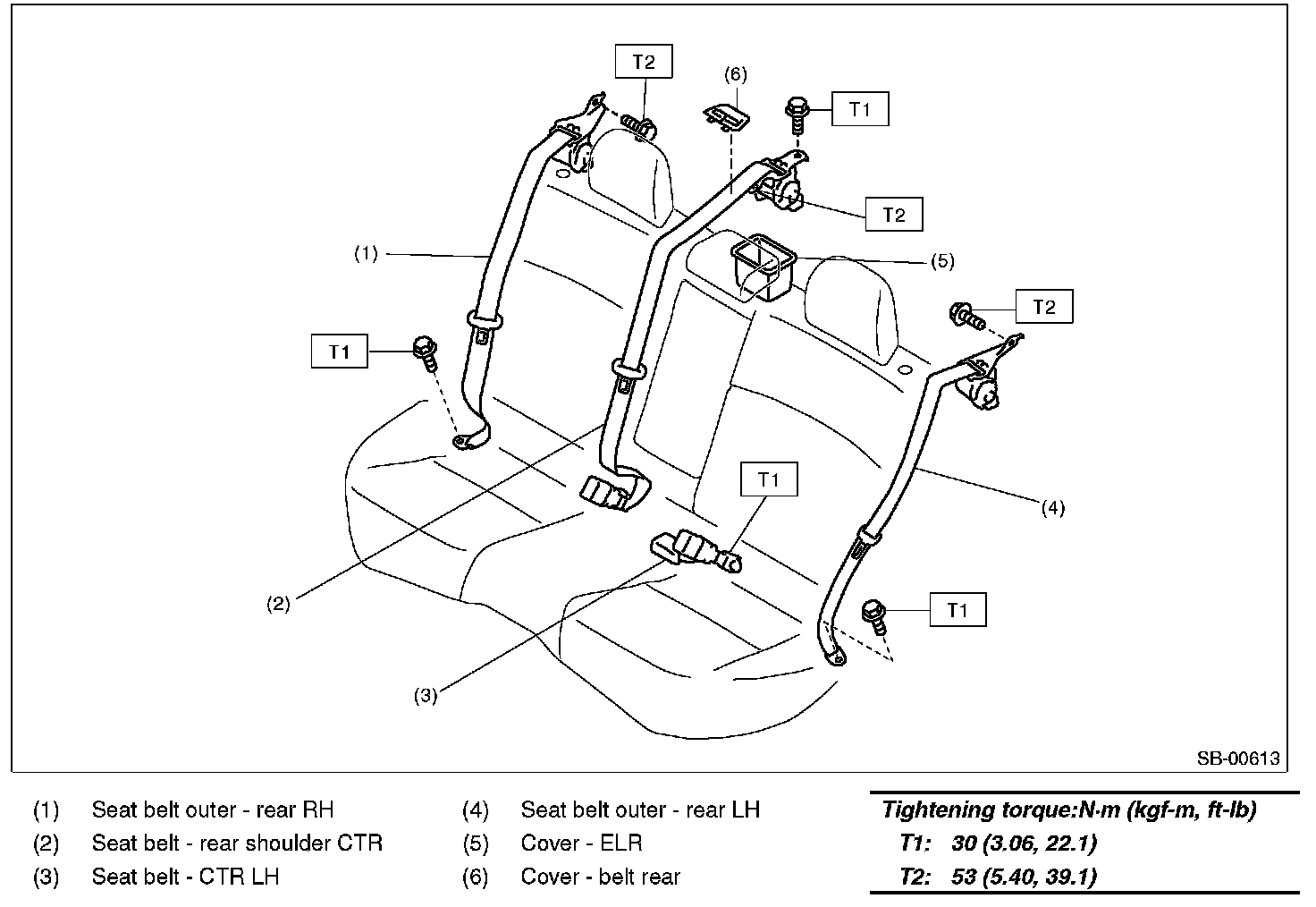

2. REAR SEAT BELT (4 DOOR MODEL)

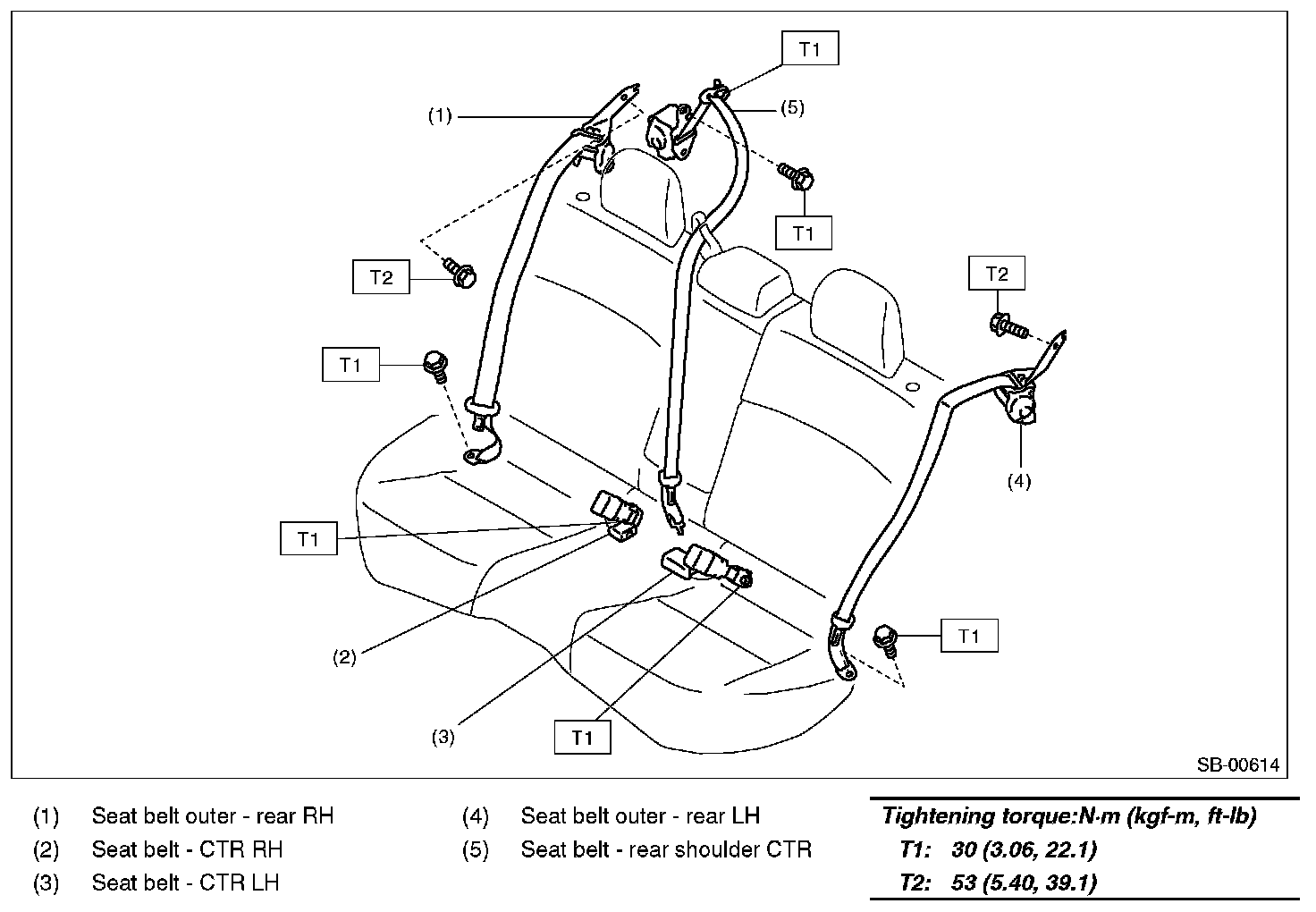

3. REAR SEAT BELT (5 DOOR MODEL)
