Alarm Module: Service and Repair

Security Control Module

REMOVAL

1. Remove the heater and cooling unit assembly.

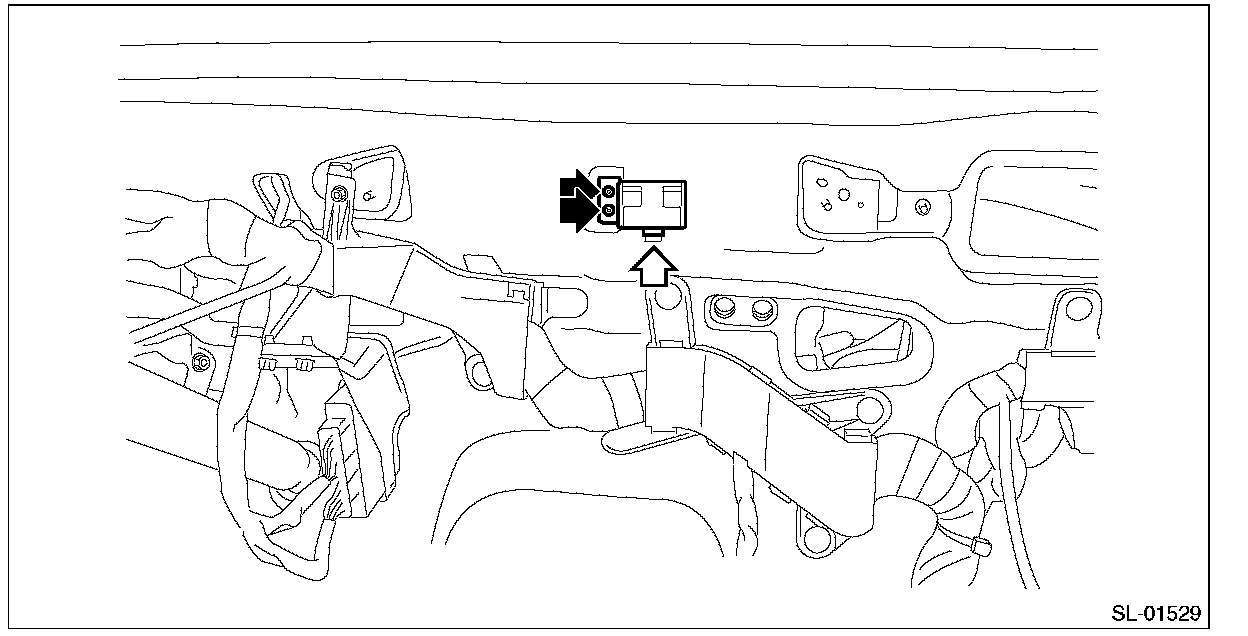

2. Remove the security control module.
1. Disconnect the connector.
2. Remove the nuts, and remove the security control module.






INSTALLATION

Install each part in the reverse order of removal.

NOTE: Refer to "INSTALLATION" of "Heater and Cooling Unit".

Tightening torque:
Security control module: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
