Throttle Body

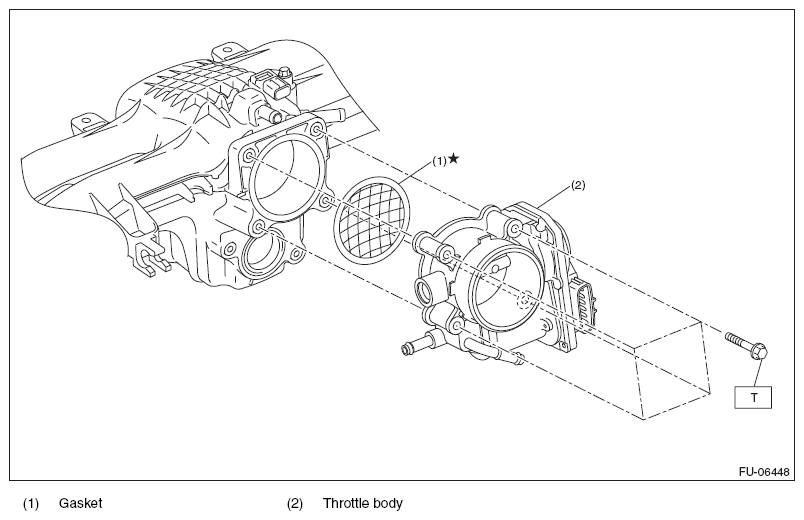

Fig 1: Throttle Body And Gasket With Torque Specifications
G08315313Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
