Intake Manifold 2

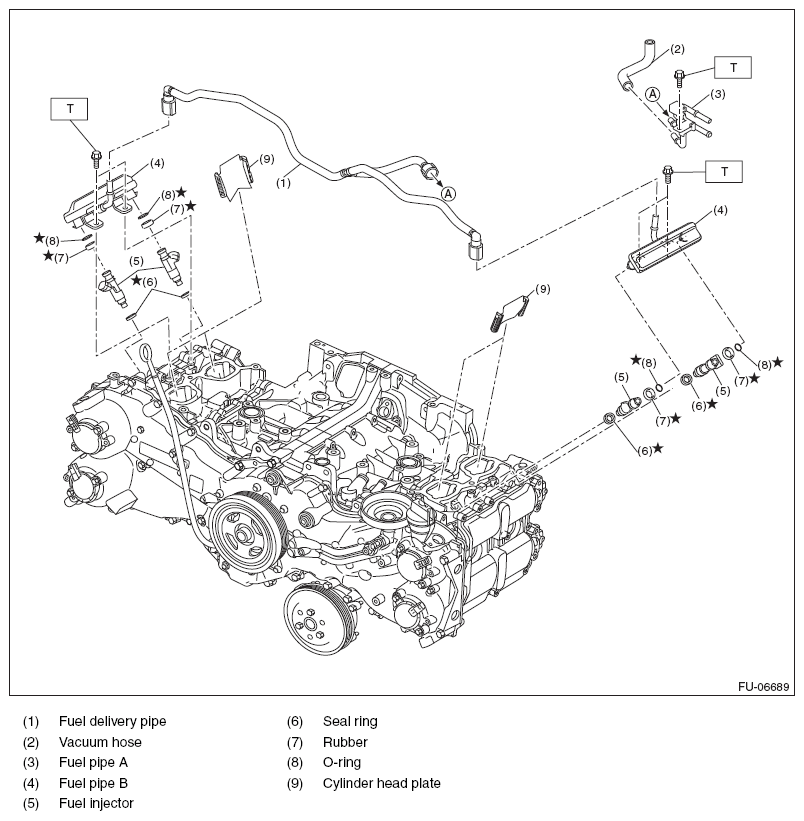

Fig 1: Exploded View Of Intake Manifold 2 With Torque Specifications
G08315312Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6.4 (0.7, 4.7)
