Control Module

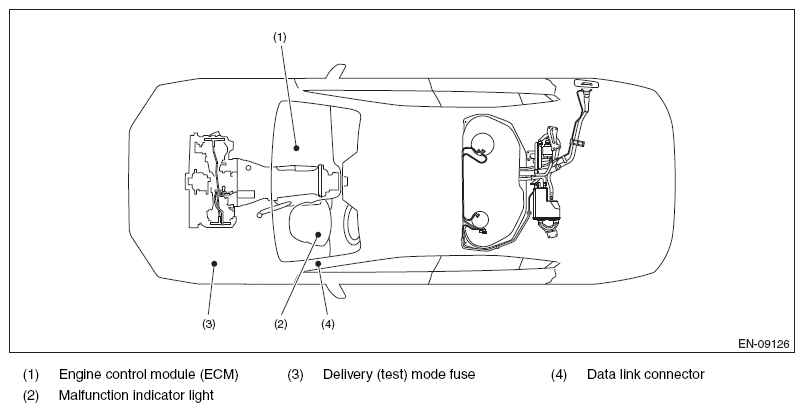

Fig 1: Electrical Control Module Components Location (1 Of 2)
G08315863Courtesy of ABLE BODY CORP.

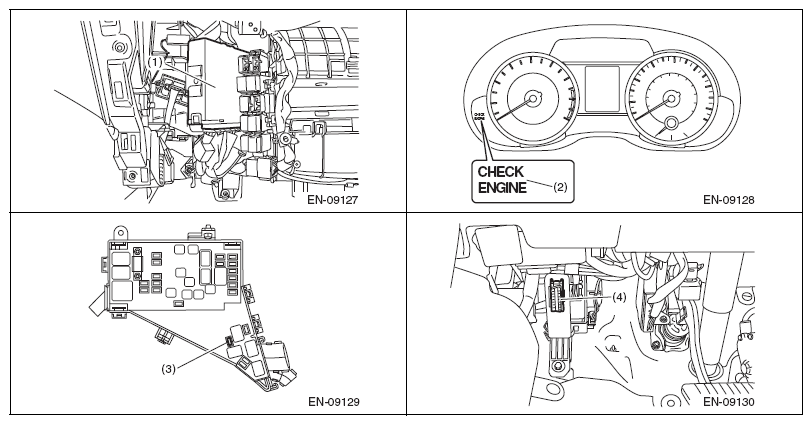

Fig 2: Electrical Control Module Components Location (2 Of 2)
G08315864Courtesy of ABLE BODY CORP.
