Mode 6 Data

General Scan Tool

MODE $06

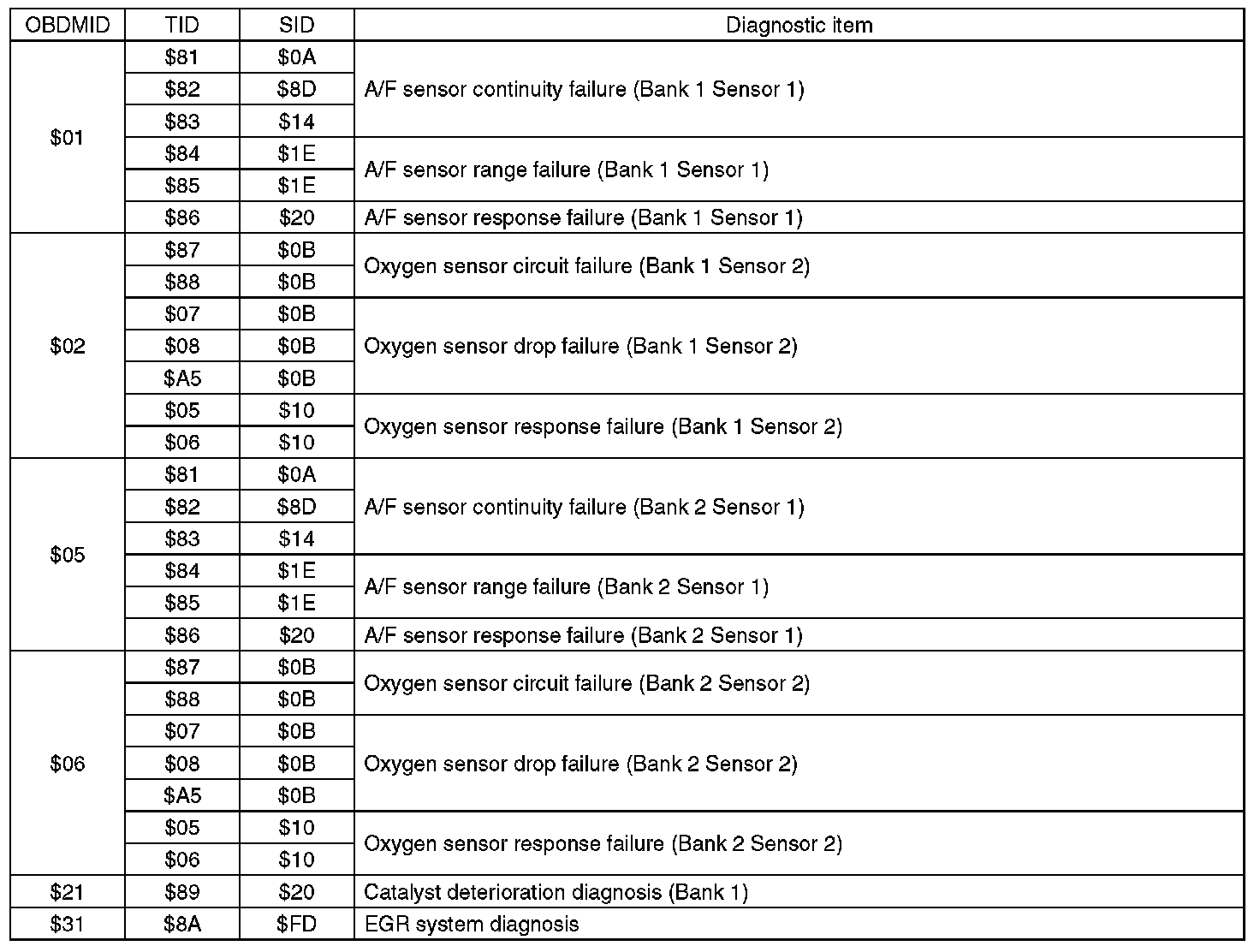

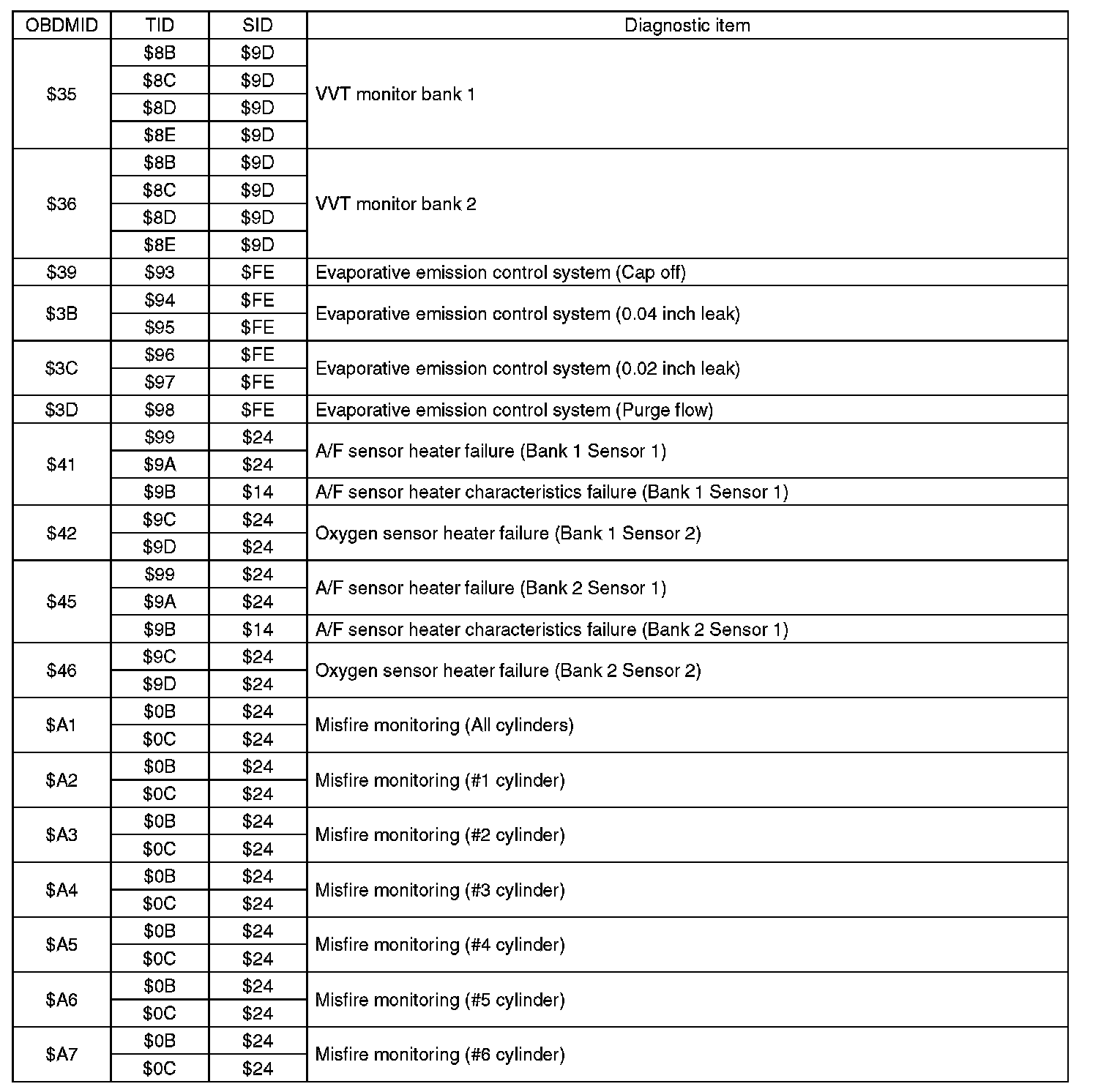

Refer to test value of troubleshooting and data of test limit indicated on the support data bit sequence table. A list of the support data is shown in the following table.
