System Diagram

COMPONENT

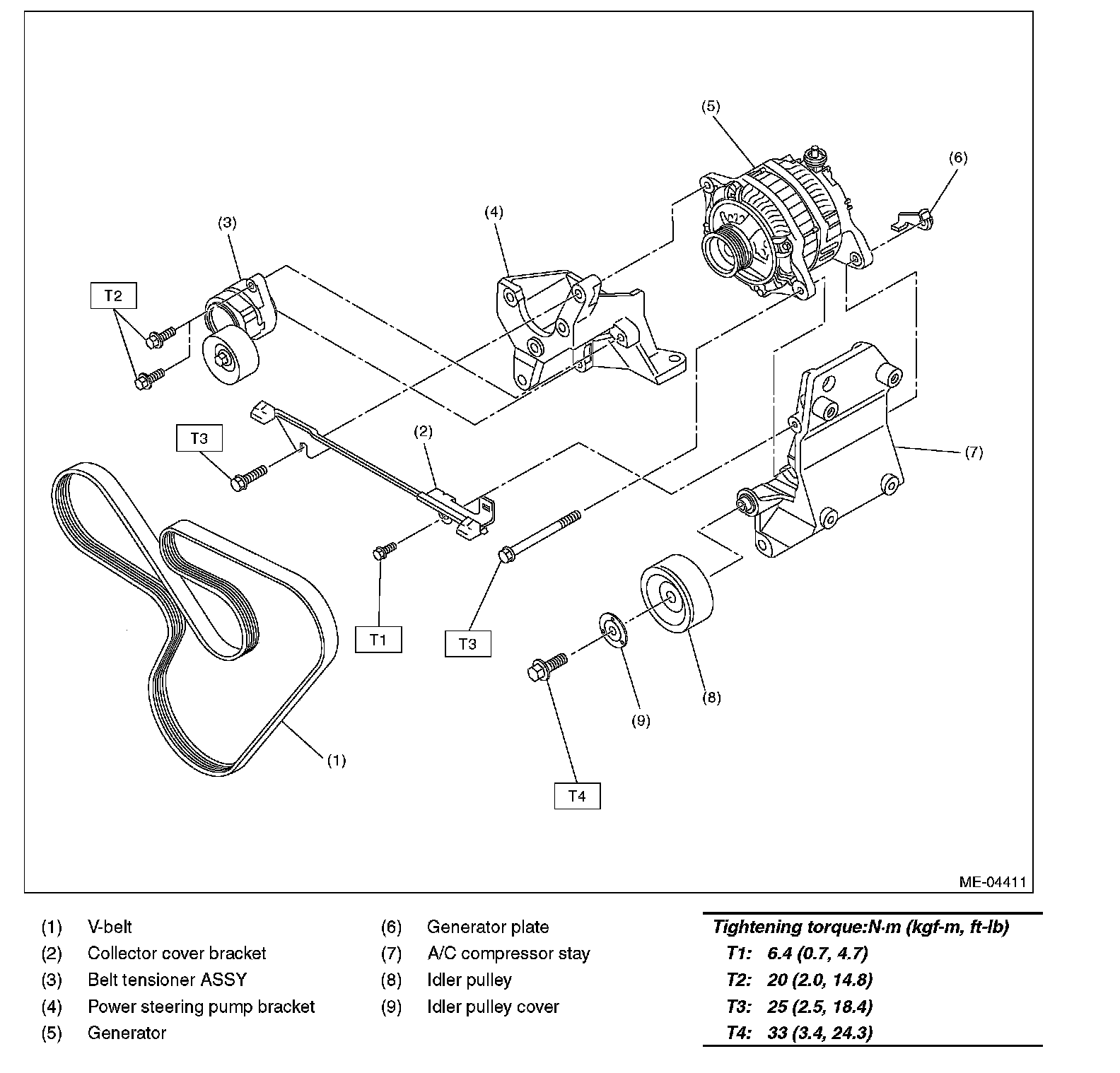

V-BELT

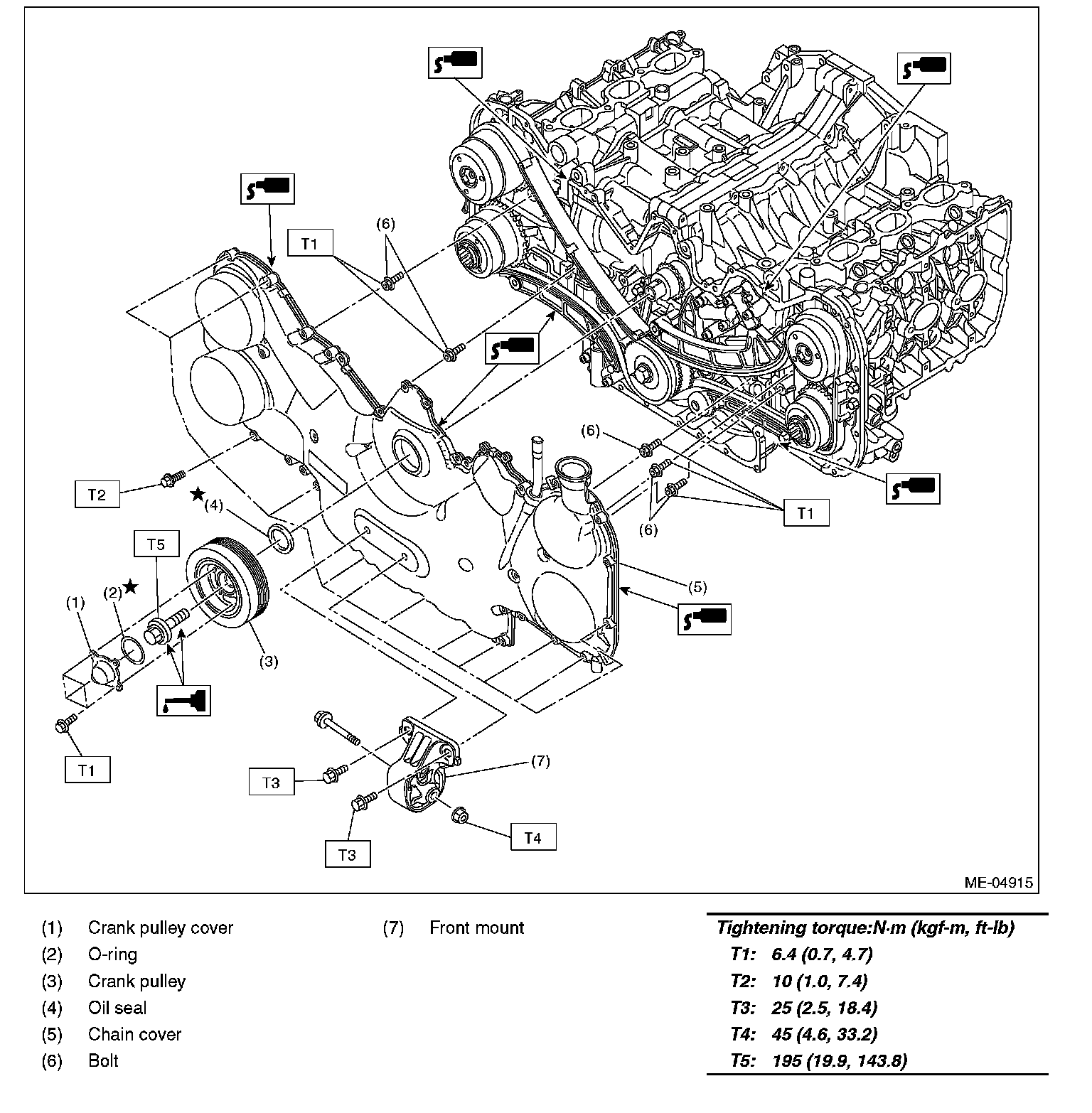

CHAIN COVER

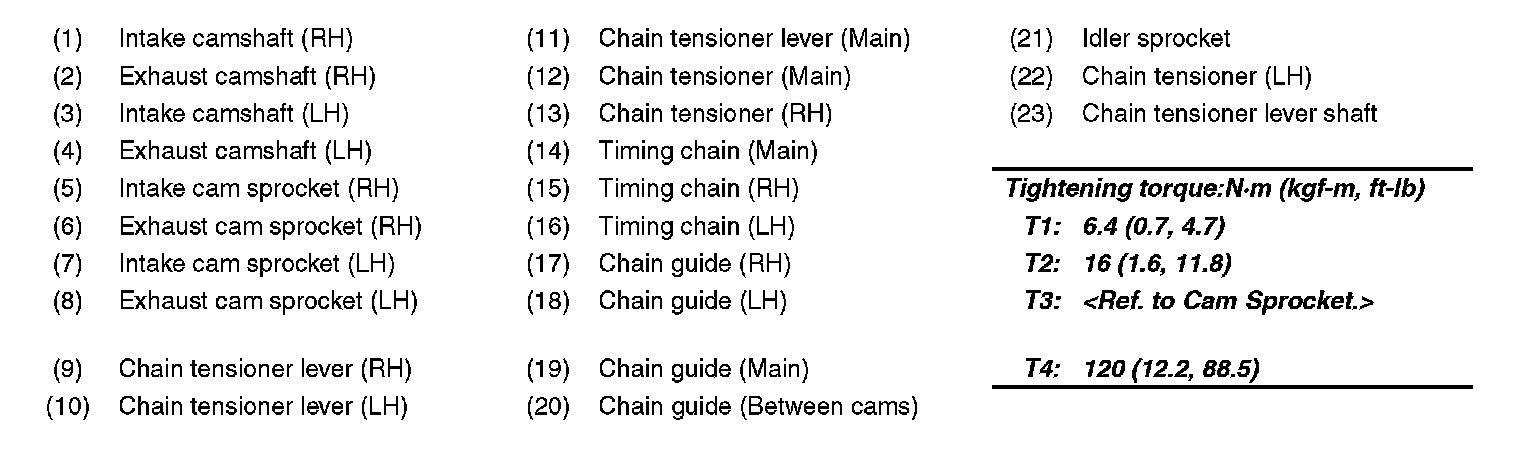

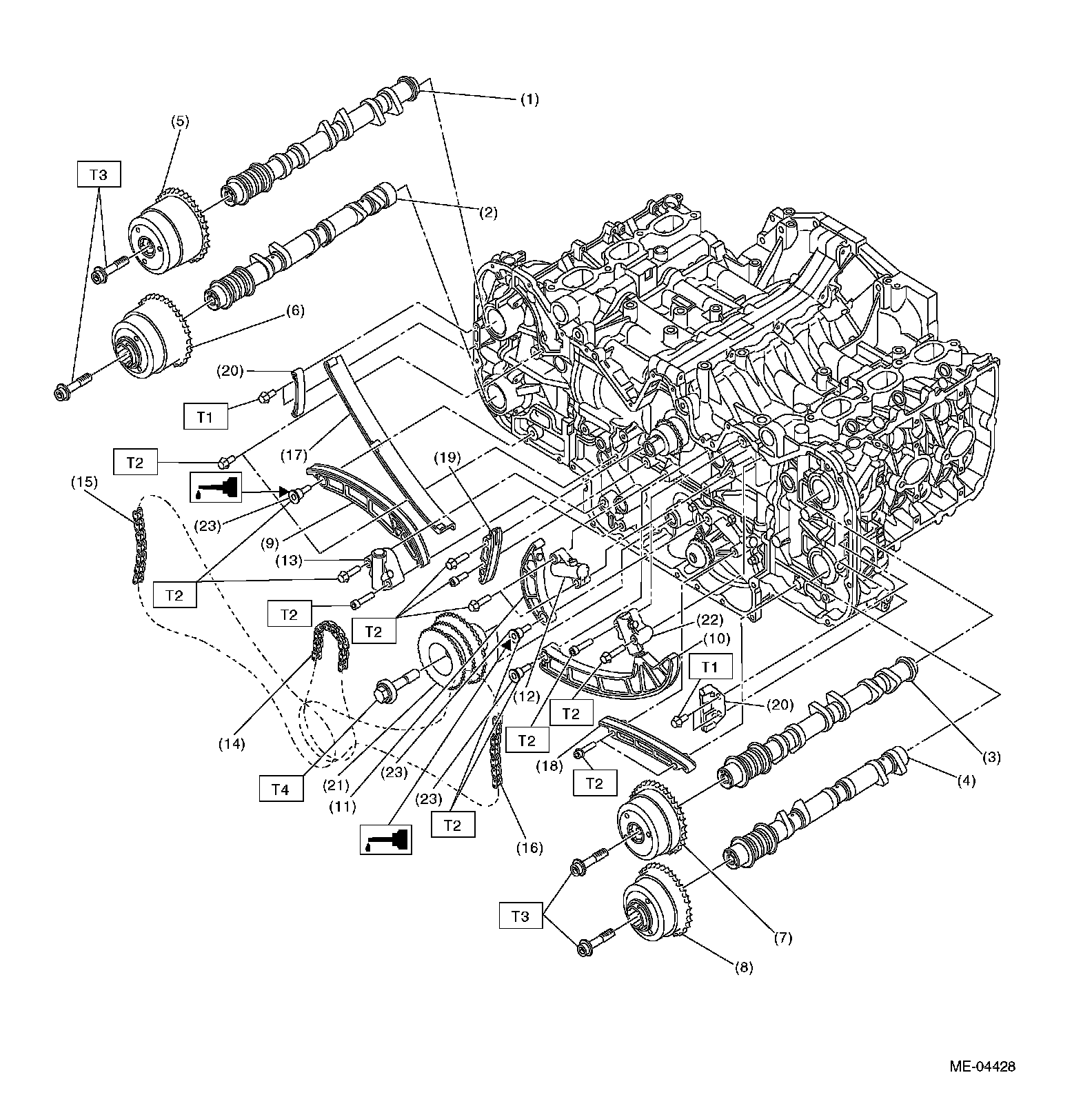

TIMING CHAIN

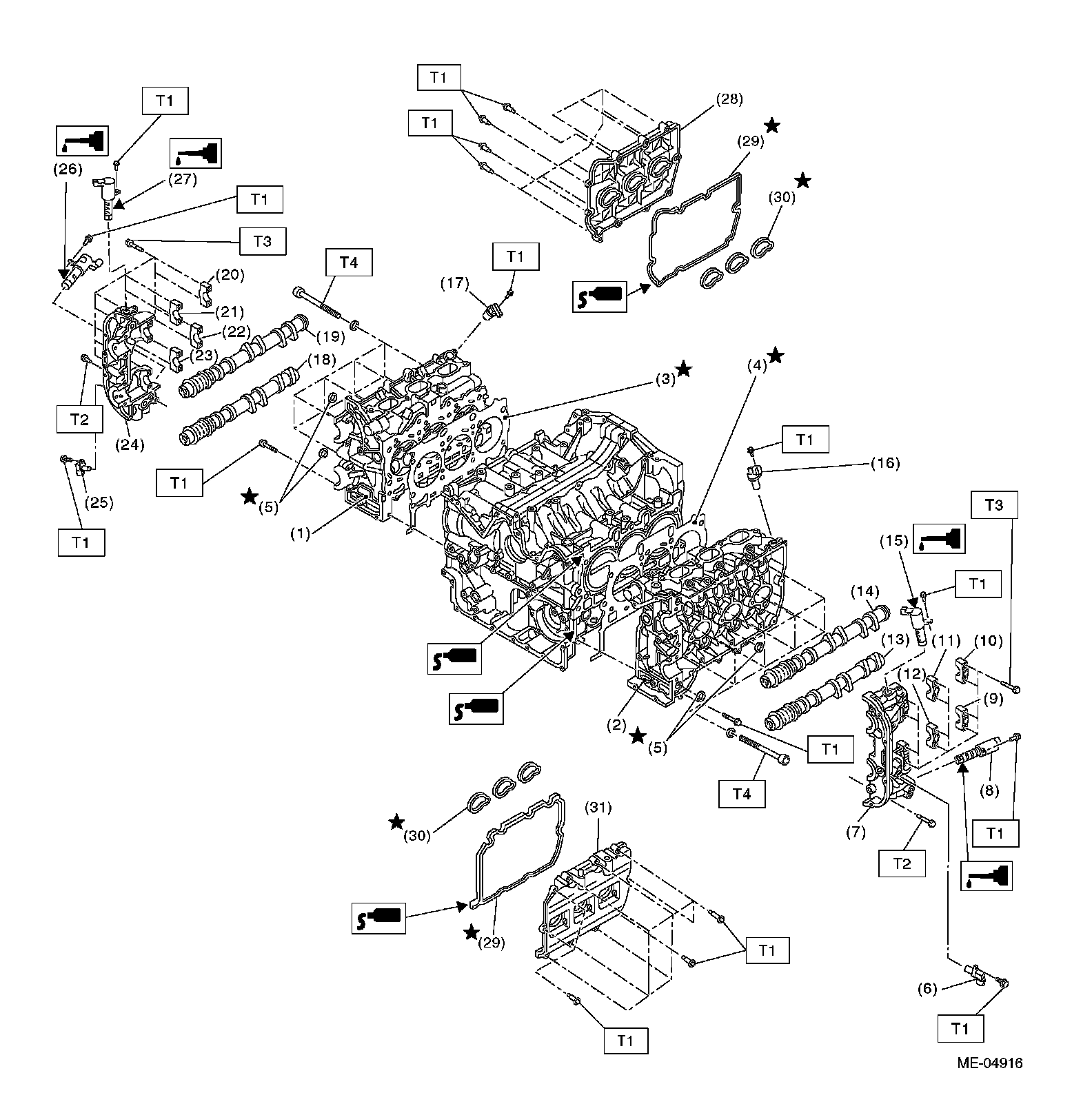

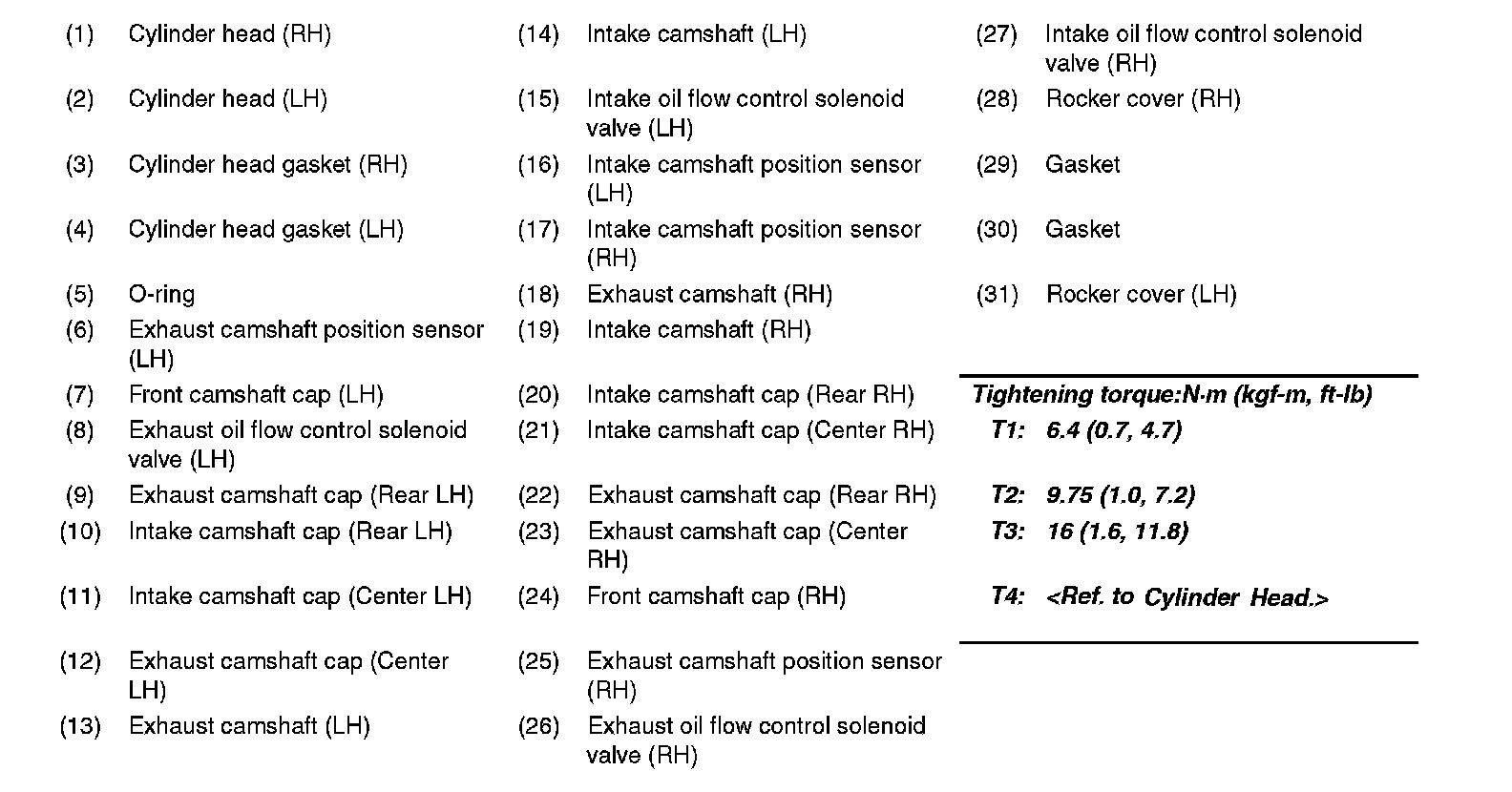

CYLINDER HEAD AND CAMSHAFT

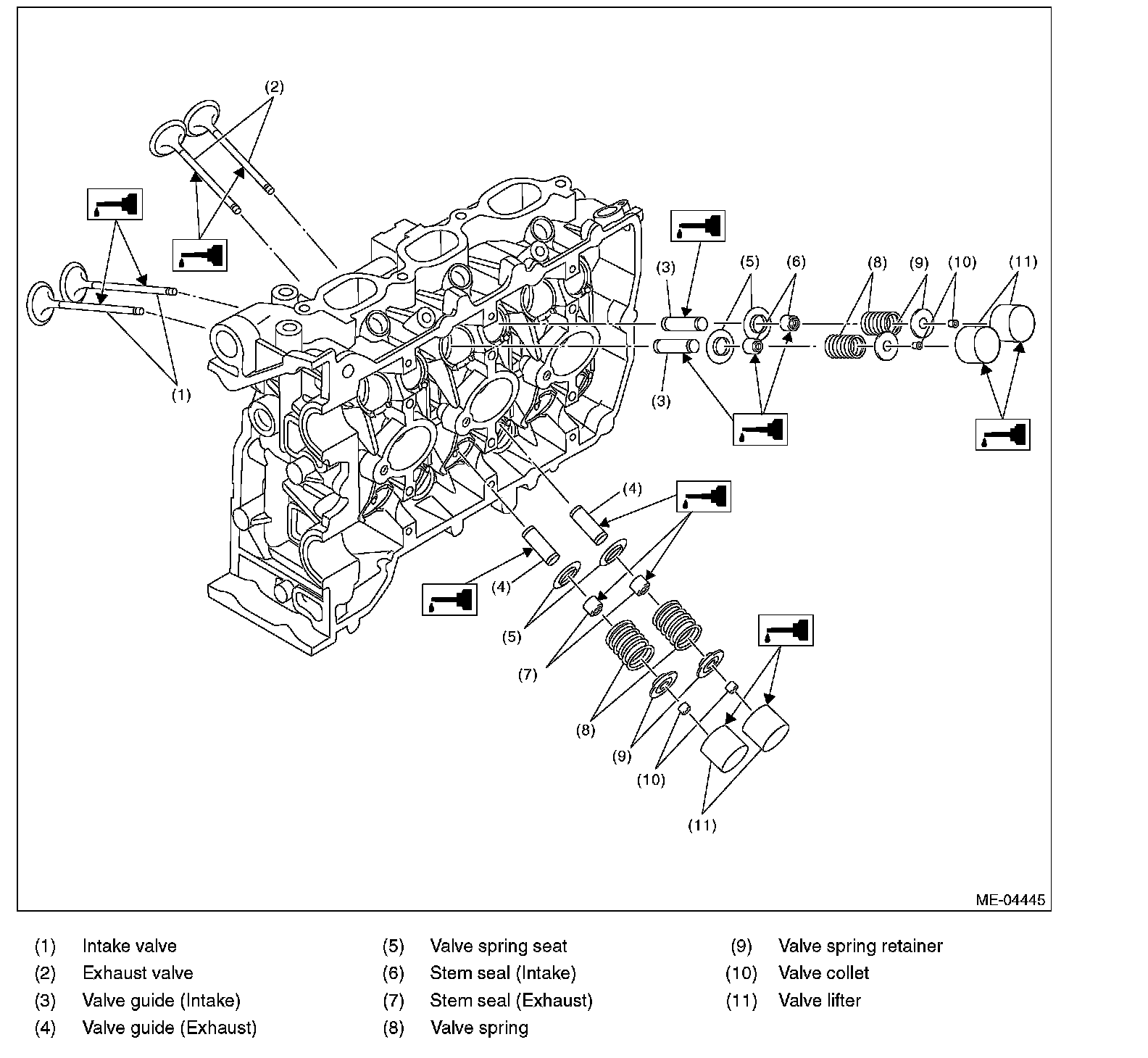

CYLINDER HEAD AND VALVE ASSEMBLY

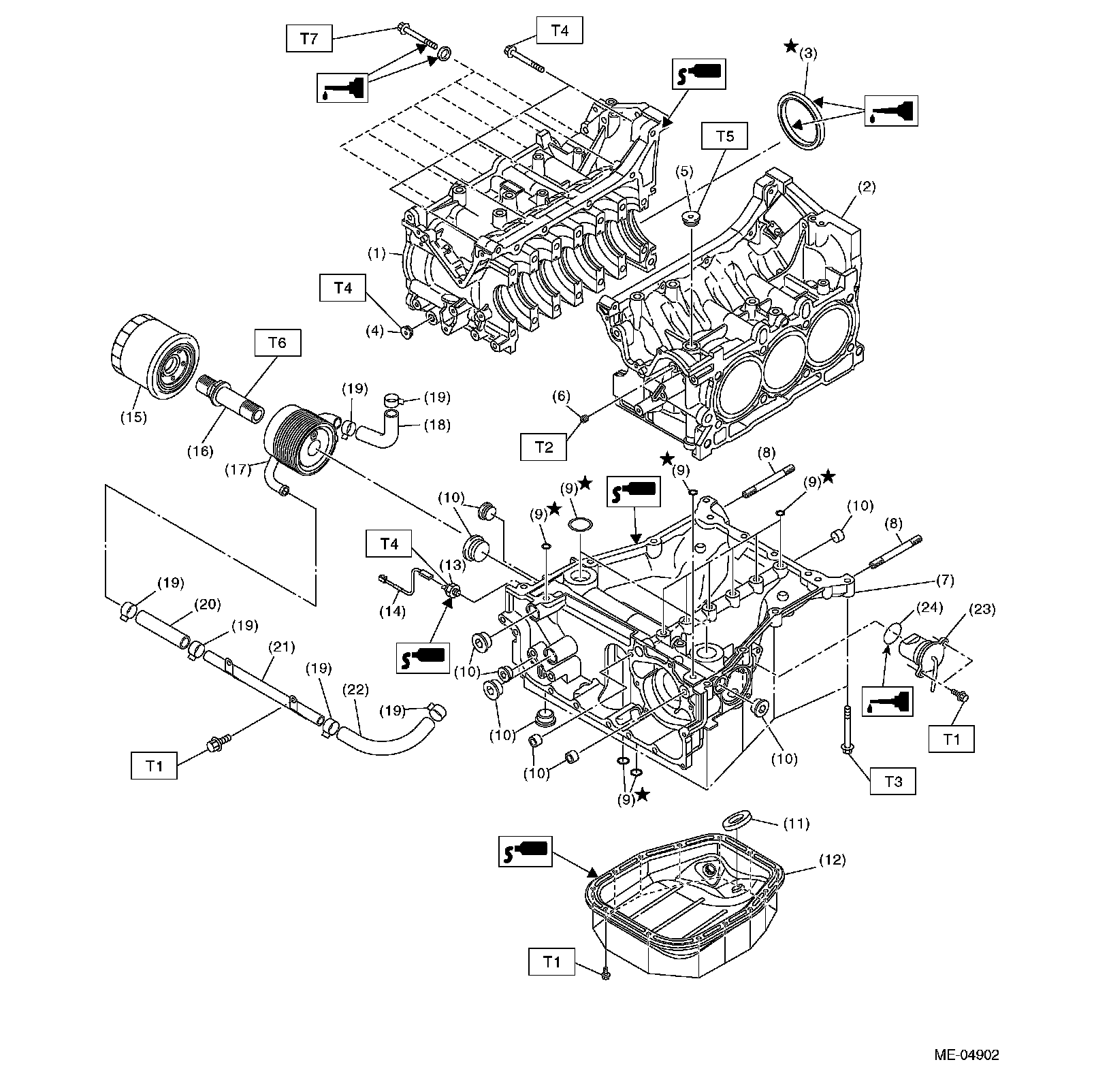

CYLINDER BLOCK

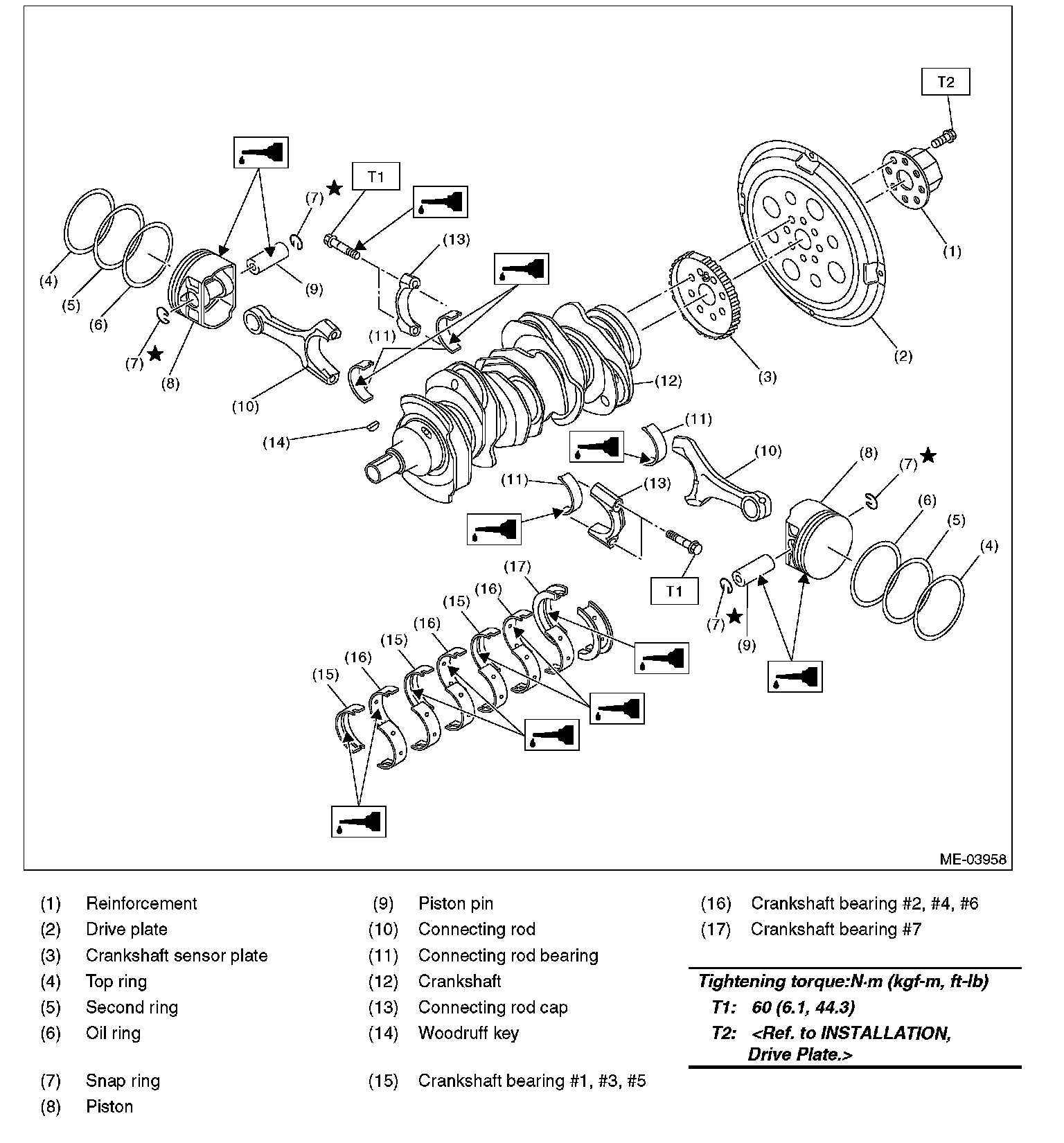

CRANKSHAFT AND PISTON

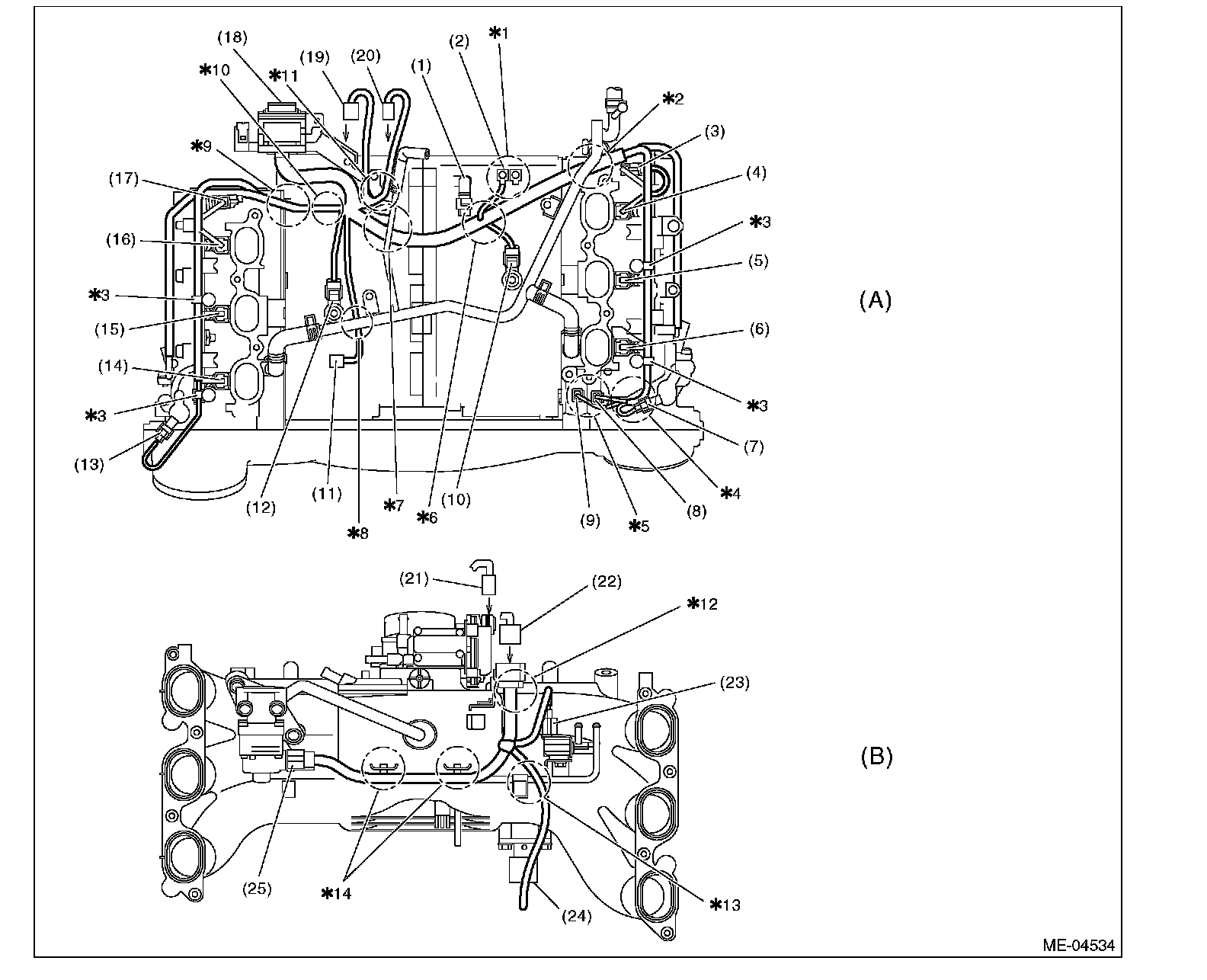

ENGINE HARNESS

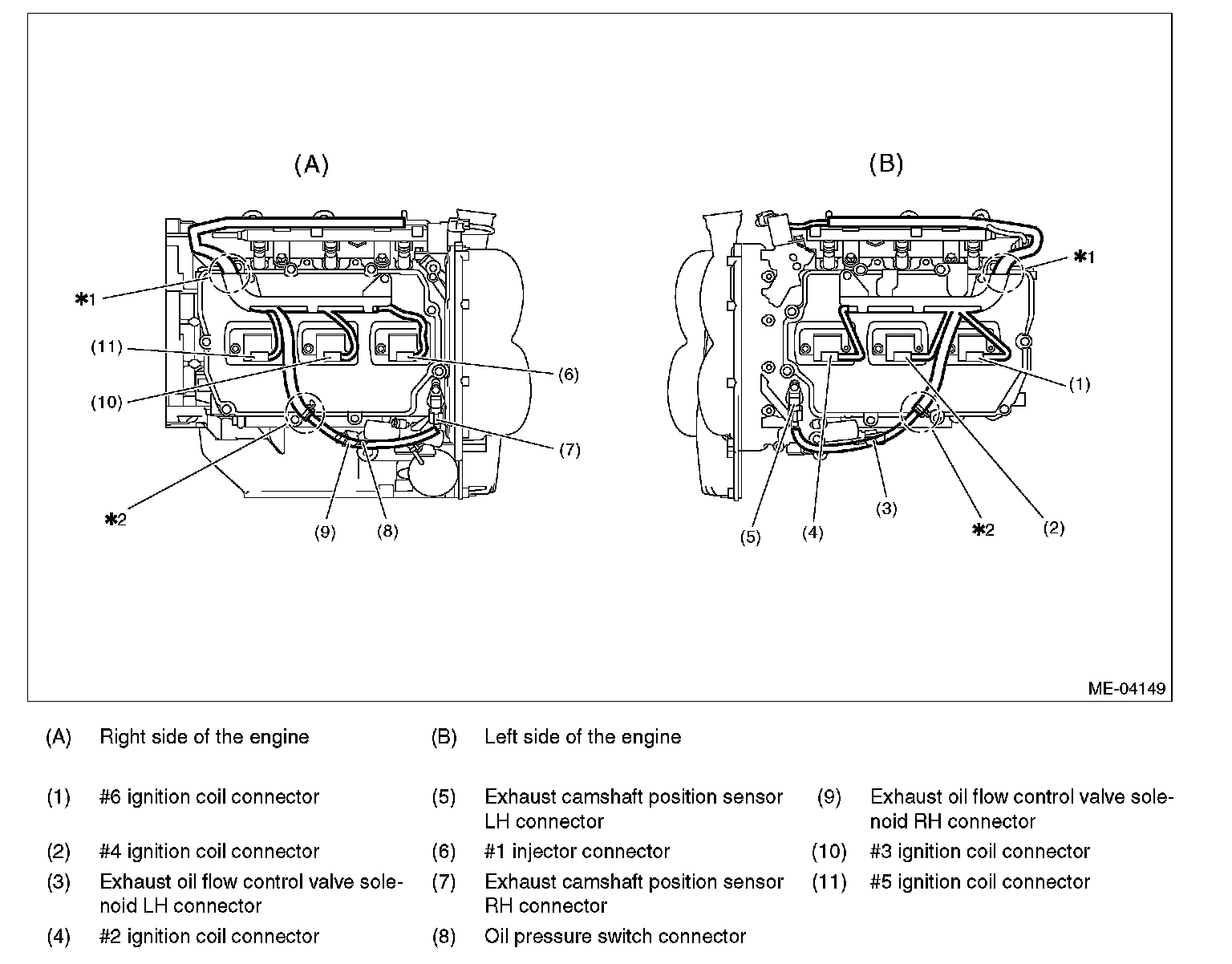

Engine harness assembly diagram 1

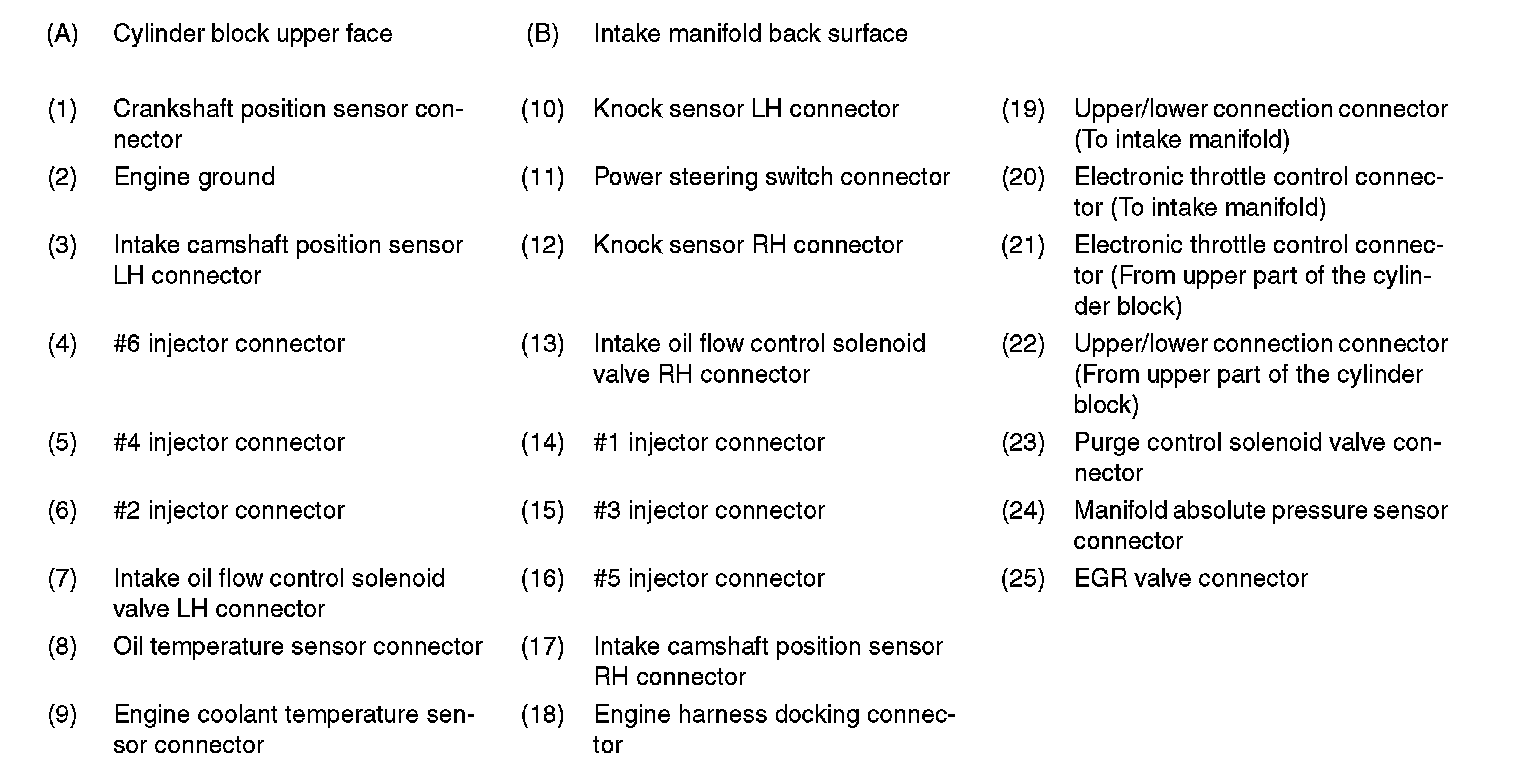

Engine harness assembly diagram 2

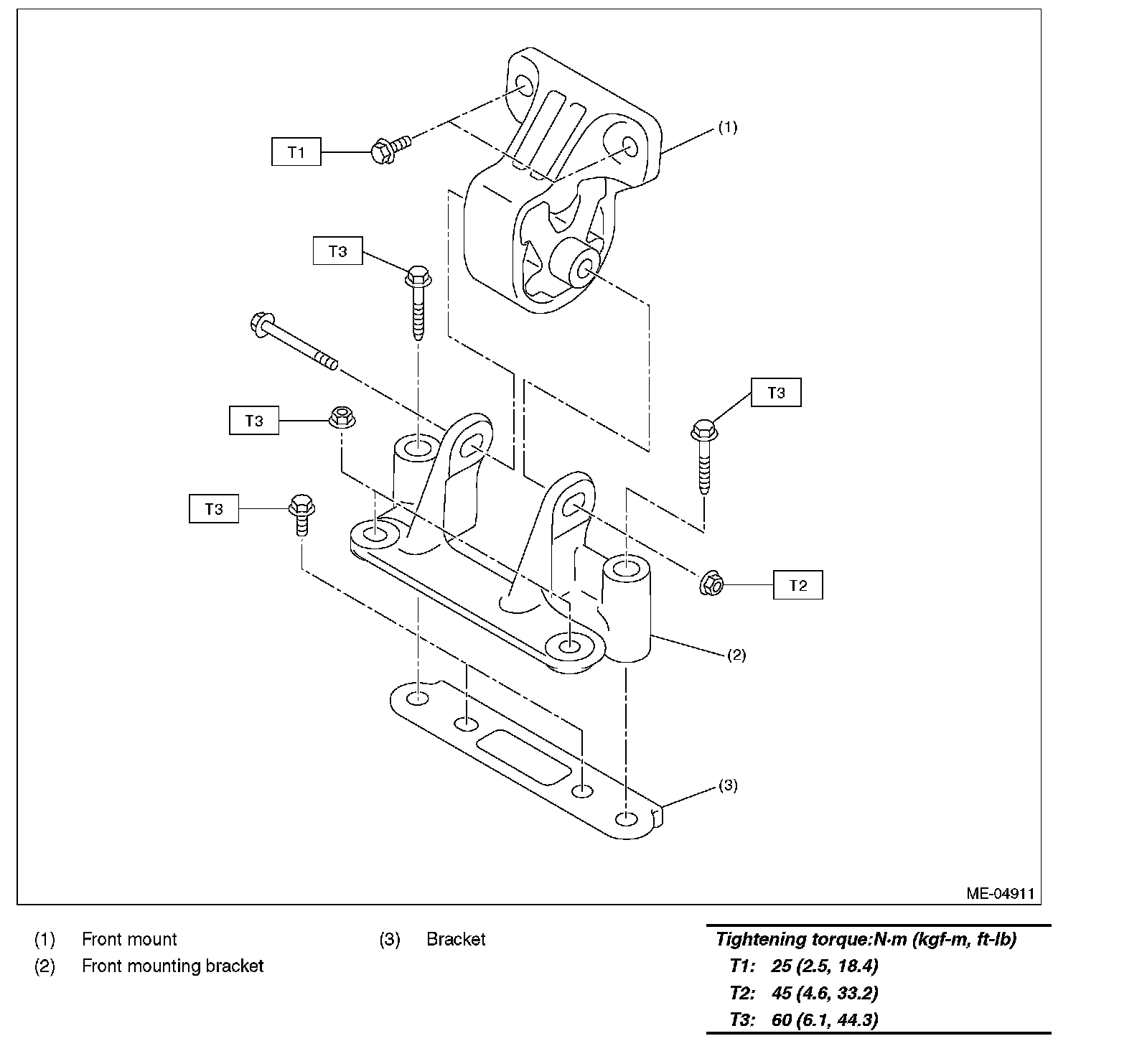

ENGINE MOUNTING
