Heating and Air Conditioning
General Description
COMPONENT
1.

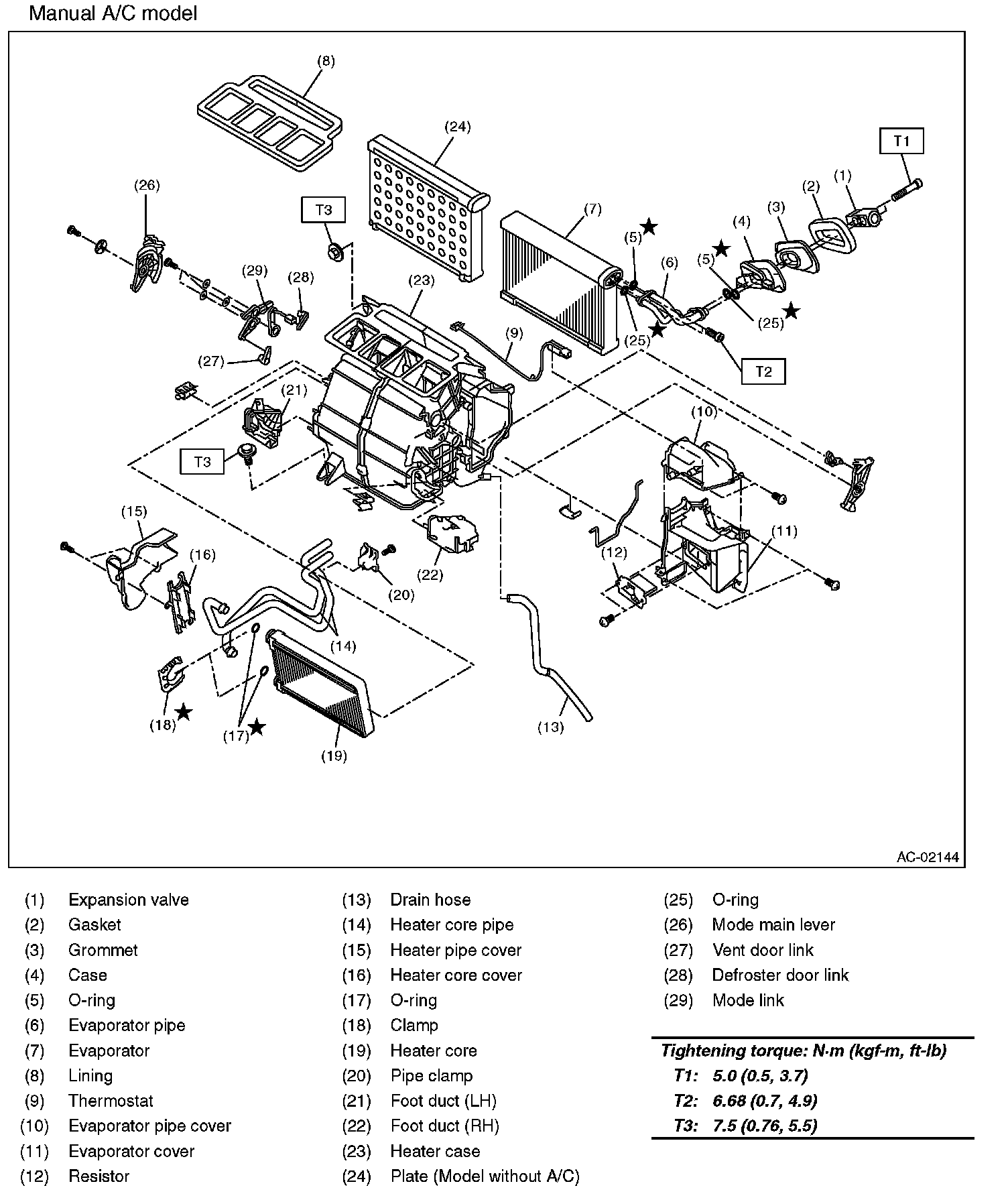

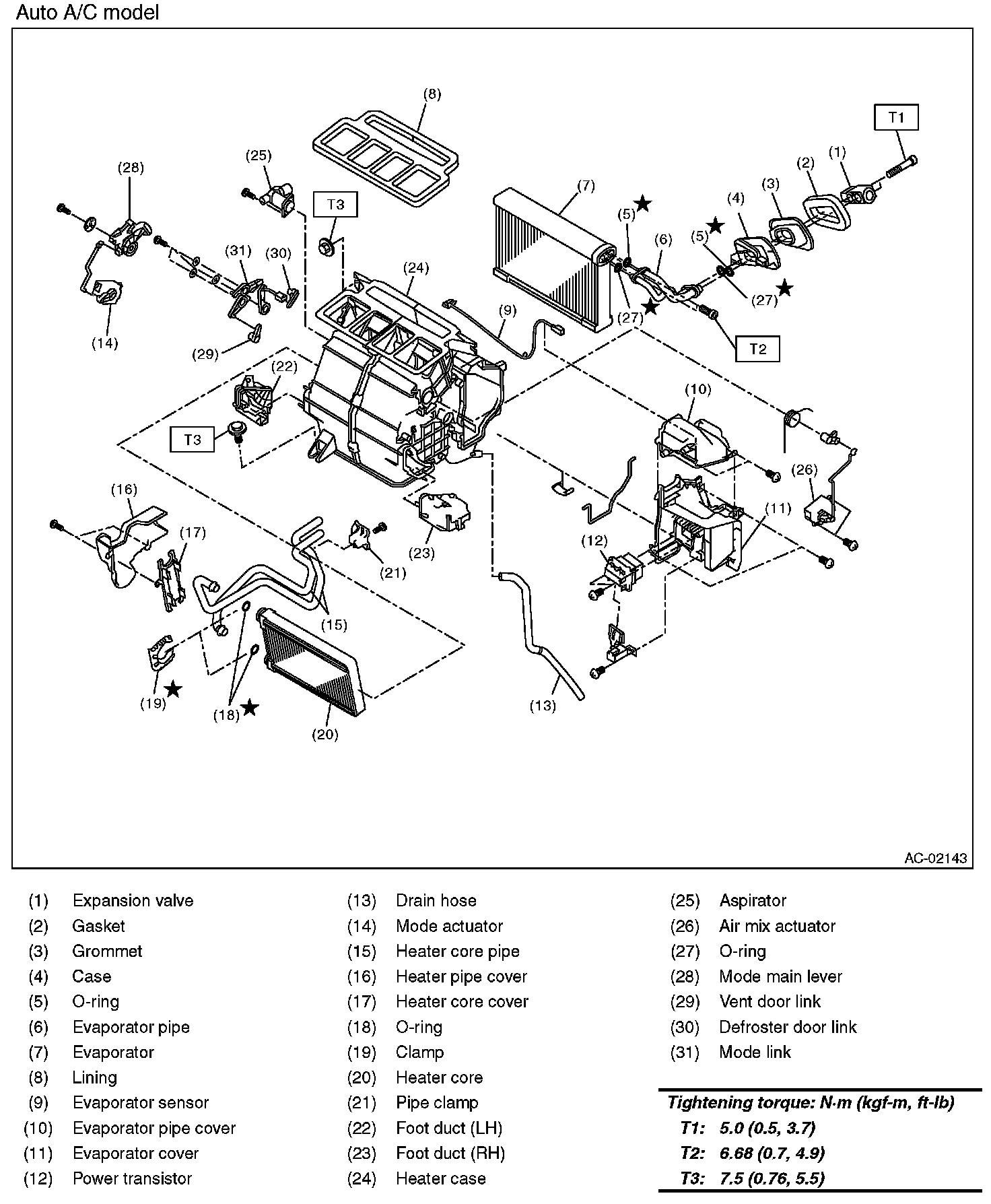

HEATER COOLING UNIT
2.

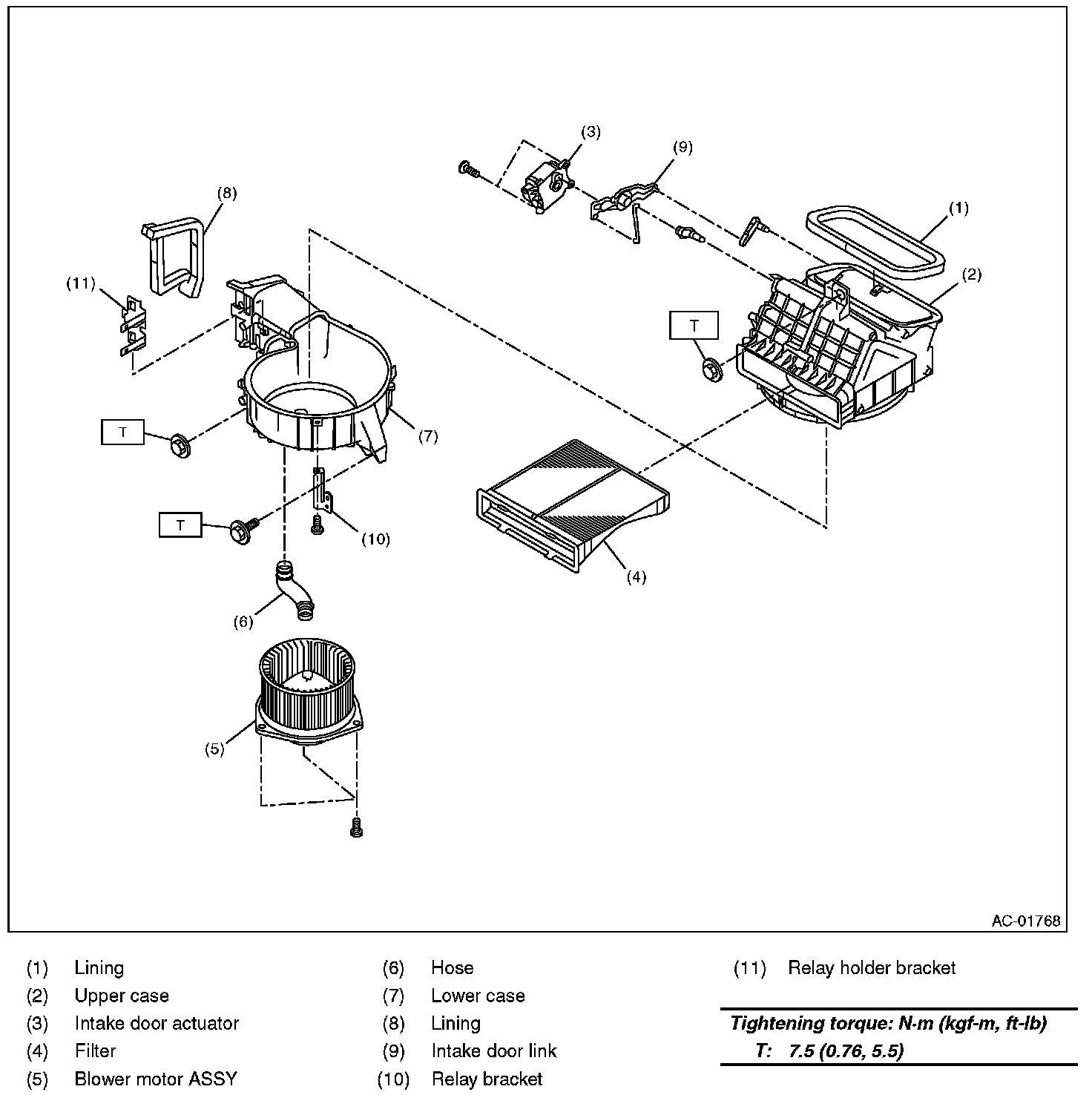

BLOWER MOTOR
UNIT
3.

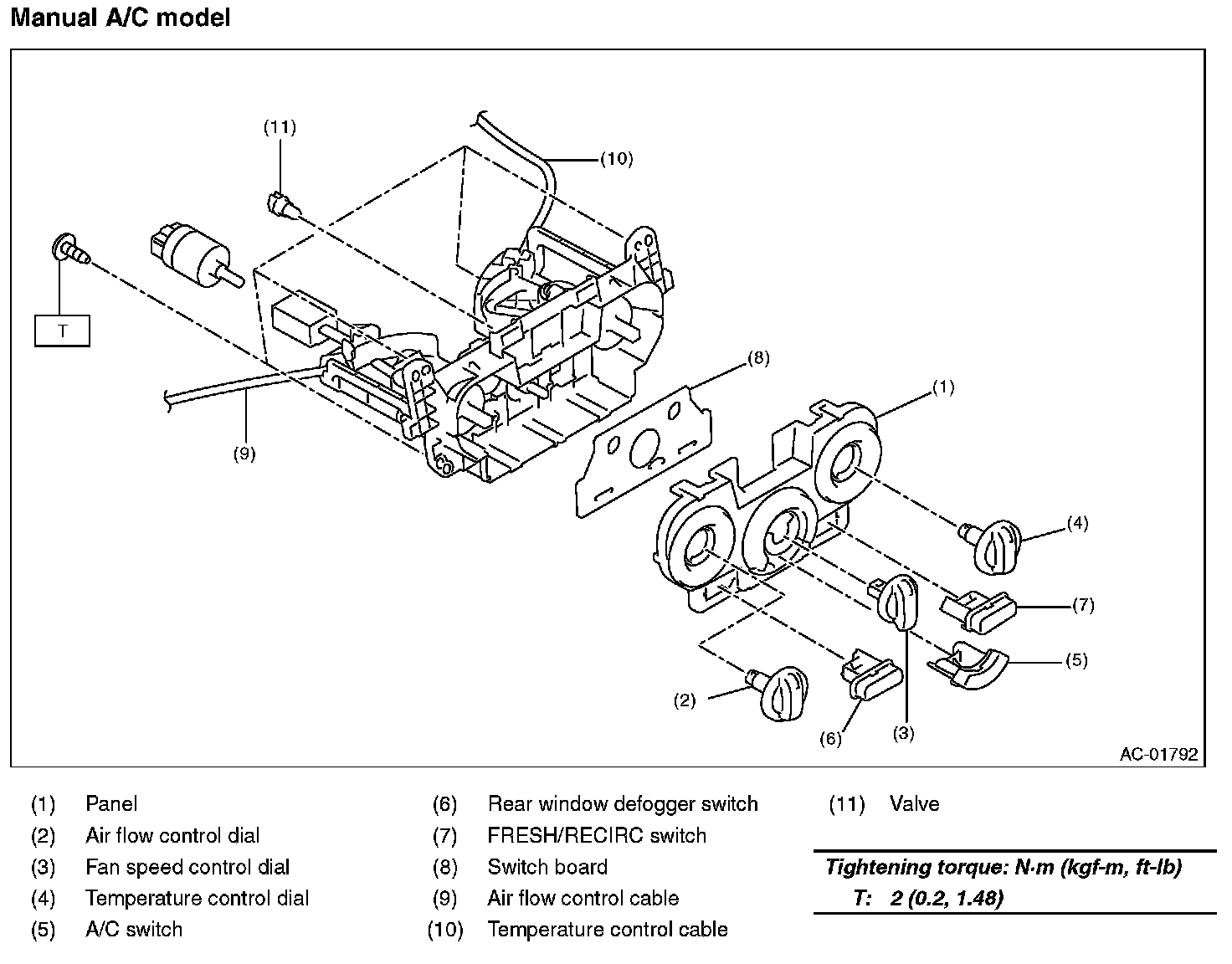

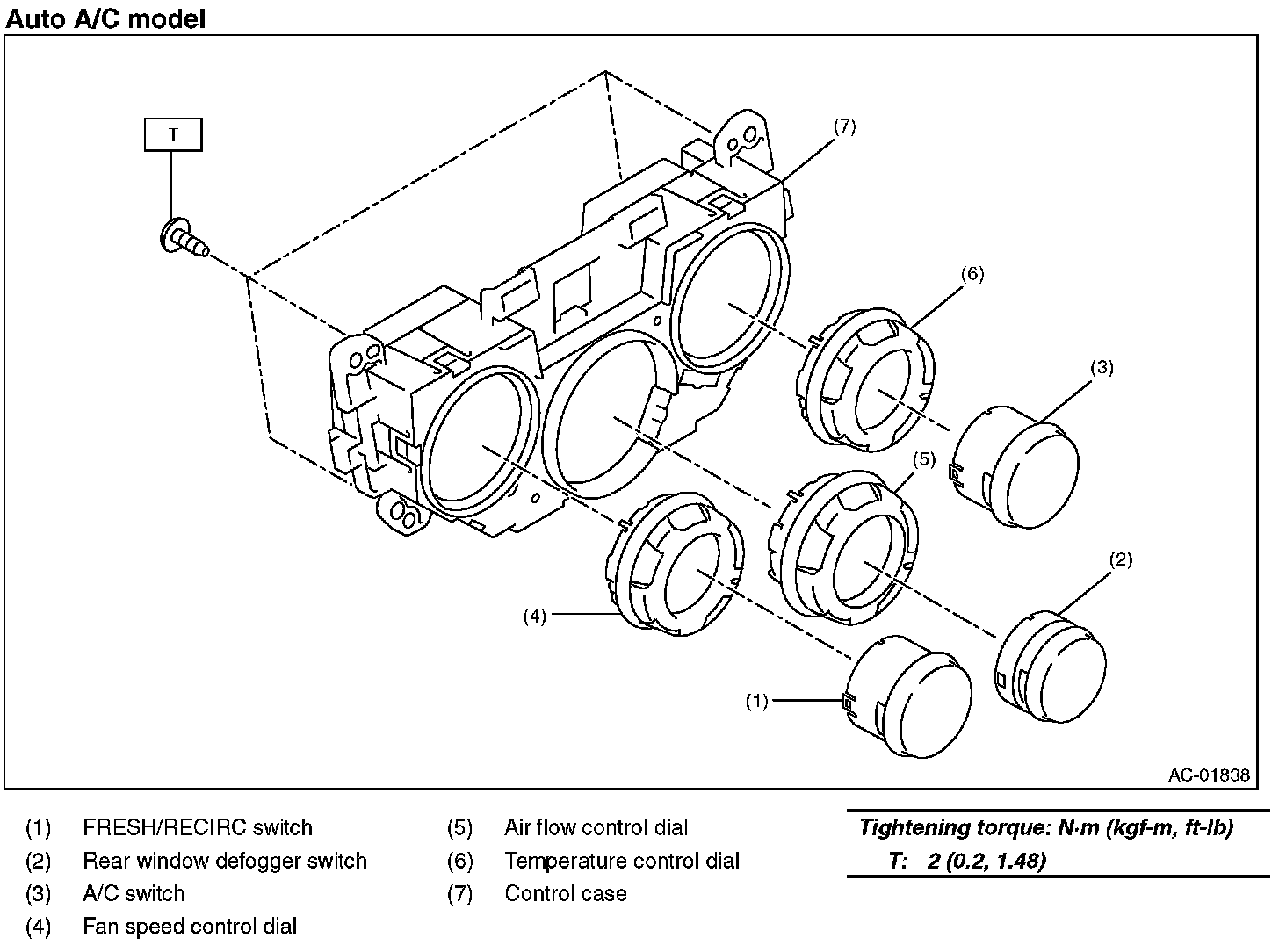

CONTROL MODULE
4.

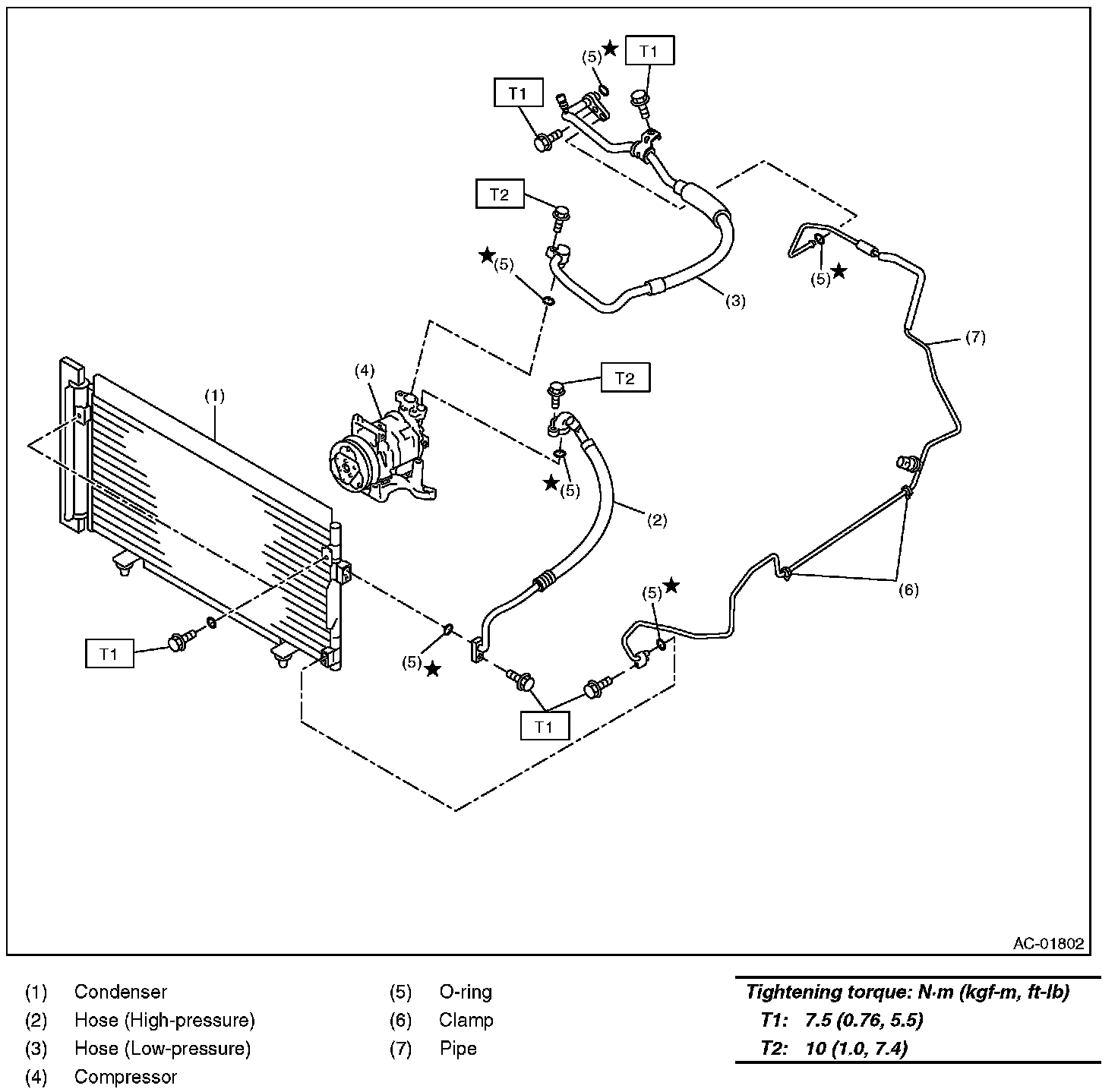

AIR CONDITIONING UNIT
5.

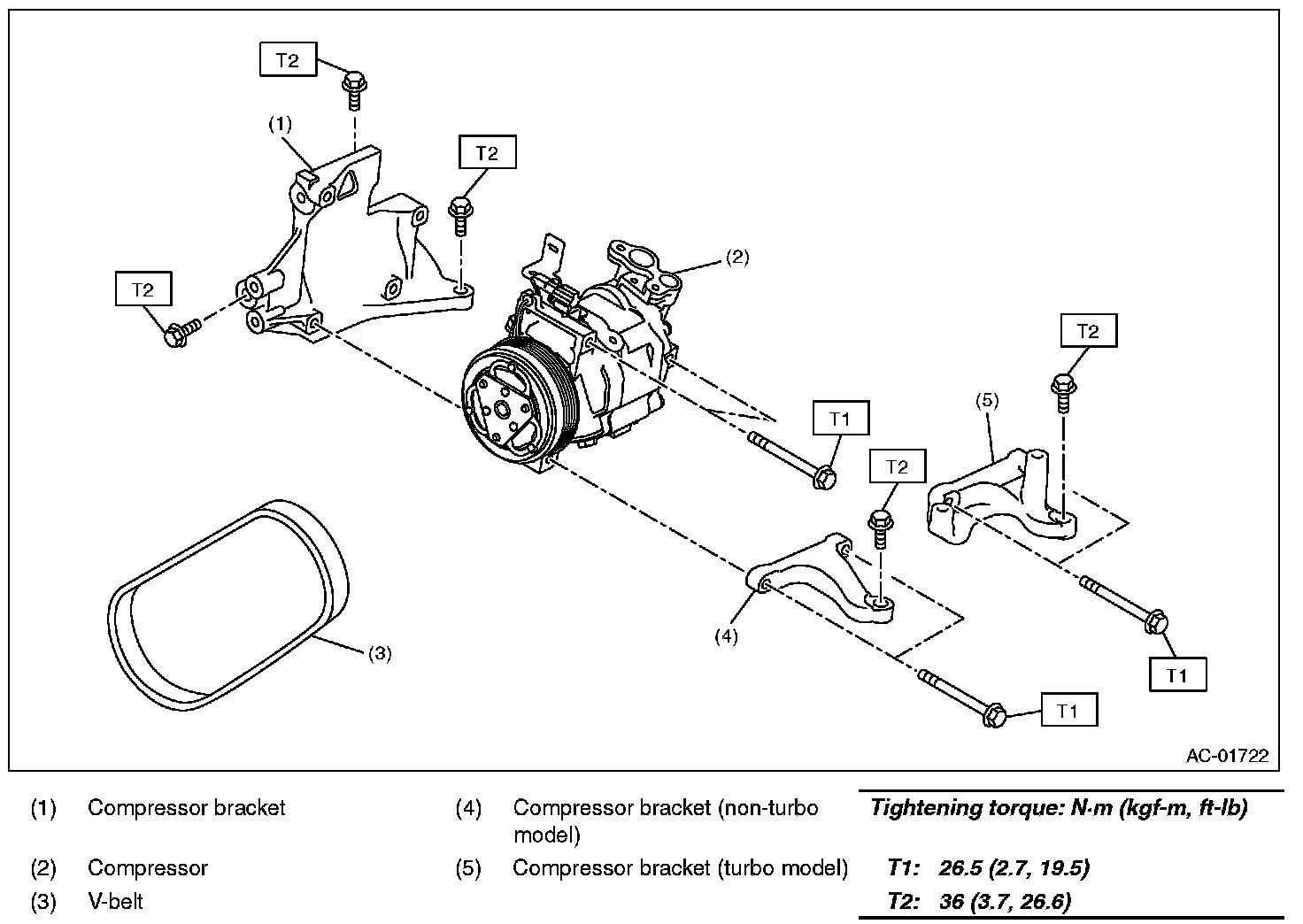

COMPRESSOR
6.

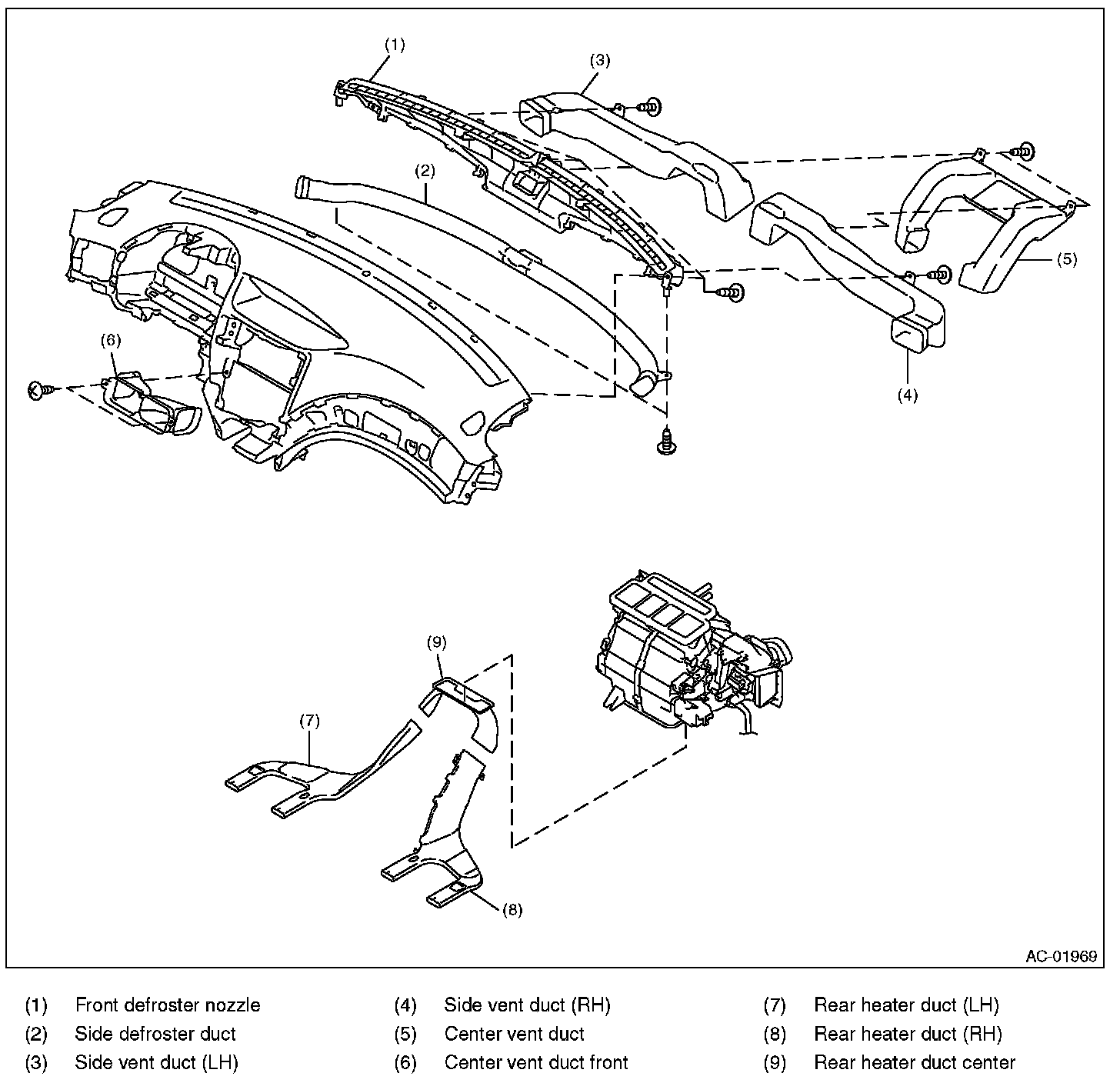

HEATER DUCT
