Rear Seat Belt (Outback Model)

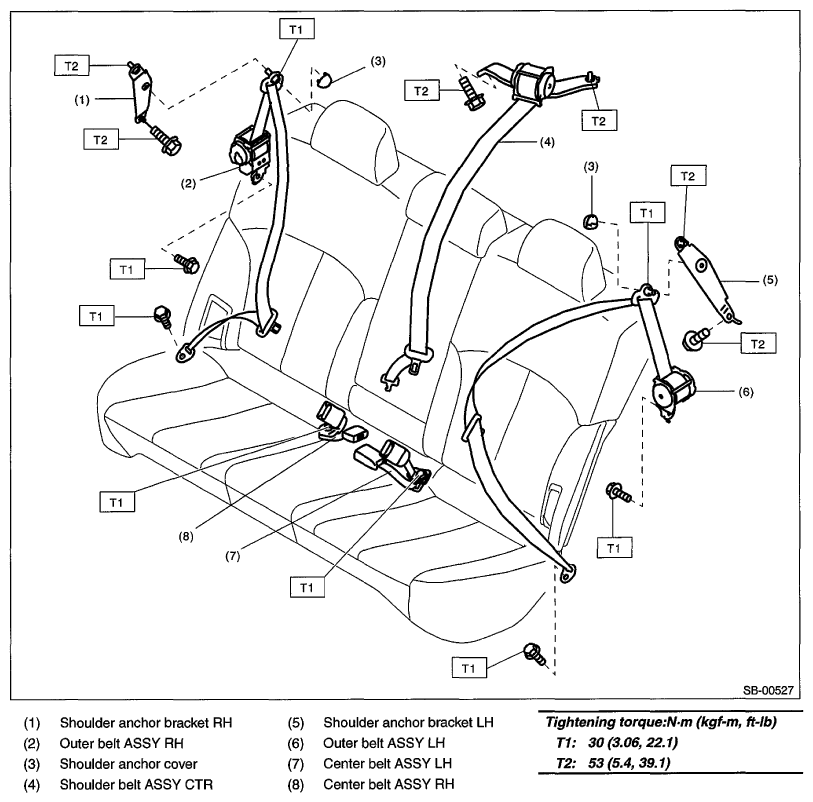

Fig 1: Rear Seat Belt Replacement Components With Torque Specifications (Outback Model)
G06653306Courtesy of SUBARU OF AMERICA, INC.
