VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)

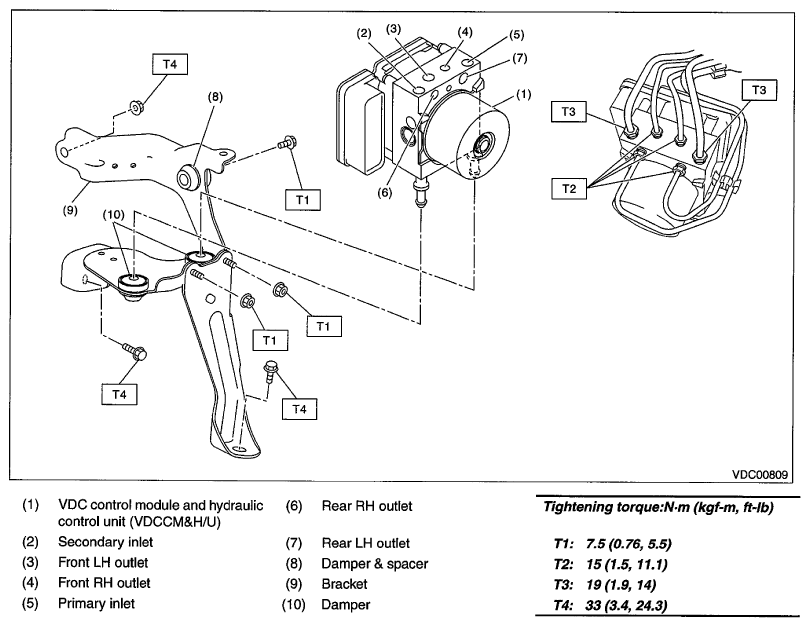

Fig 1: VDC Control Module And Hydraulic Control Unit With Torque Specifications
G06652602Courtesy of SUBARU OF AMERICA, INC.
