Automatic Transmission Diagnostics

Diagnostics with Phenomenon

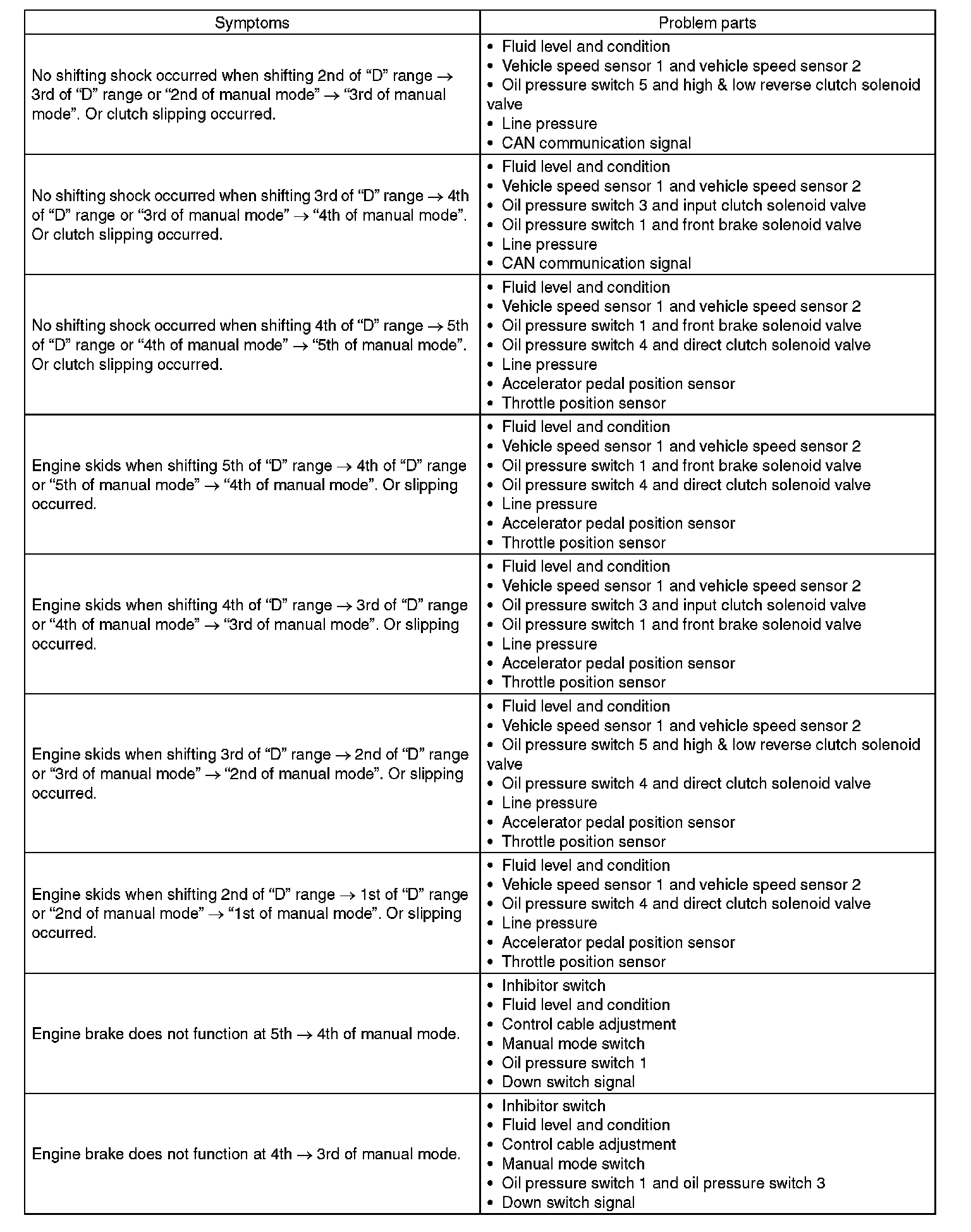

Diagnostics with Phenomenon (Part 1):

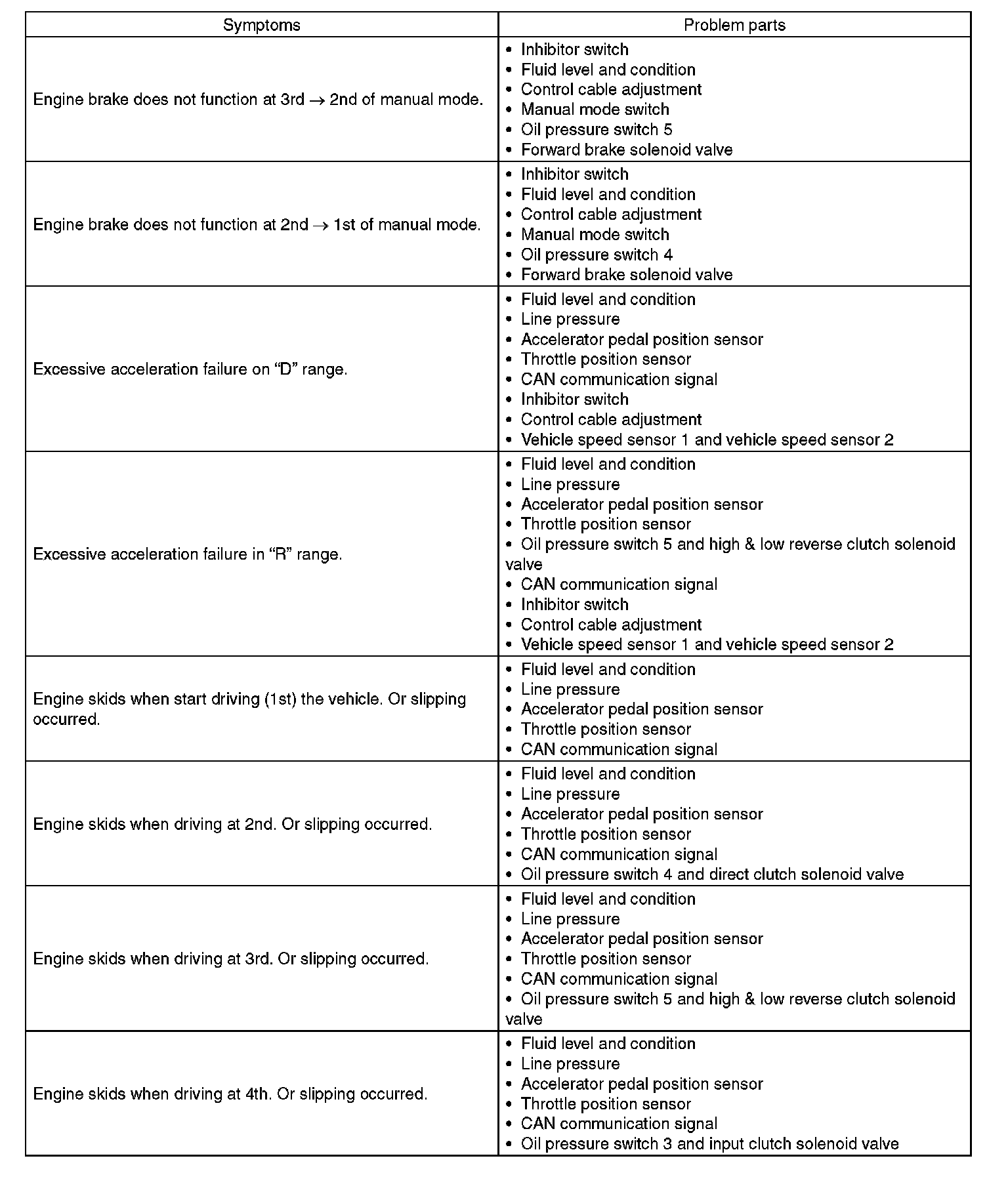

Diagnostics with Phenomenon (Part 2):

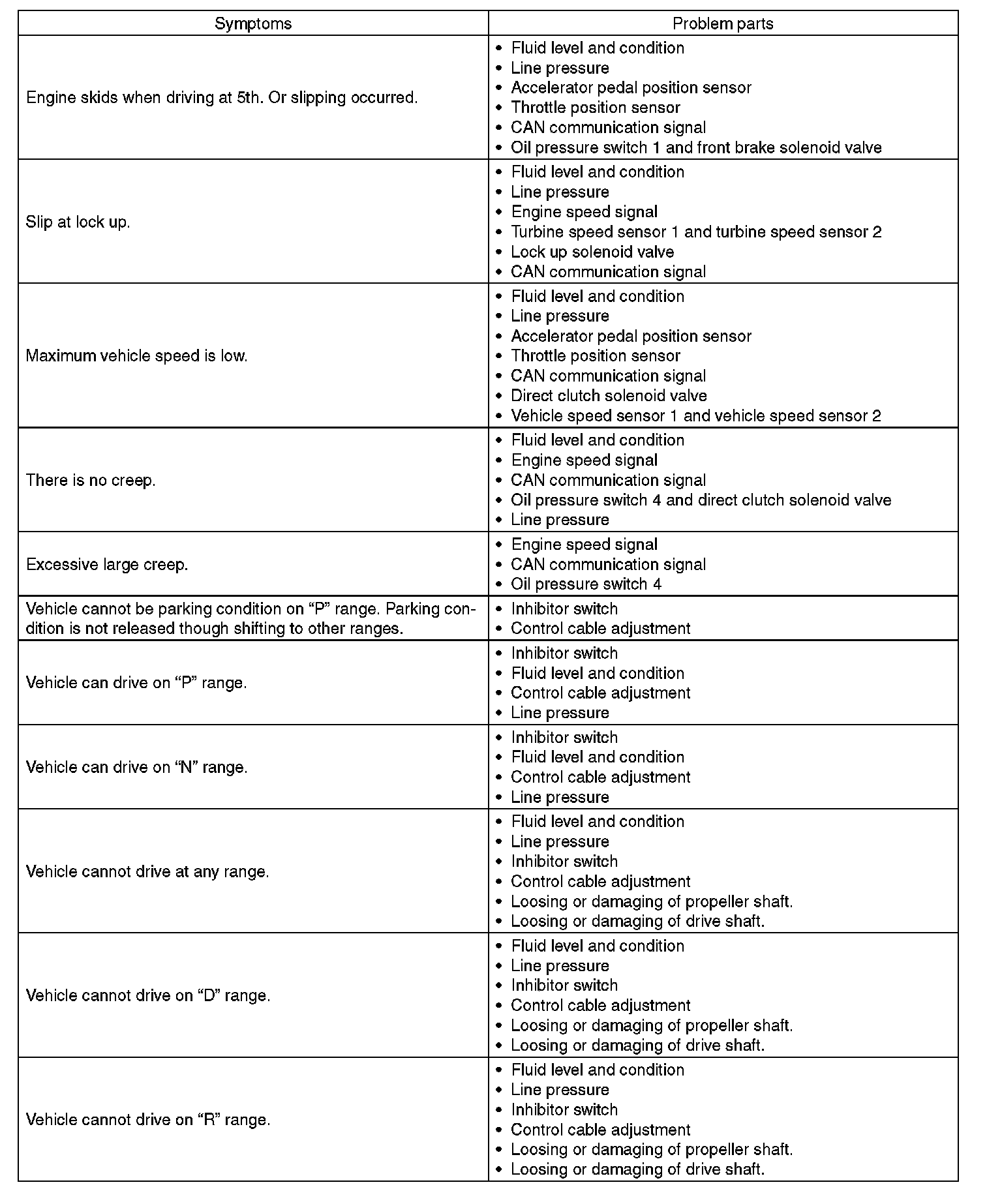

Diagnostics with Phenomenon (Part 3):

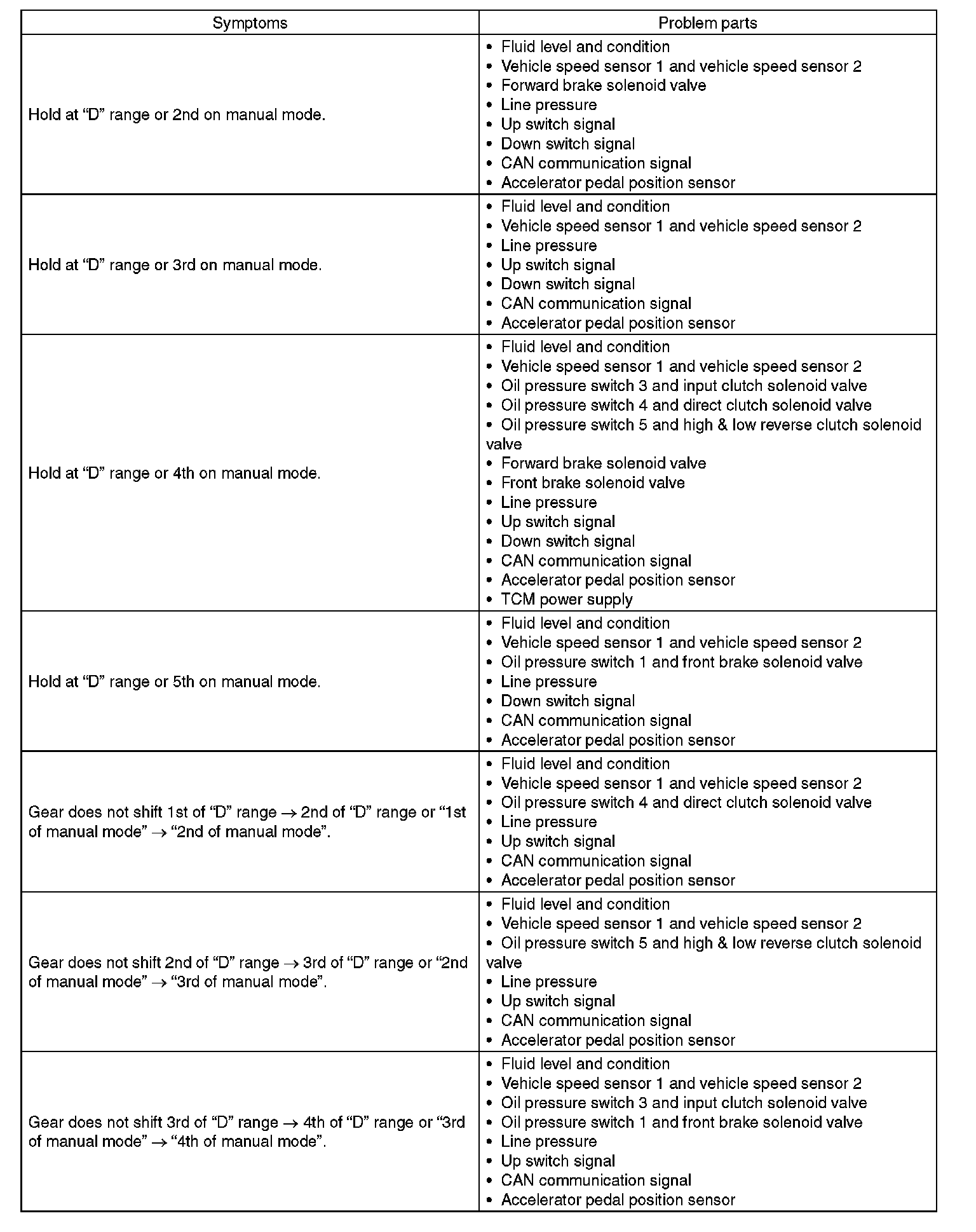

Diagnostics with Phenomenon (Part 4):

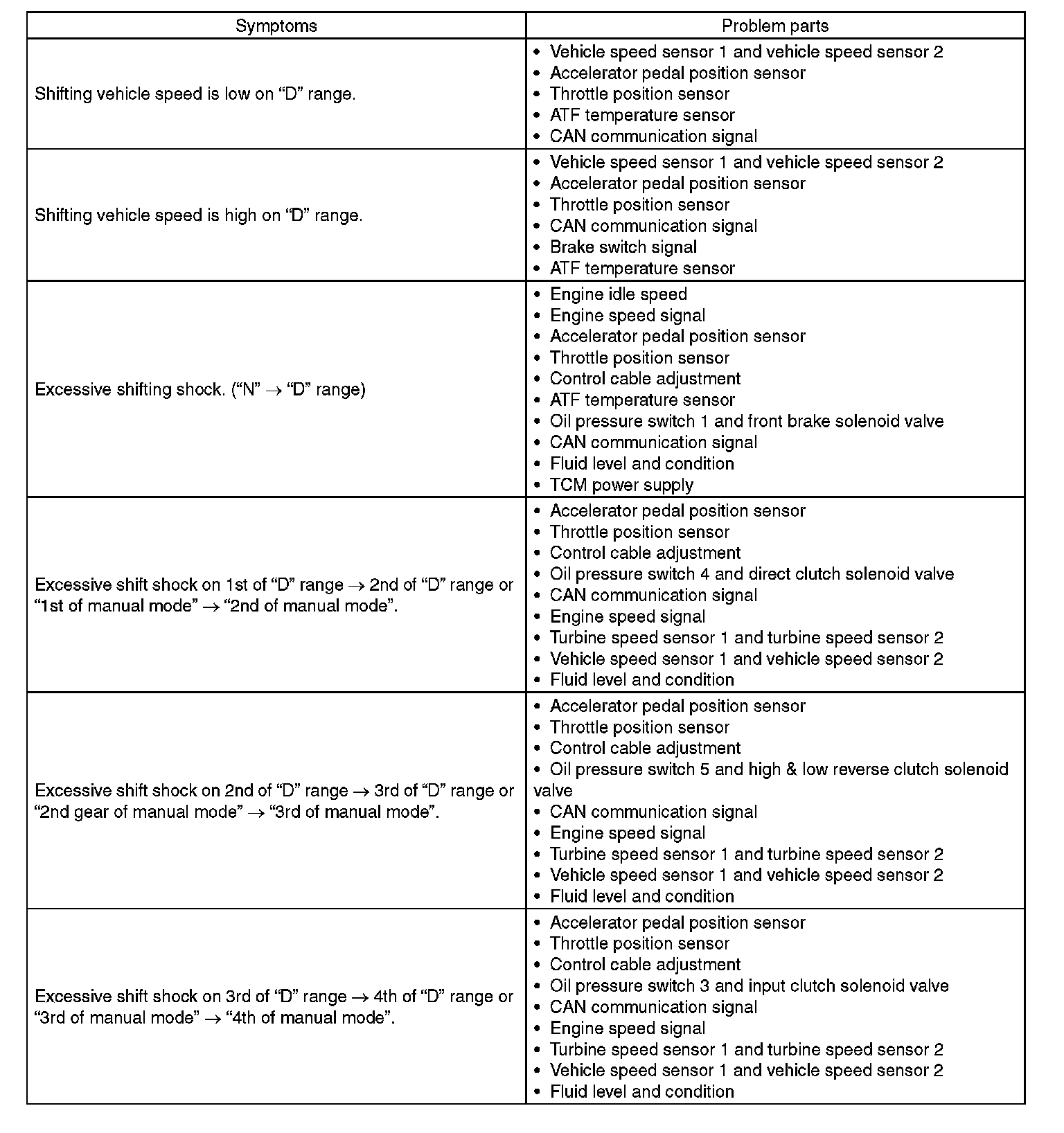

Diagnostics with Phenomenon (Part 5):

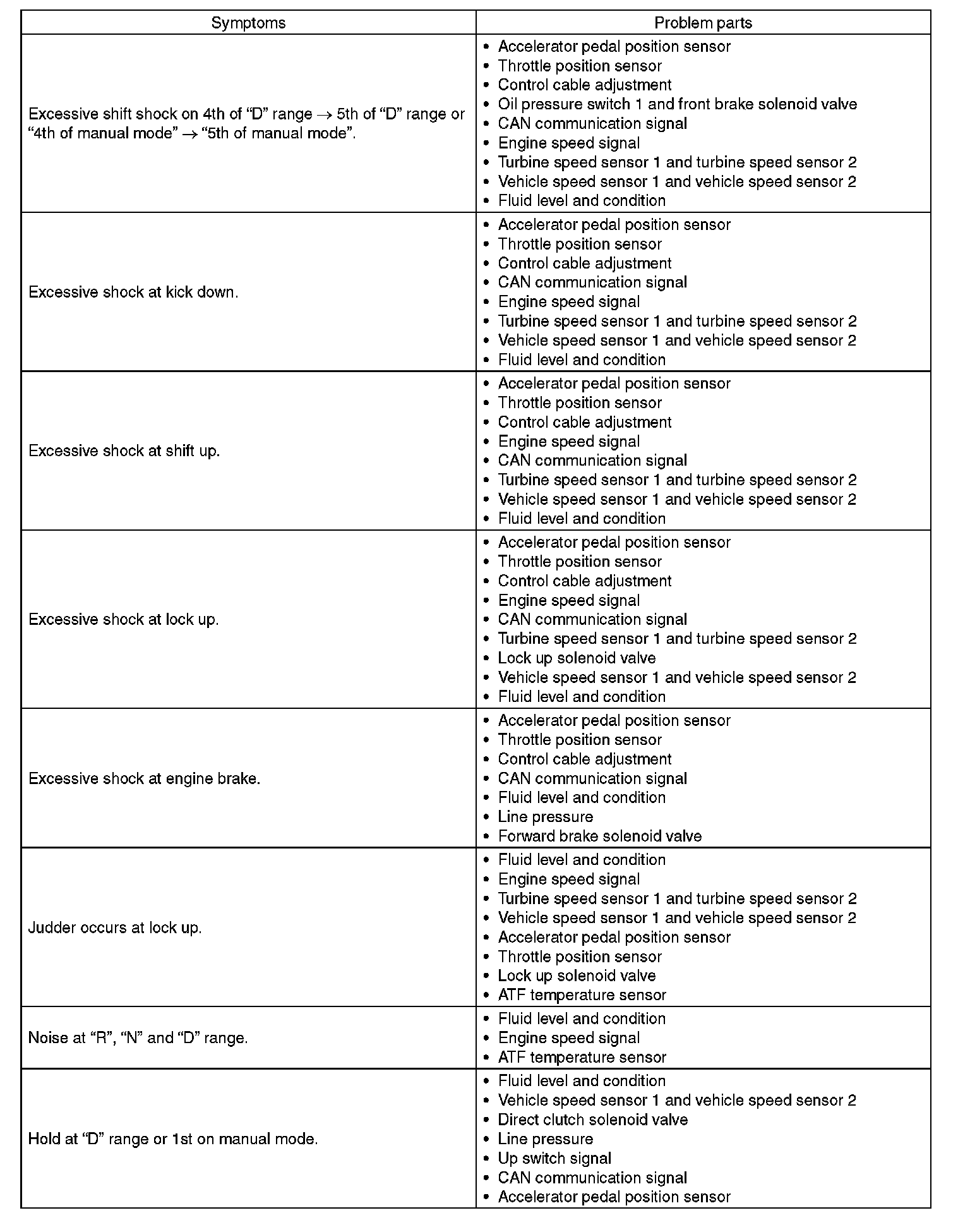

Diagnostics with Phenomenon (Part 6):

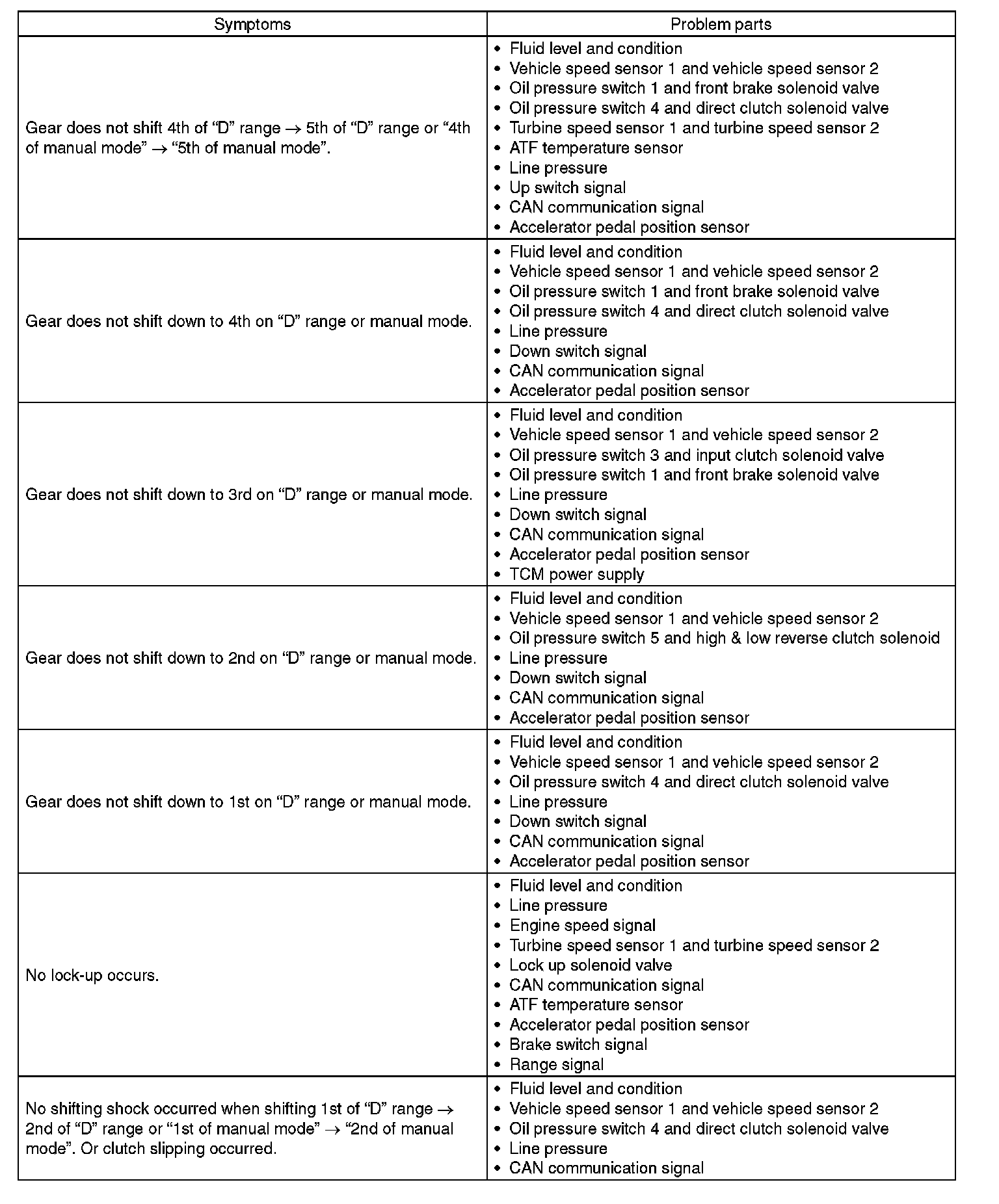

Diagnostics with Phenomenon (Part 7):




Diagnostics with Phenomenon (Part 8):
