Ambient Sensor (Auto A/C Model)

Ambient Sensor (Auto A/C Model)

REMOVAL

1. Disconnect the ground cable from battery.

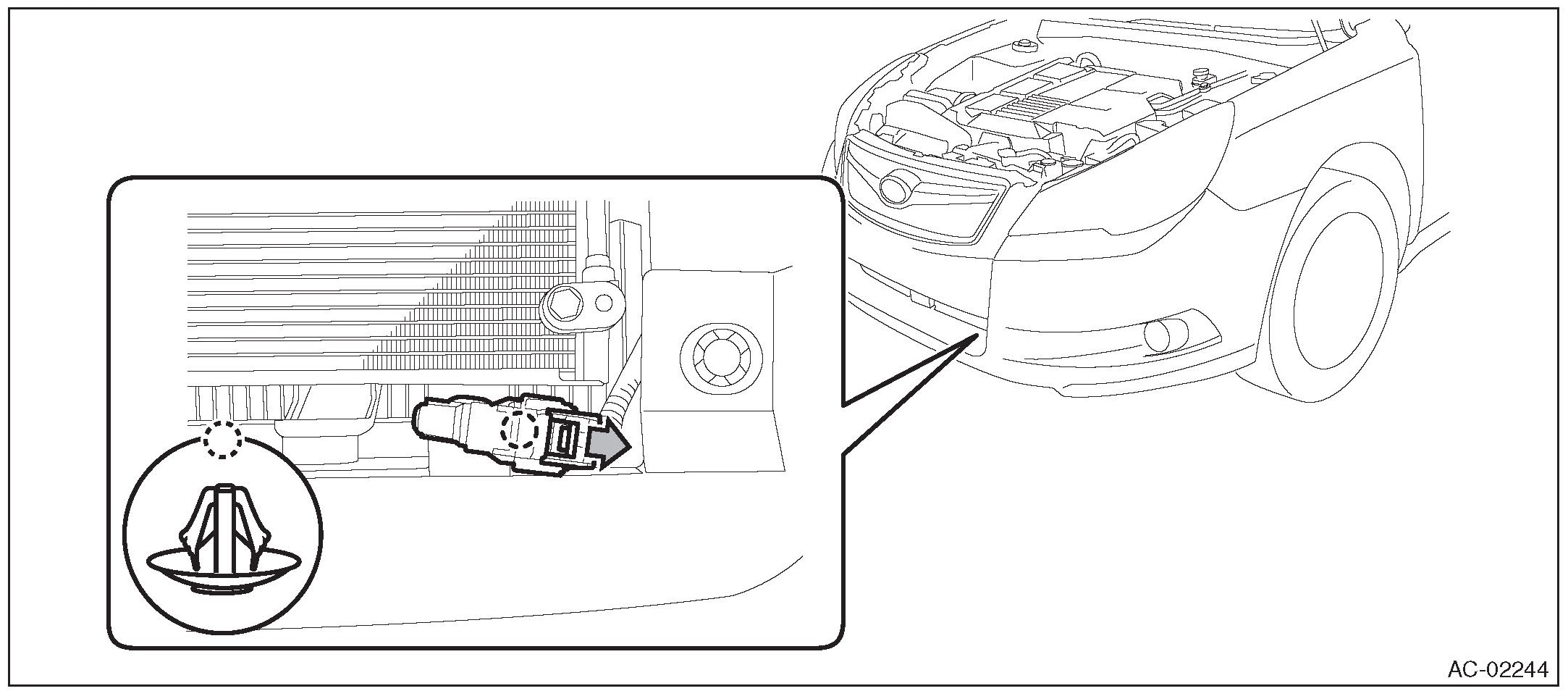

2. Remove the ambient sensor
1. Disconnect the connector.
2. Remove the ambient sensor from the radiator lower panel.






INSTALLATION

Install each part in the reverse order of removal.
