Ignition Lock: Testing and Inspection

Ignition Key Lock

INSPECTION

1. Disconnect the ignition switch connector.

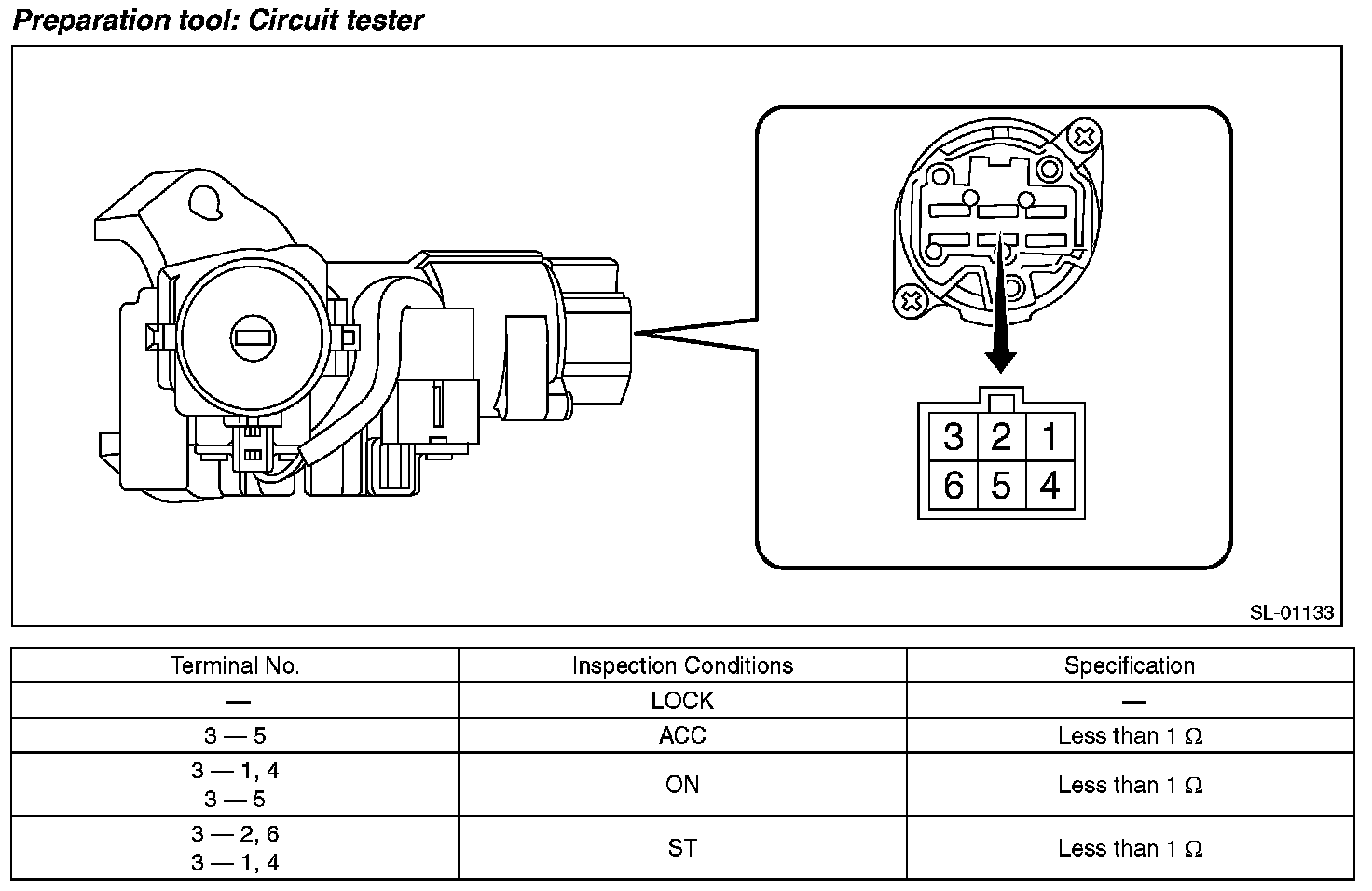

2. Measure the resistance between ignition switch terminals.






3. Replace the ignition switch if the inspection result is not within the standard value.
