CAN Communication Circuit Check
>>
Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

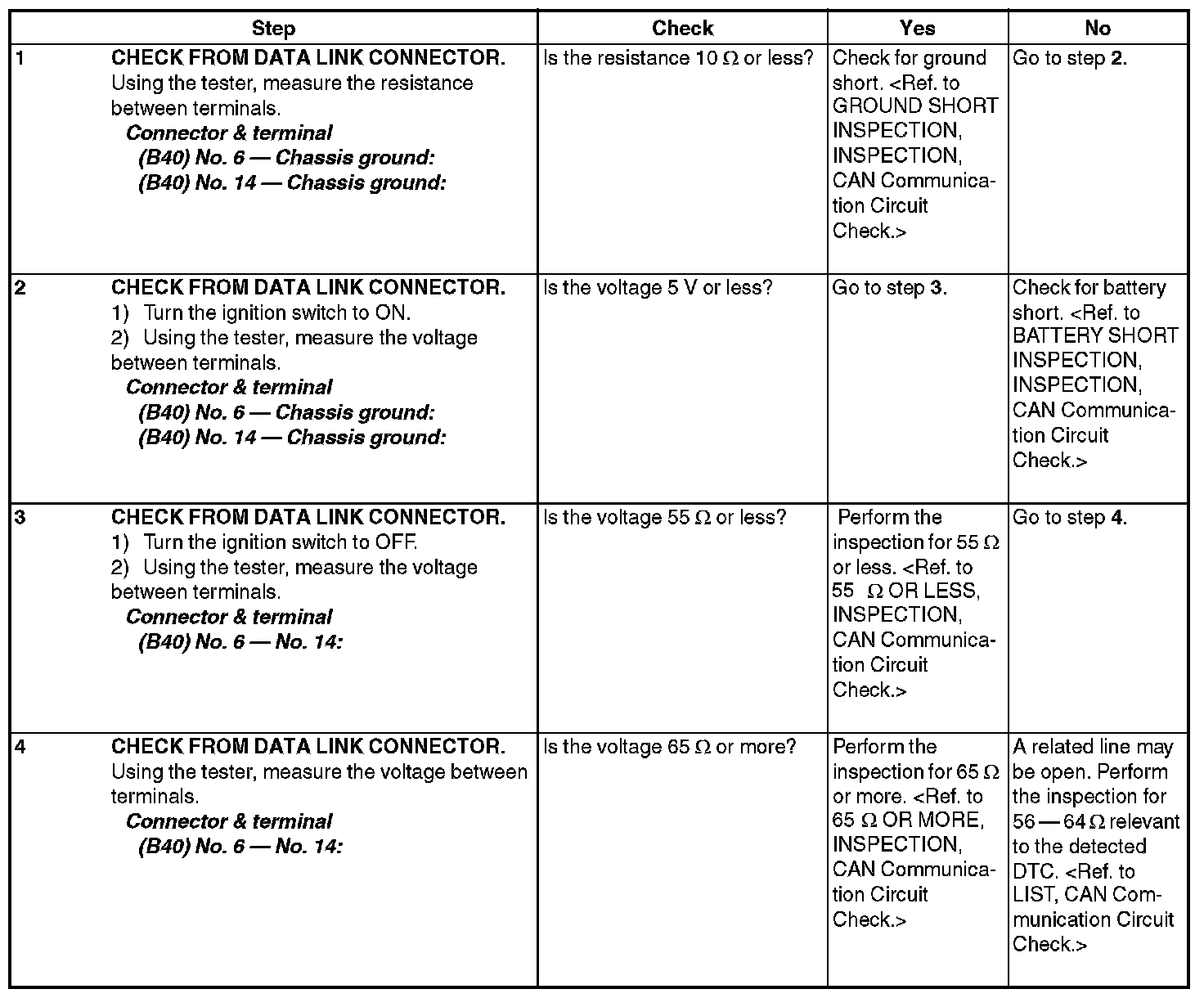

Procedure
CAN Communication Circuit Check
PROCEDURE
Step 1-4:
