Front Suspension
COMPONENT

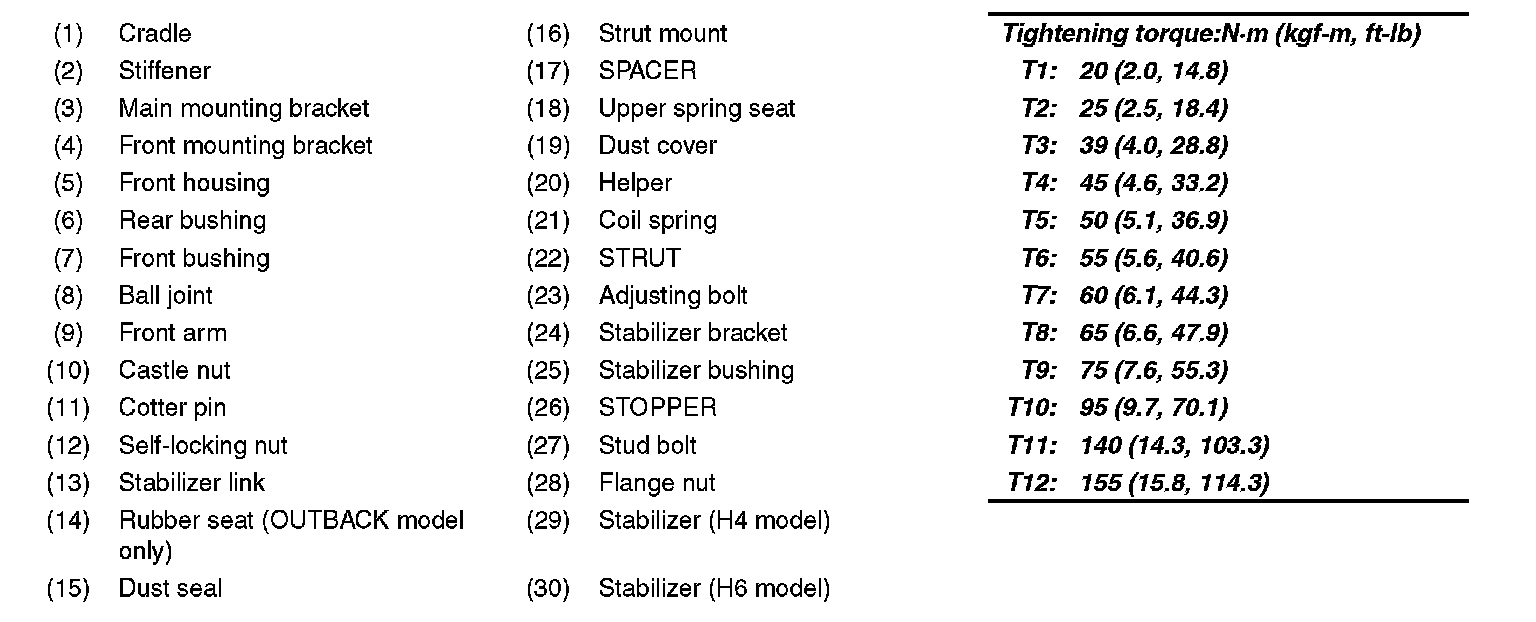

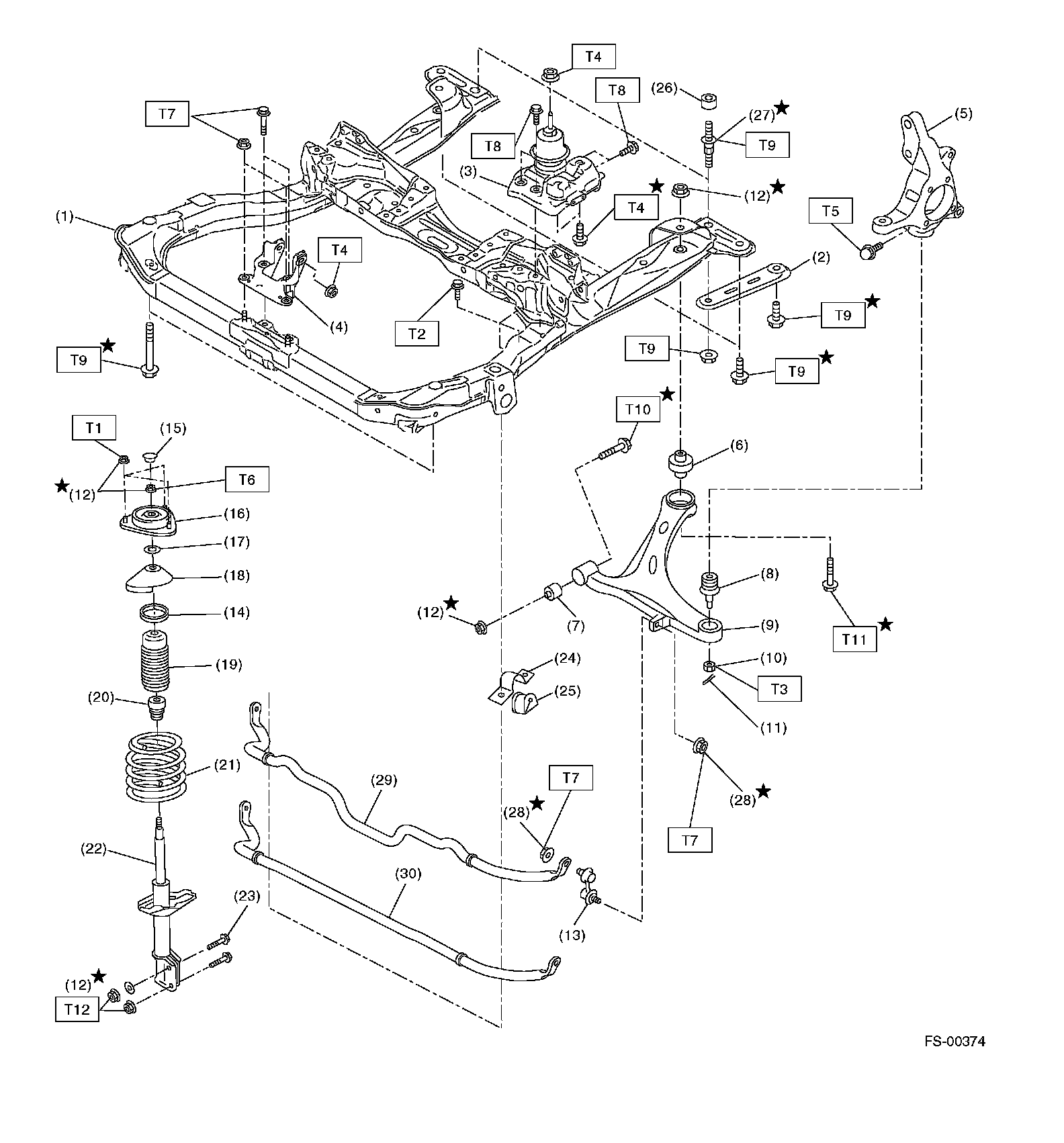

Front Suspension Components (Part 1):
Front Suspension Components (Part 2):
