Alarm Module: Service and Repair
Security Control ModuleREMOVAL
1. Remove the heater and cooling unit.

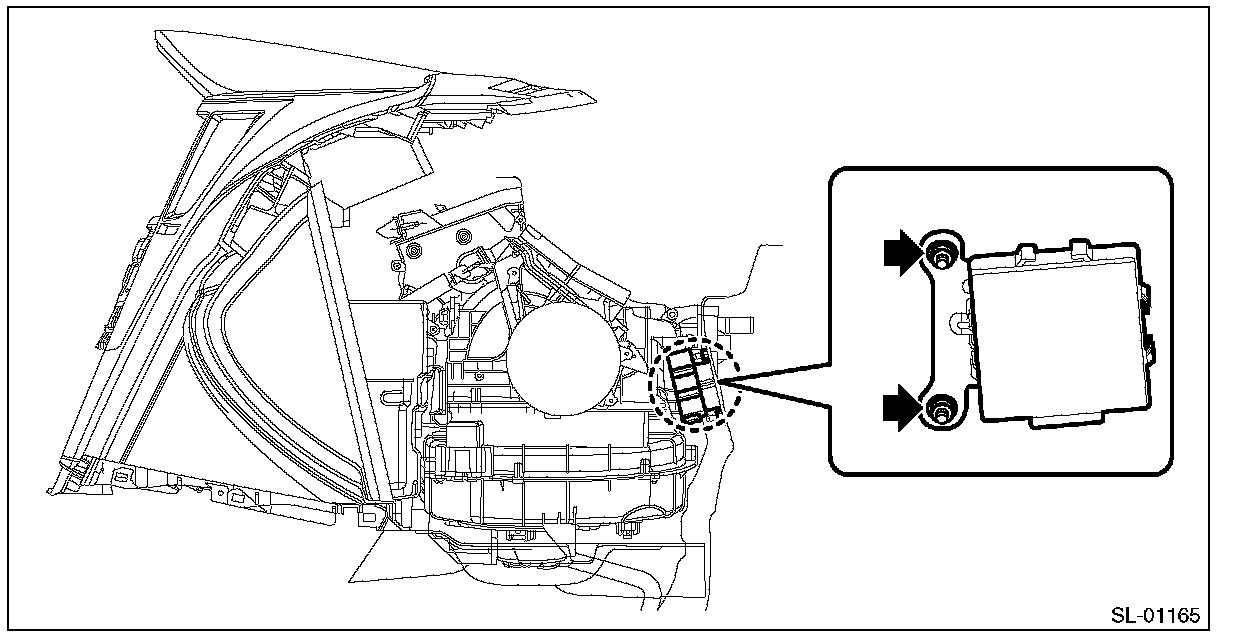

2. Remove the security control module.
1. Disconnect the connector.
2. Remove the nuts, and remove the security control module.
INSTALLATION
Install each part in the reverse order of removal.
Tightening torque:
Security control module: 7.5 N.m (0.76 kgf.m, 5.5 ft.lb)
