Engine Oil: Inspection
CAUTION:
If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emitting smoke or causing a fire.
- Park the vehicle on a level surface.

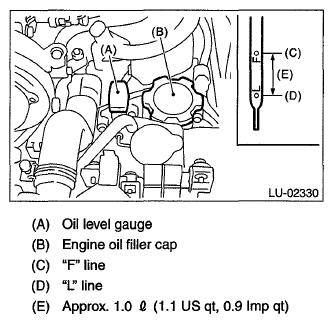

- Remove the oil level gauge and wipe away the oil.
- Reinsert the oil level gauge all the way. Be sure that the oil level gauge is correctly inserted and properly orientated.
- Pull out the oil level gauge again, and check the oil level. If the engine oil level is below "L" line, make sure that there is no oil leakage from the engine, then add oil to rise the level up to the "F" line.
- After turning off the engine, wait a few minutes for the oil to return to the oil pan before checking the oil level.NOTE:
- Just after driving or while the engine is warm, engine oil level may over "F" line. This is caused by thermal expansion of engine oil.
- To prevent overfilling of engine oil, do not add oil above "P" line when the engine is cold.
