3.0 L Model B: Replacement

  1. Replace the belts if cracks, fraying or wear are found.

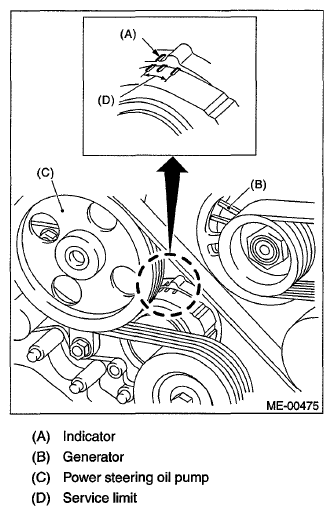

  2. Check that the V-belt automatic belt tensioner indicator (A) is within the range (D).
    Fig 1: Checking V-Belt Automatic Belt Tensioner
    G06333853Courtesy of SUBARU OF AMERICA, INC.
