Rear Differential Mounting System

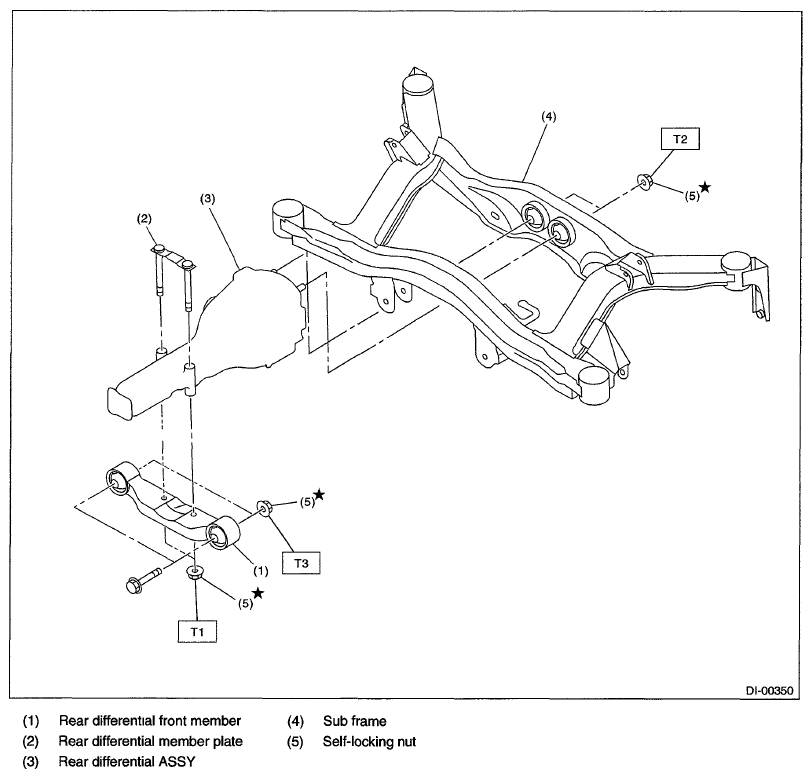

Fig 1: Identifying Rear Differential Mounting System Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 50(5.1,36.9)

T2: 70(7.1,51.6)

T3: 110(11.2,81.1)
