Communication For Initializing Impossible

INSPECTION
COMMUNICATION FOR INITIALIZING IMPOSSIBLE
DETECTING CONDITION: Defective harness connector
TROUBLE SYMPTOM: Communication is impossible between ABS and Subaru Select Monitor.
WIRING DIAGRAM:

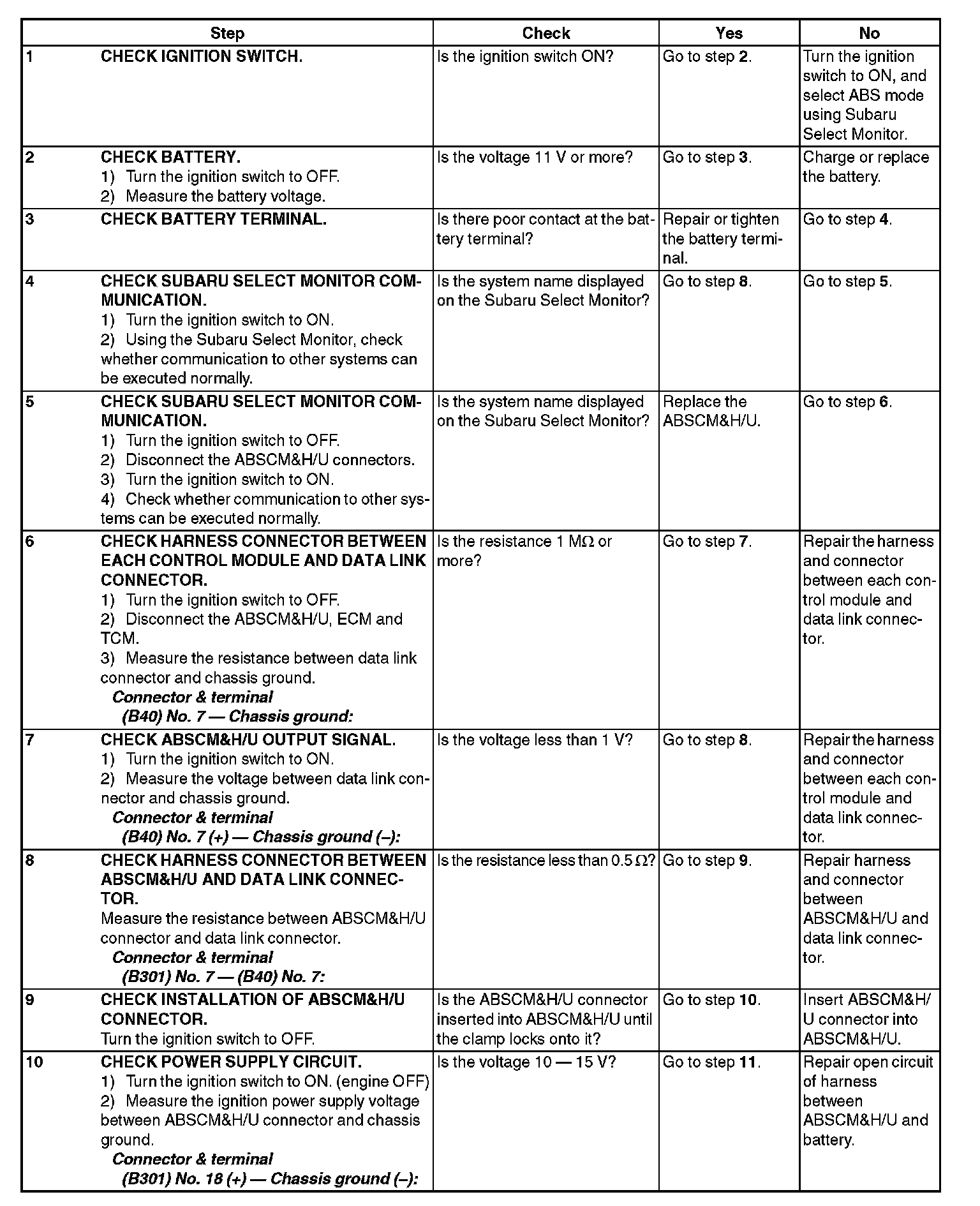

Step 1-Step 10:




Step 11-Step 12:
