Shock Absorber

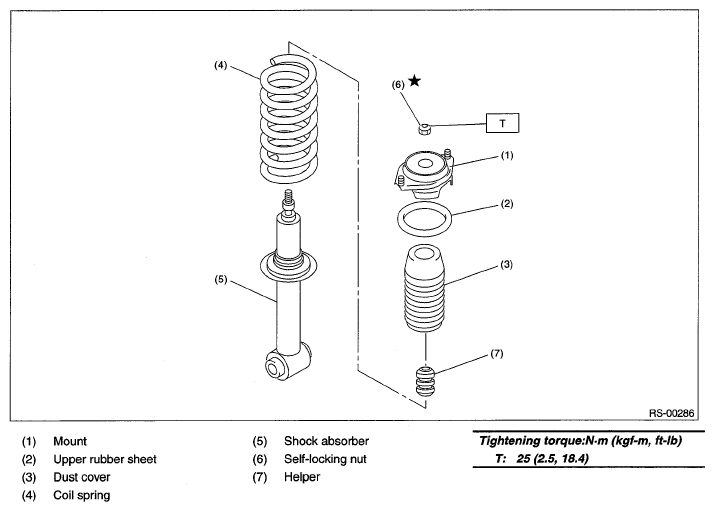

Fig 1: Shock Absorber Replacement Components With Torque Specifications
G05956724Courtesy of SUBARU OF AMERICA, INC.
