Body Sealing: Specification
Used material:
THREE BOND 4101 (004403063)
-: Sealing application locations

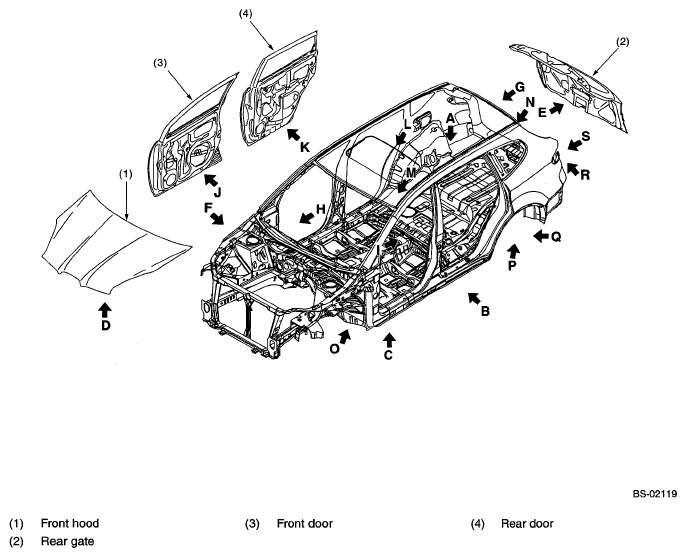

Fig 1: Locating Body Sealing Area
Courtesy of SUBARU OF AMERICA, INC.

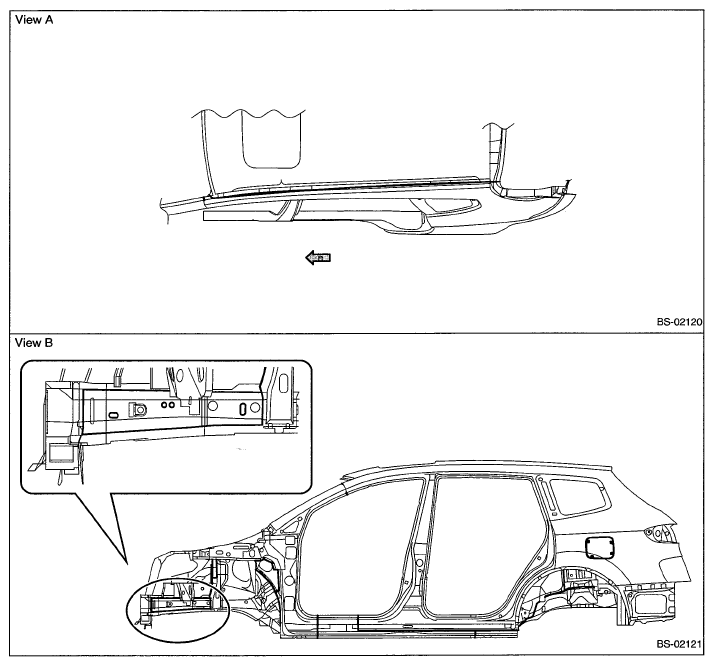

Fig 2: Identifying Body Sealing Area (View A And View B)
Courtesy of SUBARU OF AMERICA, INC.

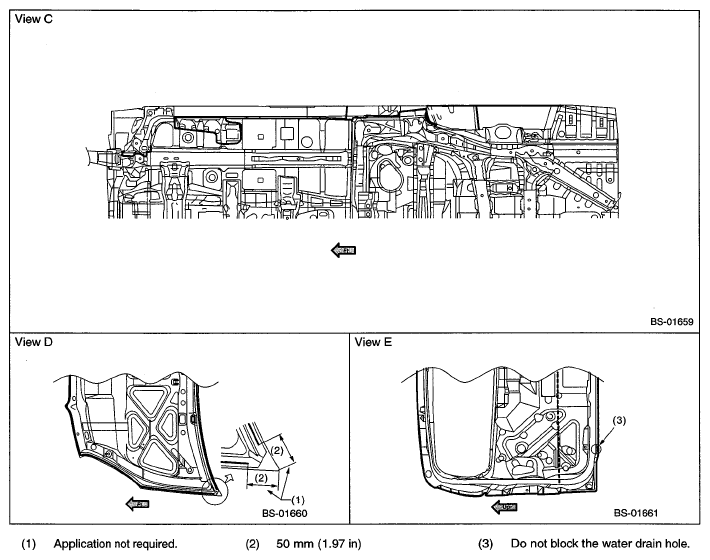

Fig 3: Identifying Body Sealing Area (View C, D And View E)
Courtesy of SUBARU OF AMERICA, INC.

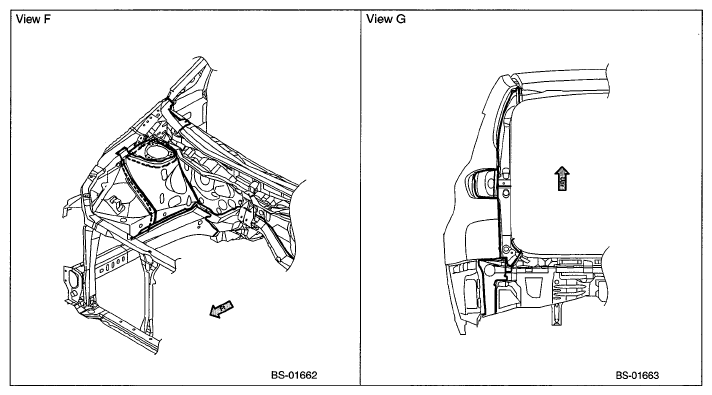

Fig 4: Identifying Body Sealing Area (View F And View G)
Courtesy of SUBARU OF AMERICA, INC.

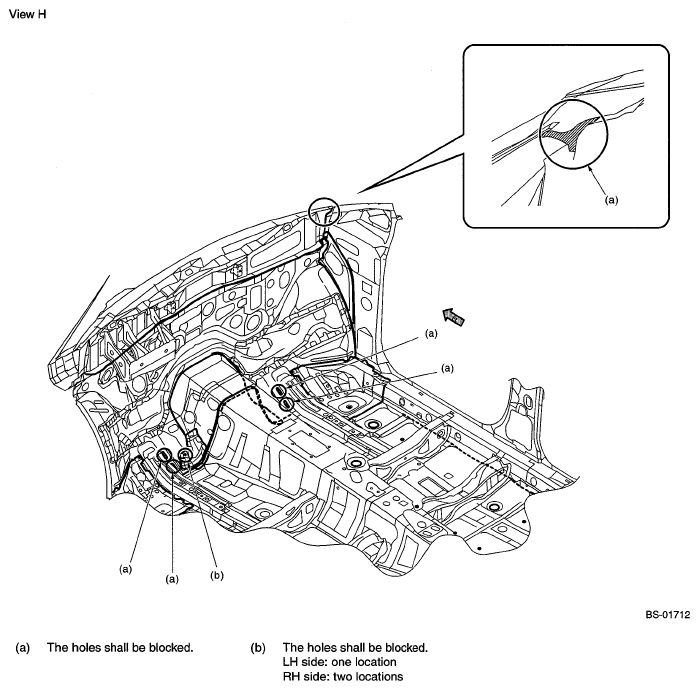

Fig 5: Identifying Body Sealing Area (View H)
Courtesy of SUBARU OF AMERICA, INC.

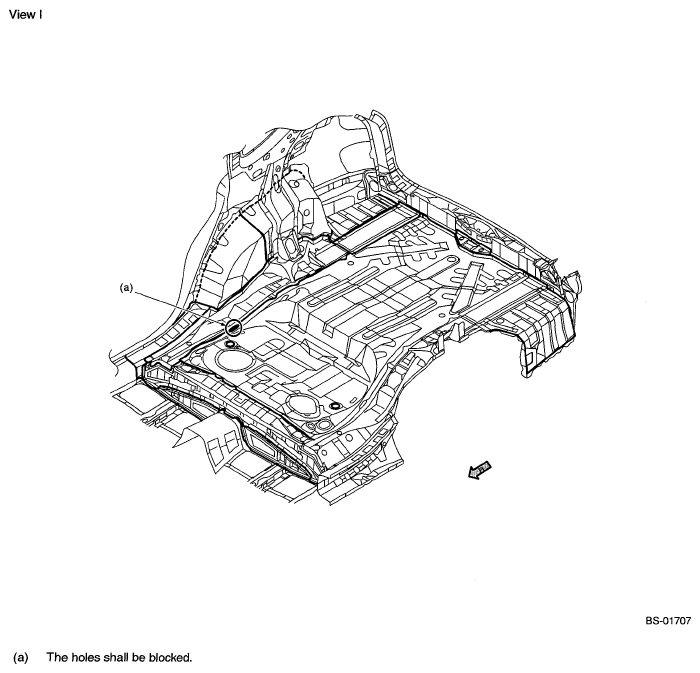

Fig 6: Identifying Body Sealing Area (View I)
Courtesy of SUBARU OF AMERICA, INC.

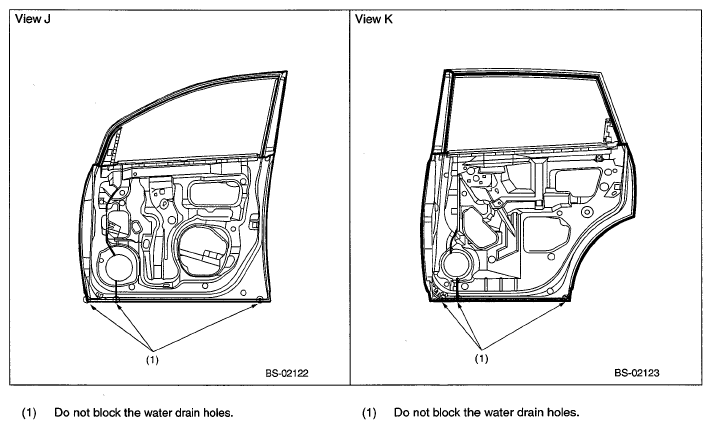

Fig 7: Identifying Body Sealing Area (View J And View K)
Courtesy of SUBARU OF AMERICA, INC.

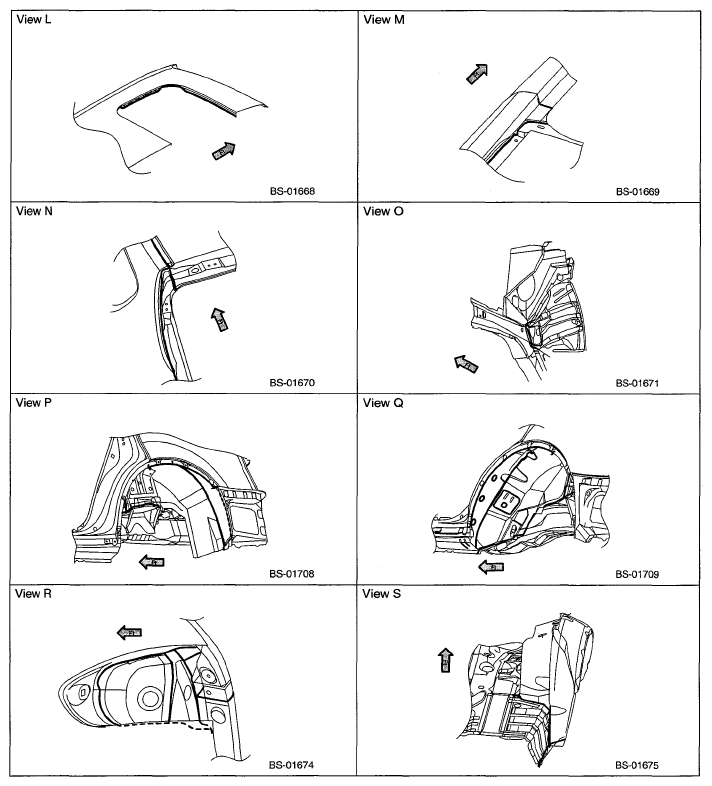

Fig 8: Identifying Body Sealing Area (View L To View S)
